Wi-Fi Antennas - Netscout aircheck G2 User Manual

Regulatory Domain
External Directional Antenna
Frequencies
Connector

Wi-Fi Antennas

Internal Wi-Fi antennas
External directional antenna
External antenna connector
1. External antenna port is receive-only (no transmit).

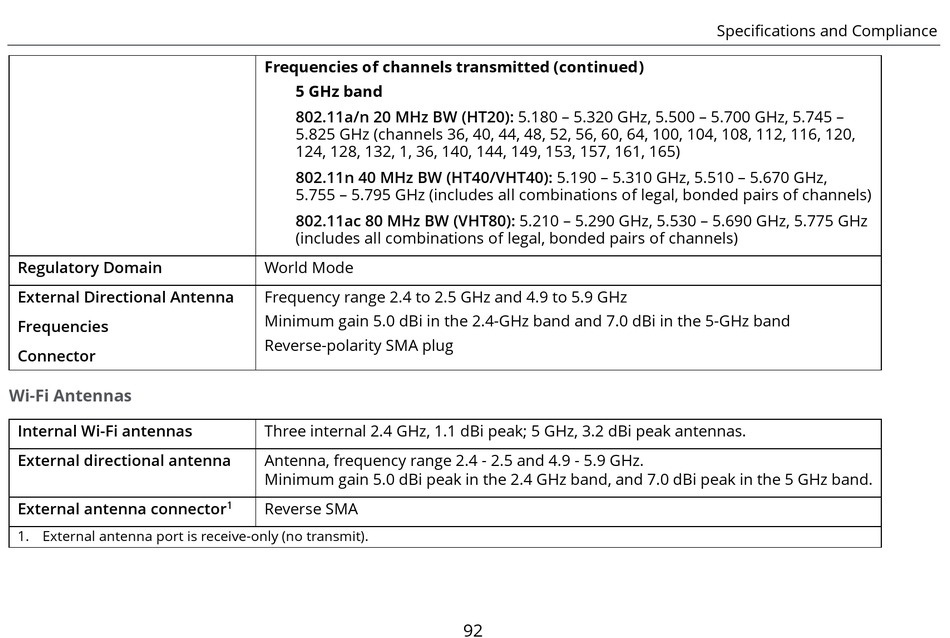

Frequencies of channels transmitted (continued)
5 GHz band
802.11a/n 20 MHz BW (HT20): 5.180 – 5.320 GHz, 5.500 – 5.700 GHz, 5.745 –
5.825 GHz (channels 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120,
124, 128, 132, 1, 36, 140, 144, 149, 153, 157, 161, 165)
802.11n 40 MHz BW (HT40/VHT40): 5.190 – 5.310 GHz, 5.510 – 5.670 GHz,
5.755 – 5.795 GHz (includes all combinations of legal, bonded pairs of channels)
802.11ac 80 MHz BW (VHT80): 5.210 – 5.290 GHz, 5.530 – 5.690 GHz, 5.775 GHz
(includes all combinations of legal, bonded pairs of channels)
World Mode
Frequency range 2.4 to 2.5 GHz and 4.9 to 5.9 GHz
Minimum gain 5.0 dBi in the 2.4-GHz band and 7.0 dBi in the 5-GHz band
Reverse-polarity SMA plug
Three internal 2.4 GHz, 1.1 dBi peak; 5 GHz, 3.2 dBi peak antennas.
Antenna, frequency range 2.4 - 2.5 and 4.9 - 5.9 GHz.
Minimum gain 5.0 dBi peak in the 2.4 GHz band, and 7.0 dBi peak in the 5 GHz band.
Reverse SMA
1
92
Specifications and Compliance
