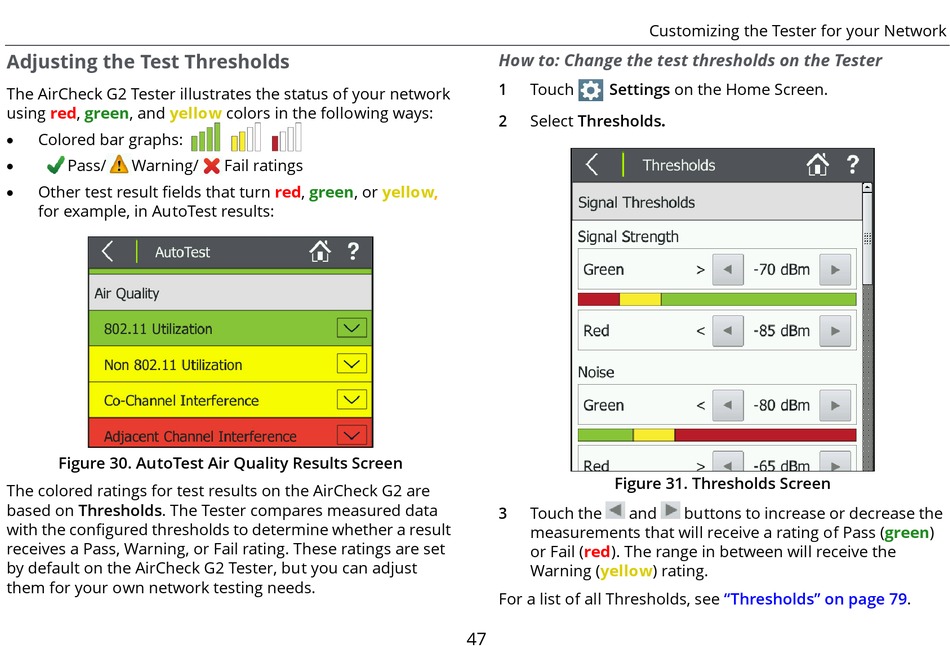

Adjusting the Test Thresholds

The AirCheck G2 Tester illustrates the status of your network
using red, green, and yellow
Colored bar graphs:

Pass/ Warning/

Other test result fields that turn red, green, or

for example, in AutoTest results:
Figure 30. AutoTest Air Quality Results Screen
The colored ratings for test results on the AirCheck G2 are
based on Thresholds. The Tester compares measured data
with the configured thresholds to determine whether a result
receives a Pass, Warning, or Fail rating. These ratings are set
by default on the AirCheck G2 Tester, but you can adjust
them for your own network testing needs.
colors in the following ways:
Fail ratings
yellow,

How to: Change the test thresholds on the Tester

1 Touch Settings on the Home Screen.
2 Select Thresholds.
Figure 31. Thresholds Screen
3 Touch the and
measurements that will receive a rating of Pass (green)
or Fail (red). The range in between will receive the
Warning (yellow) rating.
For a list of all Thresholds, see
47
Customizing the Tester for your Network
buttons to increase or decrease the
"Thresholds" on page 79.
