Reviewing Connect to Network or AP Results

The results fields on this screen change color to indicate the
success or failure of each portion of the Connect to Network
or AP test.
SSID: The network's SSID.
BSSID: The MAC address of the access point that the Tester
uses for the connection.
Link Uptime: The length of time during which the link has
been established.

Connection Established

To expand or collapse the details for a test step, press the
arrow button.
Connect to AP: Indicates whether the Tester was able to
connect to the AP.
Authenticate: Indicates whether the authentication
steps passed.
Exchange packets with AP: Indicates whether the
Tester received packets back from the AP.

IP Address

IP Address: The IP address of the currently established
connection.

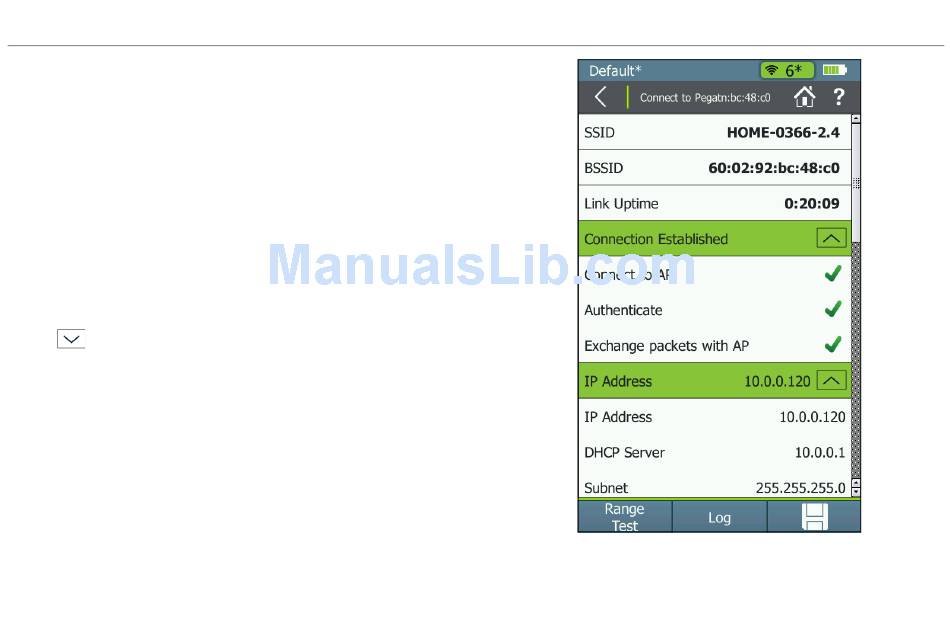

Figure 35. The Connect to AP Test Results
51
Verifying Connectivity and Coverage
