NOTE: When you connect to a network, the Tester usually
connects through the access point that has the highest
Signal-to-Noise Ratio. If the network includes secure and
unsecured access points and security credentials are
available, the Tester tries to connect to the secure access
point that has the highest Signal-to-Noise Ratio. Some
networks use a controller that connects you to the access
point that has the least amount of traffic.

Connection Test Results

The Connection test results indicate whether or not you can
connect to an AP for the configured network at your current
location. The Connection field turns
was successful and red if the connect was unsuccessful.
Touch the down arrow
high level connection diagnostics. These results also receive a
rating based on whether the individual test was successful, or
based on how measurements compare to the configured
thresholds: Pass or Success (green),
or Fail (red)
Connect to AP: Indicates whether the Tester was able to
connect to the AP.
Authenticate: Indicates whether the Tester was able to
authenticate with the AP.
Exchange packets with AP: Indicates whether the Tester
received packets back from the AP.
green if the connection
to the right of Connection to view
Warning (yellow), 
Using AutoTest to Diagnose Your Network Health

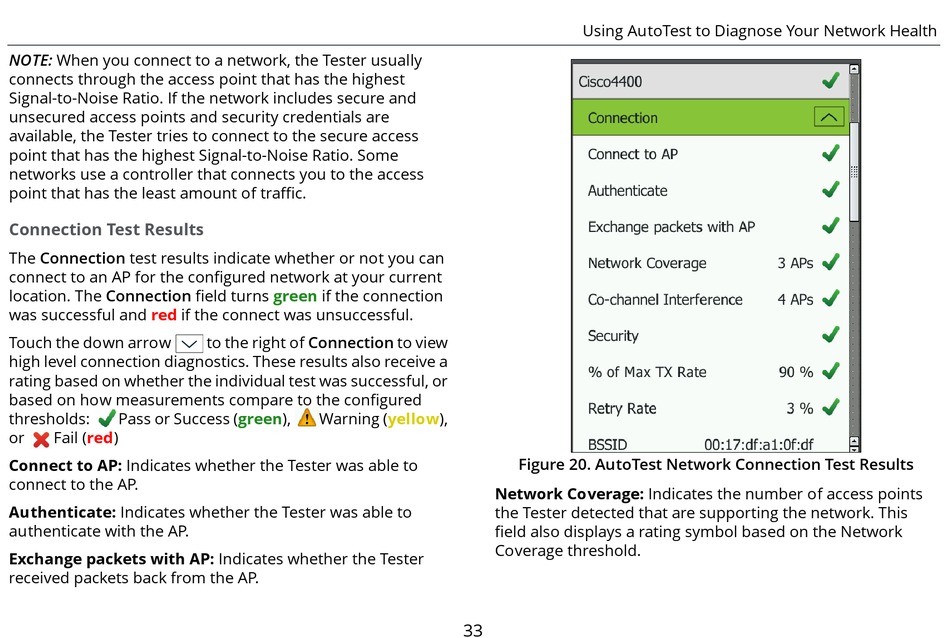

Figure 20. AutoTest Network Connection Test Results
Network Coverage: Indicates the number of access points
the Tester detected that are supporting the network. This
field also displays a rating symbol based on the Network
Coverage threshold.
