The Select Channel Screen
The Select Channel screen offers a close-up view of the
selected channel.

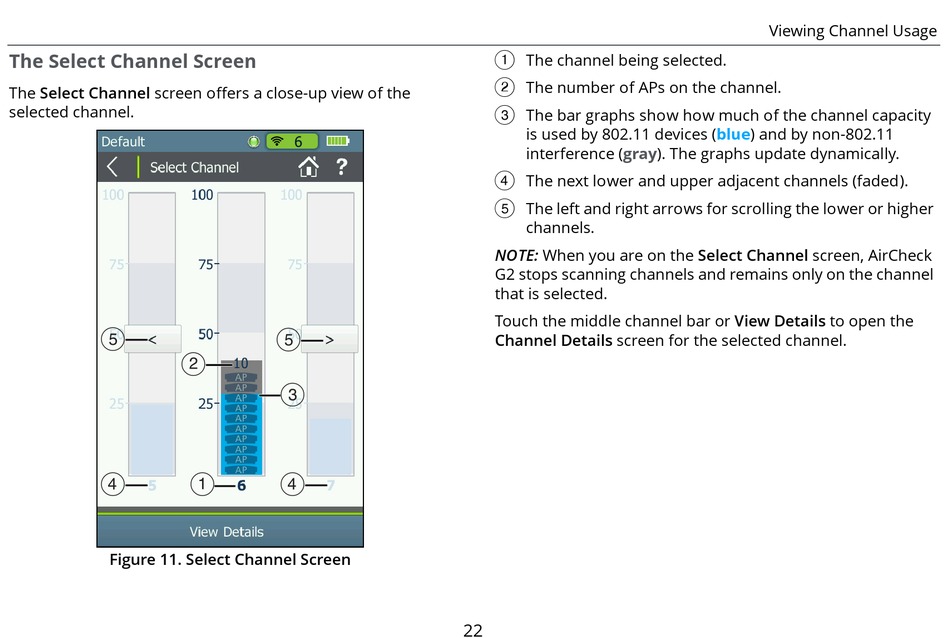

Figure 11. Select Channel Screen
The channel being selected.
The number of APs on the channel.
The bar graphs show how much of the channel capacity
is used by 802.11 devices (blue) and by non-802.11
interference (gray). The graphs update dynamically.
The next lower and upper adjacent channels (faded).
The left and right arrows for scrolling the lower or higher
channels.
NOTE: When you are on the Select Channel screen, AirCheck
G2 stops scanning channels and remains only on the channel
that is selected.
Touch the middle channel bar or View Details to open the
Channel Details screen for the selected channel.
22
Viewing Channel Usage
