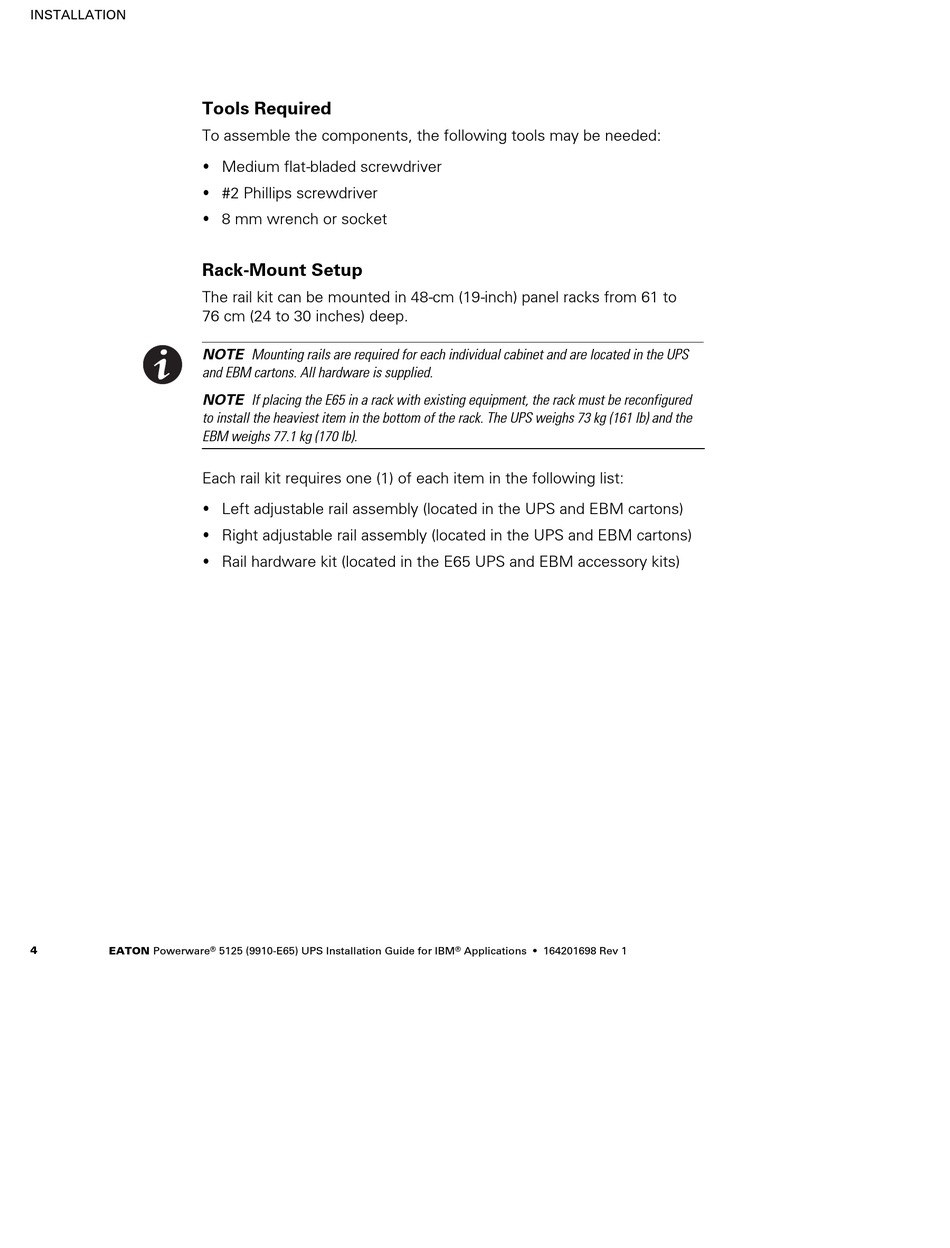

INSTALLATION

Tools Required

To assemble the components, the following tools may be needed:

The rail kit can be mounted in 48-cm (19-inch) panel racks from 61 to

76 cm (24 to 30 inches) deep.

NOTE Mounting rails are required for each individual cabinet and are located in the UPS

and EBM cartons. All hardware is supplied.

NOTE If placing the E65 in a rack with existing equipment, the rack must be reconfigured

to install the heaviest item in the bottom of the rack. The UPS weighs 73 kg (161 lb) and the

EBM weighs 77.1 kg (170 lb).

Each rail kit requires one (1) of each item in the following list:

EATON Powerware

Medium flat-bladed screwdriver

#2 Phillips screwdriver

8 mm wrench or socket

Left adjustable rail assembly (located in the UPS and EBM cartons)

Right adjustable rail assembly (located in the UPS and EBM cartons)

Rail hardware kit (located in the E65 UPS and EBM accessory kits)

5125 (9910-E65) UPS Installation Guide for IBM

Applications

164201698 Rev 1
