HTML Operation, cont'd

Viewing System Status

The System Status page on the Status tab (figure 5-2) provides
an overall view of the MKP's current settings, including the IP
and gateway addresses, the RS-232 port settings, the voltage,
and the connections. Changes to these settings can be made via
the Configuration Web pages, SIS programming, and/or the
MKP front panel.

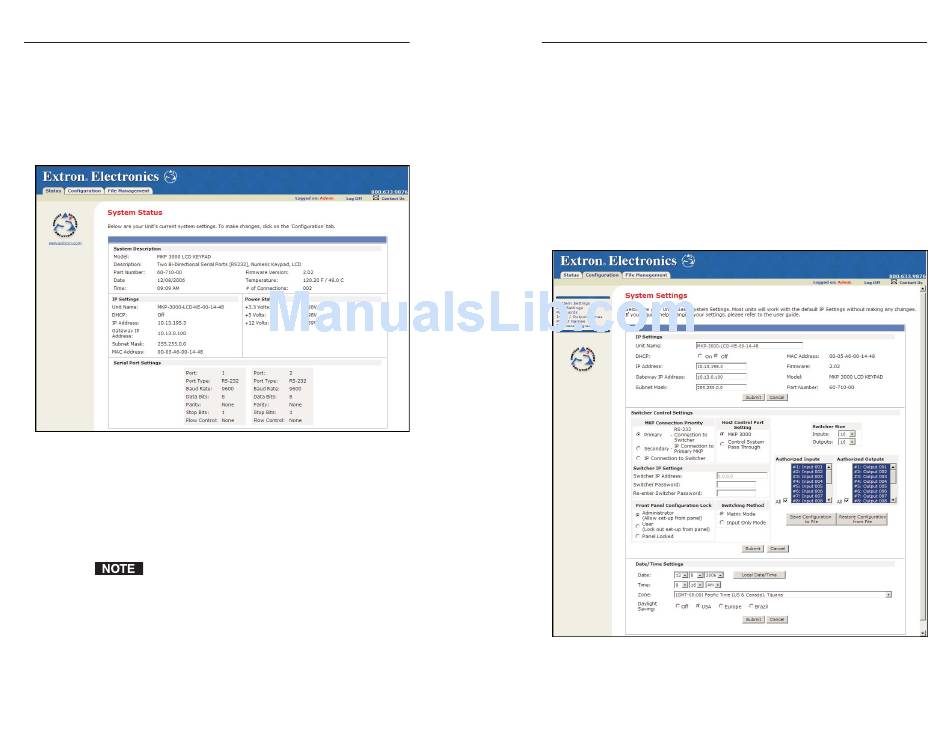

Figure 5-2 — System Status page
The System Status page is the default page that the MKP
downloads when you connect to it. To access the System Status
page from other MKP HTML web pages, click the Status tab.
This page shows only the current status of the MKP 3000. To
change any of this information, select the Configuration tab to
display the System Settings page.
Personnel who have user access can view this page, but
cannot access the Configuration pages; they see only the
Status tab.
www.camboard.de
5-4 MKP 3000 Remote Control Panel • HTML Operation
CAMBOARD Electronics

Using the Configuration Pages

System Settings page

Tel. 07131 911201
Fax 07131 911203
The Configuration tab has six Web pages, which only
administrators can access. Links to them are listed in the
sidebar menu at the left of the configuration screen. The
following sections describe the changes you can make from
these pages.
The System Settings page (figure 5-3) is divided into three
sections: IP Settings, Switcher Control Settings, and Date/Time
Settings. In each section, click Submit to enter your changes.
Clicking the Cancel button in any section restores the previous
settings, if the new values have not been submitted.
Figure 5-3 — System Settings page
ce-info@camboard.de
MKP 3000 Remote Control Panel • HTML Operation 5-5
