SIS ™ Operation

RS-232 Links

The MKP's rear panel 3-pole, 3.5 mm, Host RS-232 connector
(figure 4-1) can be connected to the RS-232 serial port output of
a host device such as a computer running the HyperTerminal
utility, an RS-232 capable PDA, or a control system. This
connection makes software control of the control panel possible.
The rear panel Switcher connector can be connected to the
Remote or RS-232 port of a matrix switcher.
The default protocol for both ports is as follows:
• 9600 baud*
• 8-bit, 1 stop bit
Pin Function
Tx
HOST
Rx
RS-232 TX Transmit data
GND
RX Receive data
Tx
SWITCH
Rx Gnd Signal ground
RS-232
GND

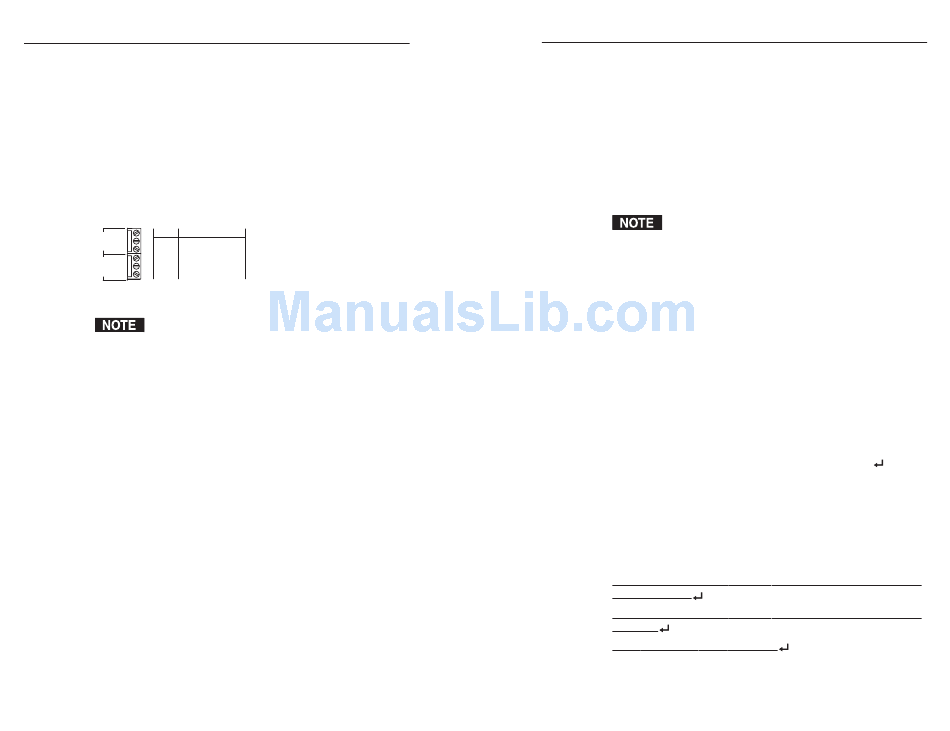

Figure 4-1 — RS-232 connector pin assignments
*The default baud rate is 9600, but this can also be
changed, using the MKP's Web pages, to 19200, 38400,
or 115200 baud to match the switcher's baud rate. See
Port (RS-232) Settings in chapter 5, "HTML
Operation," to change the baud rate.

Routing matrix switcher commands

When the MKP is connected to the matrix switcher via its
Switcher RS-232 port, the MKP can redirect SIS matrix switcher
commands received on the Host RS-232 port to the matrix
switcher.
If the MKP receives a valid matrix switcher SIS command on its
Host RS-232 port, it redirects the command to its Switcher
RS-232 port only if the MKP is set to Pass-through mode. See
the "RS-232 port redirect" command set on page 4-9 or "Host
Control Port settings" in chapter 5, "HTML Operation," to set
the Pass-through mode.
www.camboard.de
4-2 MKP 3000 Remote Control Panel • SIS
• no parity
• no flow control
Tel. 07131 911201
™
Operation
Fax 07131 911203
CAMBOARD Electronics

Ethernet Link

Default IP address

Host-to-MKP Instructions

MKP-Initiated (Unsolicited) Messages

The rear panel LAN connector on the MKP can be connected
directly to a host computer (for setup) or a matrix switcher (for
switcher control), or to an Ethernet LAN or WAN (to which a
host computer, other MKPs, and a matrix switcher can also be
connected).
• Connection directly to a host computer requires a
crossover cable.
• Connection via an Ethernet LAN requires a patch
(straight-through) cable.
See "TP cable termination" in chapter 2, "Installation,"
to create crossover and patch cables.
To access the MKP via the Ethernet port, you need the Extron IP
address. If the address has been changed to an address
comprised of words and characters (DHCP host name), you can
determine the actual numeric IP address using the ping (ICMP)
utility. If the address has not been changed, the factory-
specified default is 192.168.254.253.
The MKP accepts SIS (Simple Instruction Set) commands
through the Host RS-232 and Ethernet ports. SIS commands
consist of one or more characters per command field. They do
not require any special characters to begin or end the command
character sequence. Each MKP response to an SIS command
ends with a carriage return and a line feed (CR/LF =
signals the end of the response character string. A string is one
or more characters.
When a local event such as a front panel operation occurs, the
MKP responds by sending a message to the host. The MKP-
initiated messages are listed below (underlined).
(c) Copyright 2006, Extron Electronics, MKP 3000 LCD Keypad,
Vx.xx, 60-710-00 (for RS-232 connection)
(c) Copyright 2006, Extron Electronics, MKP 3000 LCD Keypad,
60-710-00
Www, DD Mmm YYYY hh:mm:ss
ce-info@camboard.de
MKP 3000 Remote Control Panel • SIS
), which
(for IP connection)
™
Operation 4-3
