Local Operation, cont'd
Press and hold these buttons for
This knob changes the
2 seconds until they light amber.
editable octet/field.
SELECT
INPUT OUTPUT TAKE
2 3 4
OUTPUT
IP
MKP 3000's
INPUT add
IP Address
Sub 255.255
MKP 3000's
net
INPUT
Subnet Mask
MKP 3000's
Gate 000.000
Gateway way 000.000
INPUT
Address
Matrix
Host 000.000
Switcher's
IP
INPUT
IP Address
Passthrough
>
Host Control
INPUT
Setting
OUTPUT
Connection
>
Connection
INPUT
Priority
OUTPUT
Backlight
Backlight
INPUT
>
30 Seconds
Duration
Tie Mode
>
Tie Mode
INPUT
OUTPUT
TAKE

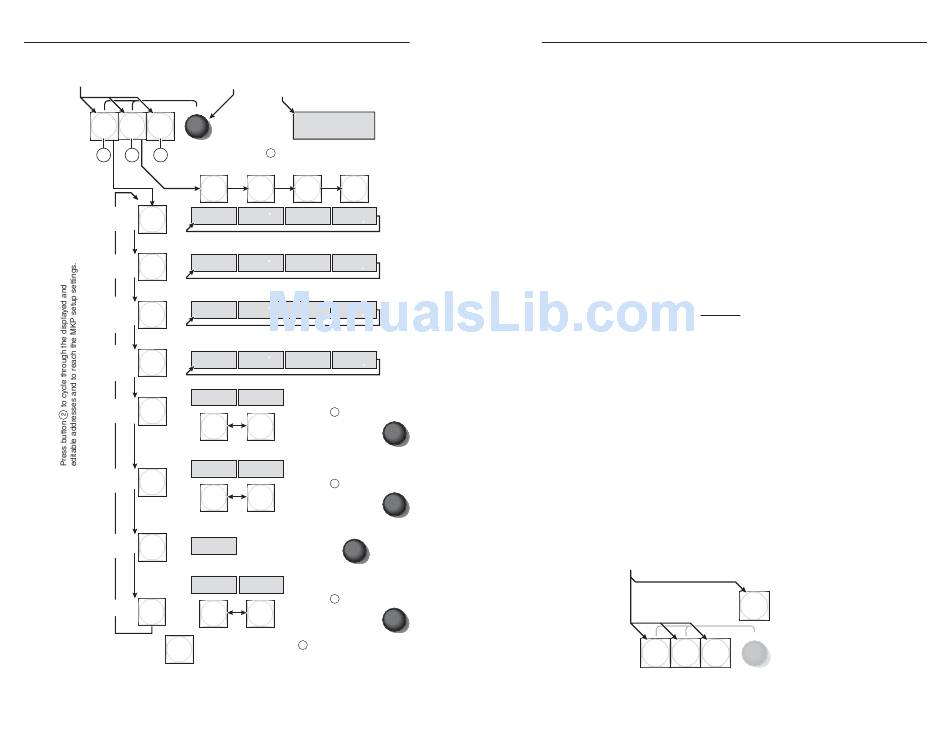

Figure 3-6 — Selecting setup parameters
www.camboard.de
3-14 MKP 3000 Remote Control Panel • Local Operation
The LCD shows MKP 3000's
IP address. The caret (>)
shows the editable octet.
>
IP 192.168
add 254.253
Press button 3 to cycle through the 3
selected ( > ) and editable octets.
OUTPUT OUTPUT OUTPUT
> >
192.168 IP 192.168 IP 192.168 IP 192.168
> >
254.253 add 254.253 add 254.253 add 254.253
> >
Sub 255.255 Sub 255.255 Sub 255.255
> >
000.000 net 000.000 net 000.000 net 000.000
> >
Gate 000.000 Gate 000.000 Gate 000.000
> >
way 000.000 way 000.000 way 000.000
> >
Host 000.000 Host 000.000 Host 000.000
> >
000.000 IP 000.000 IP 000.000 IP 000.000
Passthrough
>
Disabled Enabled
Press button 3 or rotate
SELECT
the Select knob to toggle
OUTPUT
between the Enabled and
Disabled selections.
Connection
>
Primary Secondary
Press button or rotate
3
SELECT
the Select knob to toggle
OUTPUT
between the Primary and
Secondary selections.
Rotate the Select knob to
SELECT
set the LCD backlight to
always on (0) or to timeout
after 001 to 255 seconds.
Tie Mode
>
Matrix Input Only
Press button 3 or rotate
SELECT
the Select knob to toggle
OUTPUT
between the Matrix and
Input Only selections.
Press and release button 4 to execute
all of the settings and exit Set-up mode.
CAMBOARD Electronics

Control panel security lockout (executive mode)

Tel. 07131 911201
Fax 07131 911203
The front panel security lockout limits the MKP's front panel
operation to input selection, output selection, preset selection,
and volume control only, depending on the MKP's mode (IP
address modification is locked).
The MKP 3000 provides the following three levels of front panel
security lockout (executive modes):
Panel Locked mode — All front panel controls are locked.
Selections and setup cannot be performed from the front
panel.
User mode — Front panel operation is limited to input, output,
and preset selection, and volume control. The panel
configuration, IP, and switcher addressing functions are
locked.
Administrator mode (default) — All front panel controls are
available.
For an MKP 3000 without an MKP 10 MAAP connected,
1. Press and hold all four front panel buttons (figure 3-7)
until all four buttons blink and then light amber, and the
LCD displays the name of the executive mode that was
entered (approximately 3 seconds).
•
Administrator mode — The LCD window briefly
displays "Admin Mode," then returns to what was
previously displayed.
•
User mode — The LCD window briefly displays
"User Mode," then returns to what was previously
displayed.
•
Panel Locked mode — The LCD window displays
"Panel Locked" until the executive mode is changed.
2. If necessary, repeat step 1 until the desired executive mode
is entered.
Simultaneously press and hold
all buttons for 3 seconds.
All buttons blink and then light amber. Release the buttons.
I/O
VIDEO
GREEN
AUDIO
RED
SELECT
INPUT OUTPUT TAKE
Figure 3-7 — Control panel lockout

ce-info@camboard.de

MKP 3000 Remote Control Panel • Local Operation 3-15
