Reference Information, cont'd

Mounting and Cabling Specifications

Electrical box cutout

Any standard box that meets the local electrical codes can be
used, but boxes from different manufacturers may have
different size openings. Extron recommends testing the fit of
the MKP inside the electrical box and then placing the box flush
against the mounting surface and tracing the cutout area.

Panel mount cutout templates

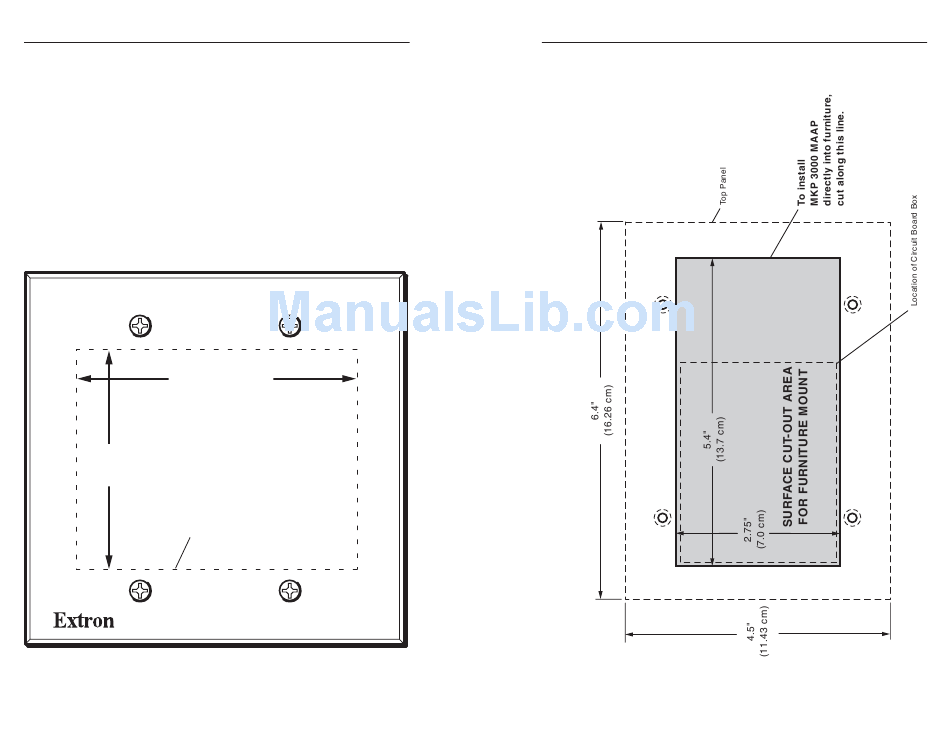

Figure A-1 shows the dimensions for cutting a hole to
accommodate the keypad circuit board for mounting an
MKP 3000 on a flat surface. This type of installation can include
a desk or podium, or a control panel or dashboard, where the
back is protected and does not require an electrical box.
3.38" (8.59 cm)
2.63"
(6.68 cm)
Circuit Board Box
(behind front panel)
Cut-out area should be slightly
larger.
Full Size
Figure A-1 — MKP 3000 panel mount cutout template
www.camboard.de
A-6 MKP 3000 Remote Control Panel • Reference Information
CAMBOARD Electronics
I/O
VOLUME
MKP 3000
Tel. 07131 911201
Fax 07131 911203
Figure A-2 shows the dimensions for cutting a hole to
accommodate the keypad circuit board for mounting an
MKP 3000 MAAP on a flat surface.
Figure A-2 — MKP 3000 MAAP panel mount cutout
template
ce-info@camboard.de
MKP 3000 Remote Control Panel • Reference Information A-7
