Installation, cont'd
3. Mount the MKP's faceplate to the mud ring or wall box
with machine screws (figure 2-5).
P O
W E
R E R
S E
T

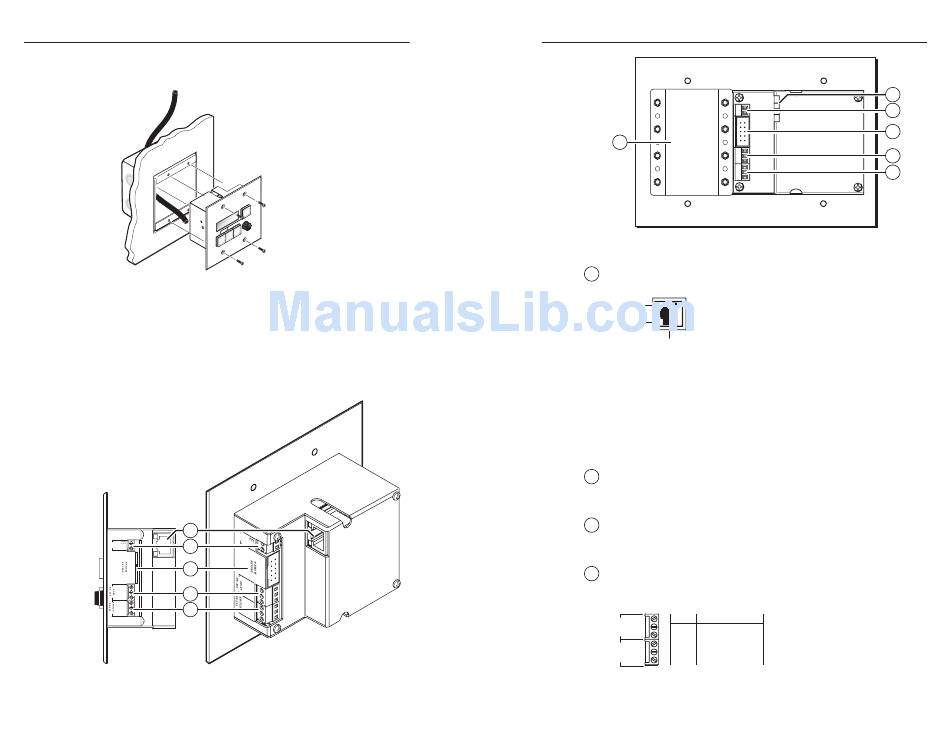

Figure 2-5 — Mounting the MKP to the wall box
4. Reconnect the power supply and restore power.

Rear Panel and Side Panel Connections

All connectors are on the rear or side of the MKP (figure 2-6 and
figure 2-7). These connectors are inaccessible once the MKP is
installed.
1
POWER
.5A MAX
12 V
2
GND
3
Tx
Rx 4
GND
Tx
Rx 5
GND
Figure 2-6 — MKP 3000 rear and side panels
www.camboard.de
2-8 MKP 3000 Remote Control Panel • Installation
I/ O
C T
L E
S E
0
0 0
P 3
M K
n
t r o
E x
P O
W E
.5 A
R
M A
X
1 2
V
G N
D
T x
R x
G N
D
T x
R x
G N
D
CAMBOARD Electronics
Tel. 07131 911201
Fax 07131 911203
6
Figure 2-7 — MKP 3000 MAAP rear panel
LAN (Ethernet) port — If desired, connect a Category (CAT) 5e
1
or higher (network) cable between this
Activity
connector and either the matrix switcher to be
LED
controlled or to an Ethernet local area network
Link
(LAN). See "TP cable termination," later in
LED
this chapter, to properly wire the RJ-45
RJ-45
connector for your application.
Port
Ethernet connection indicators — The Link and Activity LEDs
on the LAN port indicate the status of the Ethernet connection.
The green Link LED indicates that the MKP is properly
connected to an Ethernet LAN. This LED should light steadily.
The yellow Activity LED indicates transmission of data packets
on the RJ-45 connector. This LED should flicker as the MKP
communicates.
Power connector — Plug the included external 12 VDC power
2
supply into this 2-pole captive screw connector. See "Power
supply wiring," on page 2-14, to wire the connector.
Remote Keypad port — If desired, plug the optional
3
MKP 10 MAAP remote keypad into this 10-pin connector, using
the cable included with the MKP 10 MAAP.
Host RS-232 port — If desired, connect a host computer or
4
control system to this 3-pole, 3.5 mm, RS-232 connector
(figure 2-8).
Pin Function
Tx
HOST
Rx
TX Transmit data
RS-232
GND
RX Receive data
Tx
SWITCH
Rx Gnd Signal ground
RS-232
GND
Figure 2-8 — RS-232 connector
