Local Operation, cont'd

Viewing ties

OUTPUT
INPUT TAKE
HOLD
VIEW

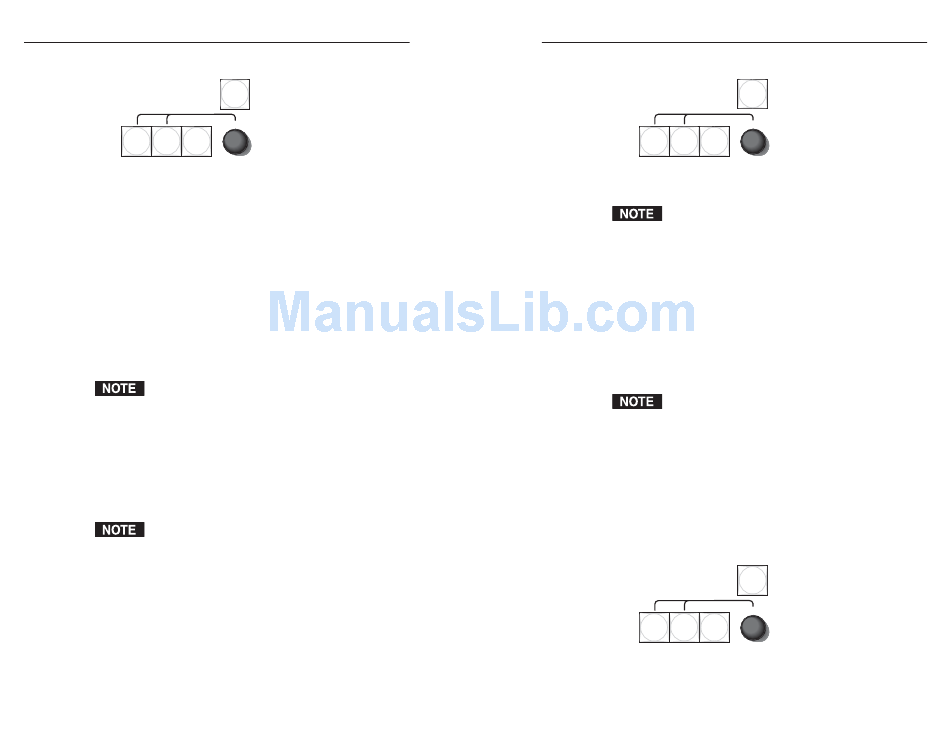

Figure 3-3 — Suggested button labels for view
mode
To view existing ties,
1. Press and hold the Output button until the button lights
green to indicate view mode (approximately
2 seconds), then release the button.
• The I/O button lights green to indicate that the LCD
will show video ties.
• The tied inputs and outputs are locked (unable to be
changed).
• The LCD display shows the output that is currently
selected ( > ).
• The LCD shows the last tie created from the MKP.
Ties created using other devices (other MKPs, a
computer or control system, or the matrix switcher's
front panel) are not shown in the LCD display until the
panel is accessed or the Output button is pressed to
refresh the view.
2. Use the Select knob to scroll through the available outputs.
The LCD display shows the following:
• The outputs as you scroll past them
• The input that is tied to each output as it is displayed
If an optional MKP 10 MAAP keypad is connected, you
can use it in place of the Select knob to select a specific
output whose tied input you want to check. See
"MKP 10 MAAP Operation," later in this chapter.
If desired, press and release the I/O button to set the MKP
3.
to display audio ties.
• The I/O button lights red.
• If desired, view the audio ties as described in step 2.
4. To exit view mode, press and hold the Output button until
the button lights amber to indicate I/O Selection mode
(approximately 2 seconds) .
www.camboard.de
3-8 MKP 3000 Remote Control Panel • Local Operation
VIDEO
GREEN
AUDIO
RED
SELECT
CAMBOARD Electronics

Selecting a preset

Adjusting the audio output

Tel. 07131 911201
Fax 07131 911203
VIDEO
GREEN
AUDIO
RED
SELECT
INPUT
OUTPUT TAKE
HOLD
PRESET
Figure 3-4 — Suggested button labels for preset
mode
• Presets must have been created in the matrix switcher
to be valid. Refer to the user's manual for the
connected matrix switcher to create presets.
• Presets must be named in the MKP 3000 to be
recallable. See chapter 4, "SIS
chapter 5, "HTML Operation," to name presets.
To select (recall) a preset on the MKP 3000,
Press and hold the Input button until the button lights
1.
green to indicate preset mode (approximately 2 seconds) .
• The I/O button becomes unlit.
• The LCD display shows Preset Mode and the name
of the last selected preset (if any).
If no preset has been named in the MKP or if no preset
has been selected, the LCD window shows [Not Set].
2. Use the Select knob to scroll through the available presets
until the LCD display shows the desired preset name. The
Take button starts to blink.
3. Press the Take button to recall the preset.
4. To exit preset mode, press and hold the Input button, until
it lights amber to indicate I/O selection mode
(approximately 2 seconds).
SELECT
HOLD
VOLUME
SELECT
INPUT OUTPUT TAKE
Figure 3-5 — Suggested button labels for audio
volume mode
ce-info@camboard.de
MKP 3000 Remote Control Panel • Local Operation
™
Operation," and
3-9
