Installation
CAUTION
Installation and service must be performed by
authorized personnel only. Extron
recommends that only UL Listed electrical
boxes be used. See "UL Requirements for Wall
Box Installation," on the next page.
The MKP 3000 remote control panel should be installed in a
standard, 2-gang electrical wall box (figure 2-1). The
MKP 3000 MAAP should be installed in a 3-gang wall box.
Figure 2-1 shows the MKP installed in a wall. This could also be in
a desk, a podium, or any other convenient location.
The procedures provided here assume that the electrical wall
boxes and the cables have been installed for the system. "Rear
Panel and Side Panel Connections," starting on page 2-8,
provides guidance for terminating the cables.

MKP Installation Overview

To install an MKP 3000 remote control panel, follow these steps:
Disconnect power from the matrix switcher and all MKPs
1
in the system.
Prepare the site: cut a hole in the wall or furniture, install
2
the electrical box or mounting bracket ("mud ring"), and
prepare the cables. Instructions are included in this
manual and/or with the wall box. See "Preparing the site
and installing the mounting bracket (mud ring) or wall
box," later in this chapter.
Connect the cable between the MKP and the
3
matrix switcher. See "Rear Panel and Side Panel
Connections," on page 2-8.
Connect power cords to the MKP and the matrix switcher.
4
Test the MKP's ability to communicate with the matrix
5
switcher.
Disconnect power from all the devices.
6
Mount the MKP into the electrical box or to the mud ring.
7
If using a wall box, see "Mounting the control panel to the
mounting bracket (mud ring) or wall box," later in this
chapter.
Restore power to the devices.
8
www.camboard.de
2-2 MKP 3000 Remote Control Panel • Installation
CAMBOARD Electronics

UL Requirements for Wall Box Installation

Installation Procedures

Tel. 07131 911201
Fax 07131 911203
The following Underwriters Laboratories (UL) requirements
pertain to the installation of the MKP 3000 into a wall or
furniture (figure 2-1).
I/ O
C T
L E
P O S E
W E
R E R
S E
T
0
0 0
P 3
M K
n
t r o
E x

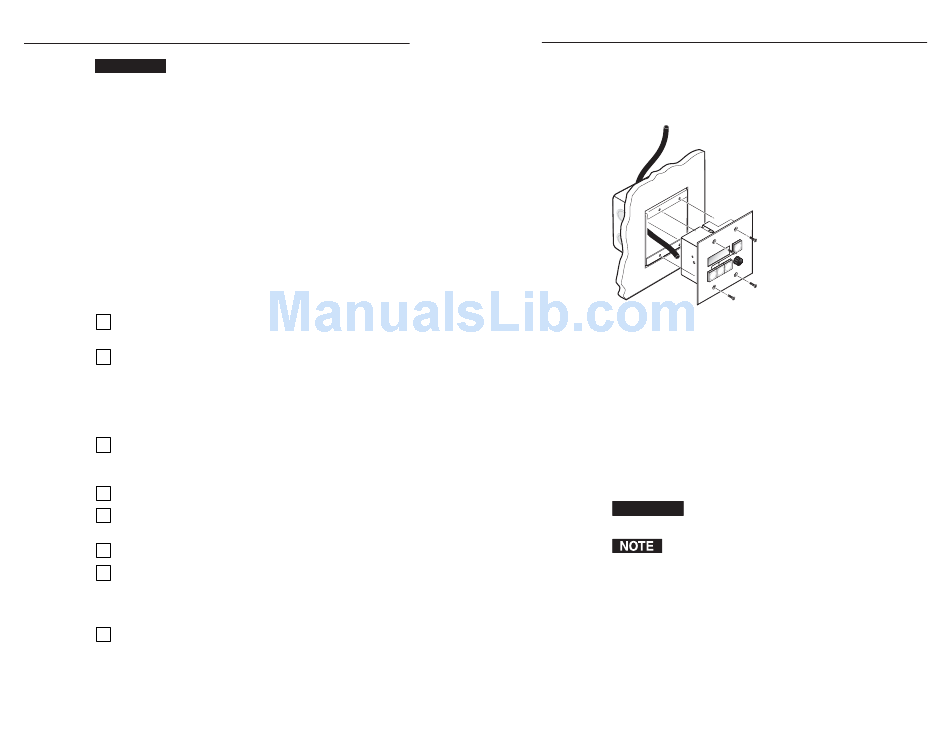

Figure 2-1 — MKP mounted in a wall box
1. These units are not to be connected to a centralized DC
power source or used beyond their rated voltage range.
2. These units must be installed in UL listed junction boxes.
3. These units must be installed with conduit in accordance
with the National Electrical Code.
The MKPs can be mounted into a wall, furniture, or any other
convenient location. Follow the instructions appropriate to the
mounting option you have selected.
CAUTION
The control panel must be installed into a UL
approved electrical wall box.
When installing MKP control panels, you must conform
to all national and local electrical codes.
ce-info@camboard.de
MKP 3000 Remote Control Panel • Installation 2-3
