Local Operation, cont'd
Press and hold the
Reset button while you
apply power to the MKP.
R
The LED flashes
on and off.
R

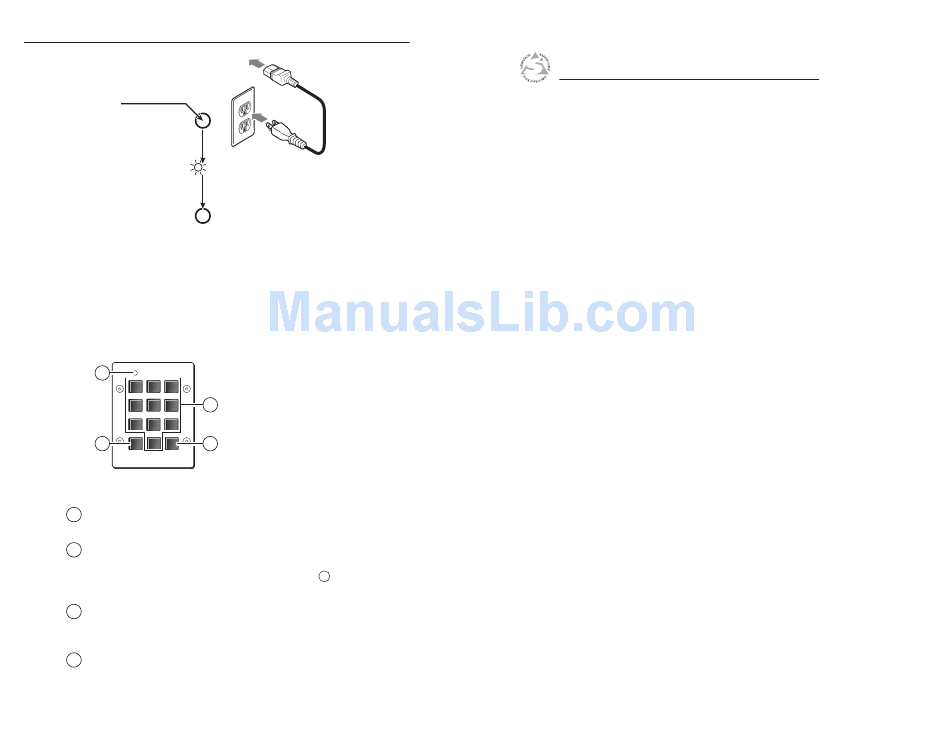

Figure 3-9 — Performing a hard reset

MKP 10 MAAP Operation

When the connected switcher has a large matrix size (up to 128
inputs by 128 outputs), selecting an input or output number by
rotating the Select knob can be inconvenient. The optional
MKP 10 MAAP keypad (figure 3-10) allows rapid input/output
selection.
1
1 2 3
4 5 6
7 8 9
BACK BACK 0 CANCEL CANCEL
4
MKP 10
Figure 3-10 — Optional MKP 10 MAAP keypad
Power LED — When lit, this LED indicates that power is
1
applied to the MKP 10 MAAP.
Cancel key — Press and release the Cancel key to reset the
2
selected input or output value shown in the MKP 3000's LCD
display to 000 before using the numeric keys (
specific value.
Numeric keys — Press and release the numeric keys (0 through
3
9) to enter a specific value as the selected input or output shown
in the MKP 3000's LCD display.
Back key — Press and release the Back key to backspace (erase)
4
the least-significant (rightmost) digit shown in the LCD display.
www.camboard.de
3-18 MKP 3000 Remote Control Panel • Local Operation
Power
Release the Reset button.
3
2
) to enter a
3
CAMBOARD Electronics
MKP 3000 Remote Control Panel
Tel. 07131 911201
Fax 07131 911203
4
Chapter Four
SIS ™ Operation
RS-232 Links
Ethernet Link
Host-to-MKP Instructions
MKP-Initiated (Unsolicited) Messages
MKP Error Responses
Using the Command/Response Table
