Defaulting/Saving/Resetting
Hardware Default
Caution: Be certain that you short the correct pins. Shorting the wrong pins can cause
serious damage to the unit.
Procedure:
Important: You must complete the default within one minute after power-on.
1. Locate and mark the default pins or wires connecting to default pins.
If using an IB-131 Interface, use pins 11 and 7 (figure A-2) on the HOST 25-pin
connector. Results will be more consistent if you attach a push button switch.
Pin 11

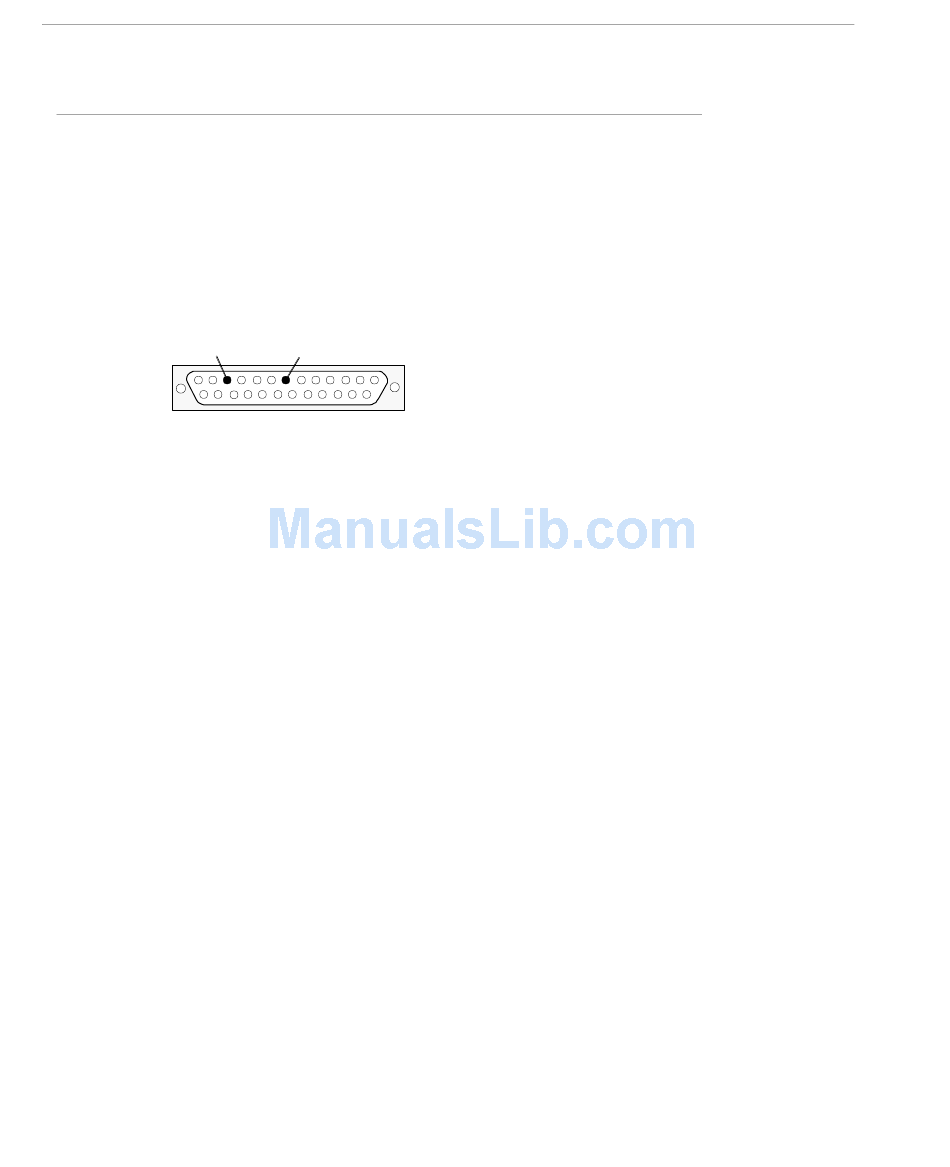

Figure A-2 Host Connector, 25-pin
(on side of IB-131 box)
2. Turn power to the reader ON.
3. Connect pins 11
You should see the amber status light turn ON.
4. Within one second after the amber status light goes OUT, connect the pins briefly
again.
You should see the LED illuminators flash
cessful reset.
Note: If not successful, re-cycle power to the reader before attempting to default
again.
5. Momentarily short the default pins and release. Watch the LED. After it flashes
OFF, short the default pins again.
A-16
MS-3 CCD Reader User's Manual
Pin 7
and 7 on the 25-pin Host connector of the IB-131.
OFF and turn back ON, indicating a suc-
