Appendix C — Connectivity
Standalone Setup with IC-332 and IB-131
In this configuration the IC-332
transforms incoming 10 to 28
VDC to 5VDC for the MS-3 CCD
reader's use.
• (1) MS-3 CCD reader.
• (2) IC-332 interface con-
verter, FIS-0001-0035G.
• (3) IB-131 Interface box,
P/N 99-000018-01.
• (4) Host computer.
• (5) Null modem configuration
cable, 61-300026-03,
DB-25 plug to DB-9 socket,
6 ft.
• (6) Power supply, 97-
100004-15 (90-264 VAC,
24VDC).
• (7) Optional object detector
P/N 99-000017-01 is shown
here.
IC-332 Interface Converter
5
15
3.08"
(78.2 mm)
1
4
1
6
(plug)
5
10
(plug)
15
3
5
6

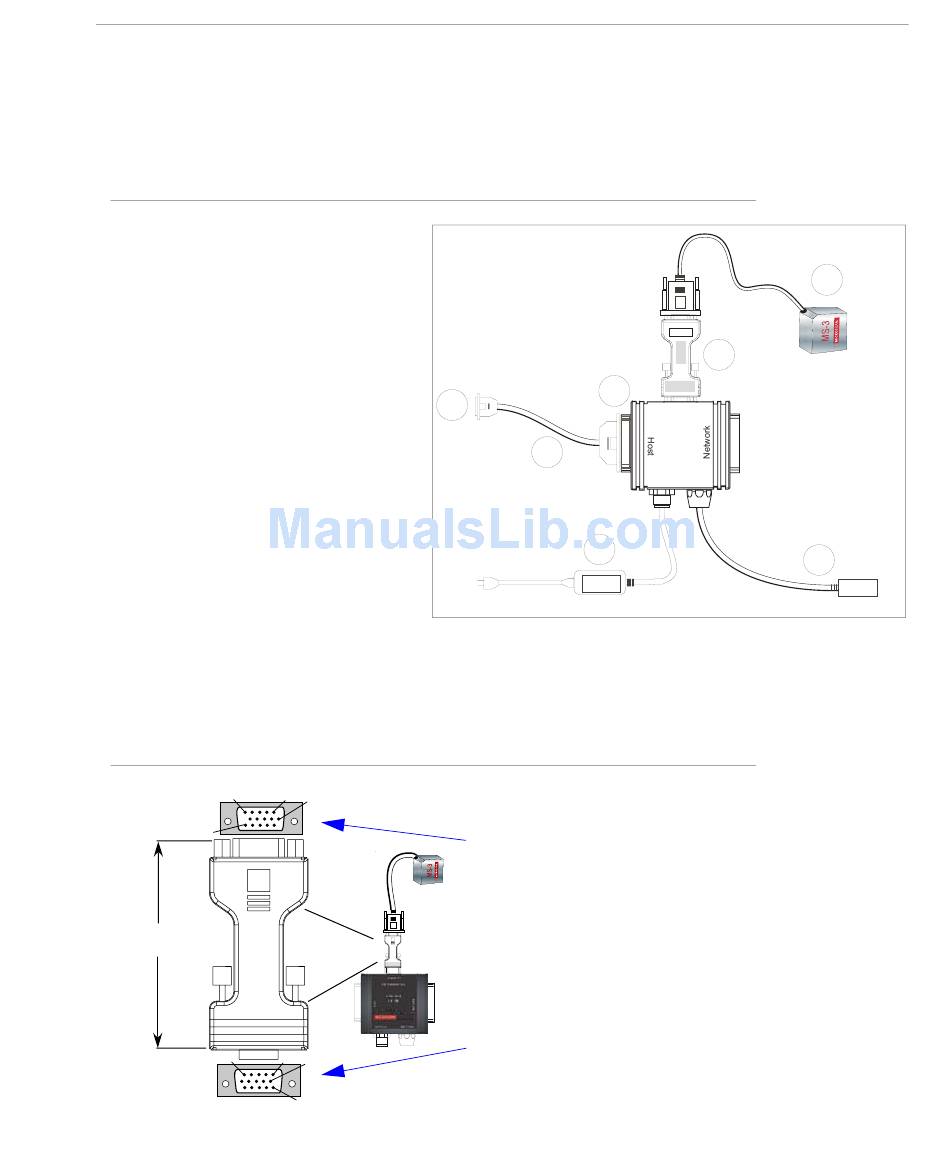

Figure A-4 MS-3 CCD/IB-131 Typical Setup
"READER" connector to MS-3 (with fixed nuts). See
Figure A-5, IC-332 READER Pinouts
"EXTERNAL" Connector to IB-131 (with thumbscrews).
See Figure A-6, IC-332 EXTERNAL Pinouts (to IB-
131)
MS-3 CCD Reader User's Manual
Appendices
1
2
Scanner
7
A-5
