Step 4 — Autoconnect

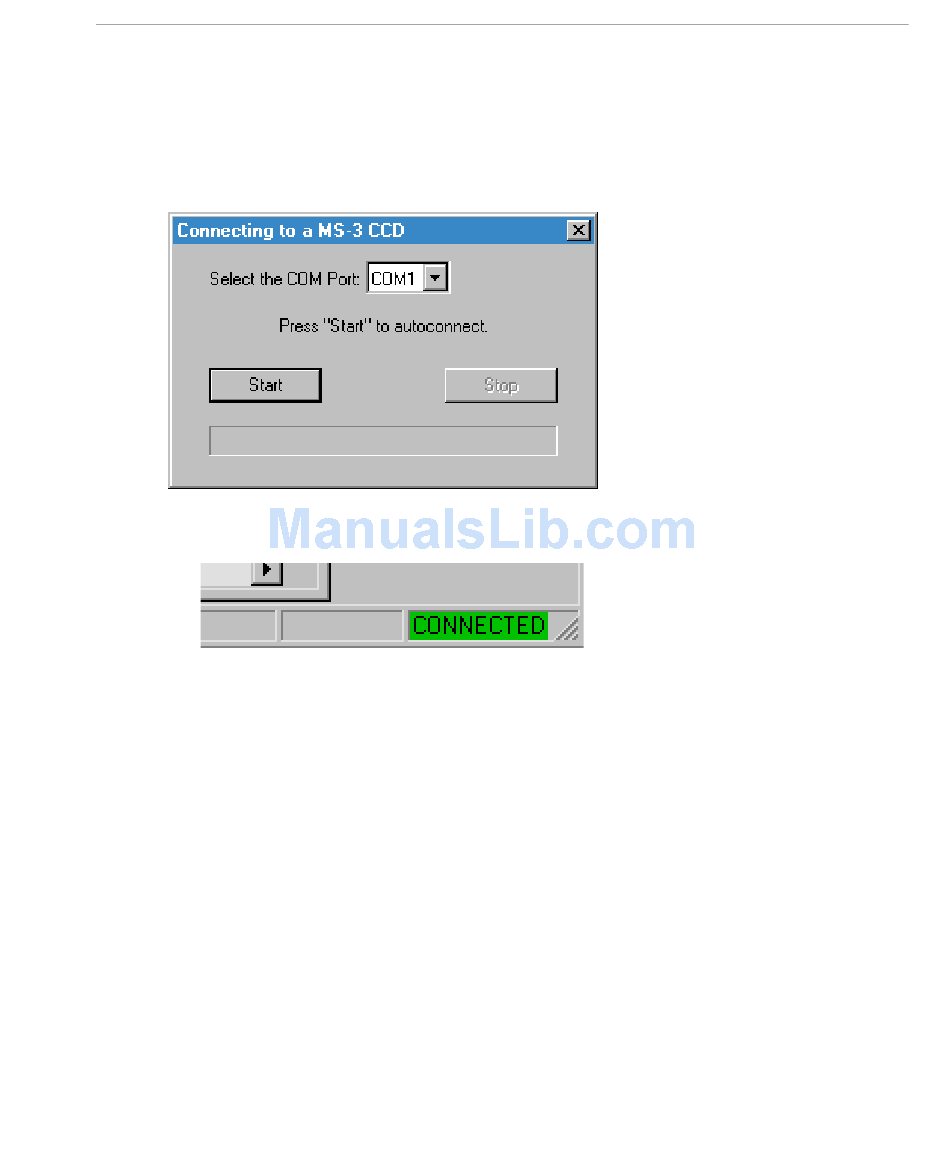

1. In the Connecting to... dialog, if your communications port is not the default

COM1, use the pull down arrow to change your communications port.

2. Click the

Start

When connected, the CONNECTED message will appear in a green box in the sta-

tus bar on the bottom right of the dialog.

3. If connection fails, enable a different Com port, check connections, and try again.

Tip: If you do not see either the CONNECTED or DISCONNECTED message at the bot-

tom of your dialog, try expanding the ESP window horizontally.

Important: When you connect to the reader, the reader's settings will be loaded into

ESP.

button.

Chapter 1 Quick Start

MS-3 CCD Reader User's Manual

1-5
