Step 1 — Connect the System
Caution: If using your own power supply, be certain that it is wired correctly and sup-
ply voltage is 10 to 28 VDC. Incorrect wiring or voltage can cause software or equip-
ment failures.
If connecting to a host with an IB-131 Interface box, you will need the following:
a
Item Part Number
1 FIS-0003-1XXXG
2 FIS-0001-0035G
3 99-000018-01
4
5 61-300026-03
97-100004-15
6
(90-264 VAC, 24VDC)
7 99-000017-01
a. See figure 1-1
To connect the system, do the following:
1. Connect the reader (1) to the
"READER" connector on the IC-332
interface converter (2) using the
attached 3-foot cable.
2. Connect the IC-332 directly to the
"READER" 15 pin connector on the
IB-131 (3).
3. Connect the host computer (4) to
the IB-131 "HOST" 25-pin connec-
tor via the null modem cable (5).
4. Connect power supply (6) to the
IB-131 "POWER" connector.
5. Apply power to the system.
Caution:
• Be sure all cables are connected
BEFORE applying power.
• Always power down BEFORE dis-
connecting any cables.
1. Since power supply is included in the single cabling assembly, the reader cable should not
exceed 3 feet. RS-232 cabling from the IB-131 to the host can be up to 47 feet provided it does
not include power input
2. If using your own null modem RS-232 host cable, be certain that the host's TxD connects to the
reader's RxD and the reader's TxD connects to the host's RxD.
1-2
MS-3 CCD Reader User's Manual
MS-3 CCD
IC-332 Interface converter
IB-131 Interface box
Host computer
Null modem configuration cable
Power supply
Optional object detector
for diagram of system.
1
2
Description
3
4
Scanner
5
6

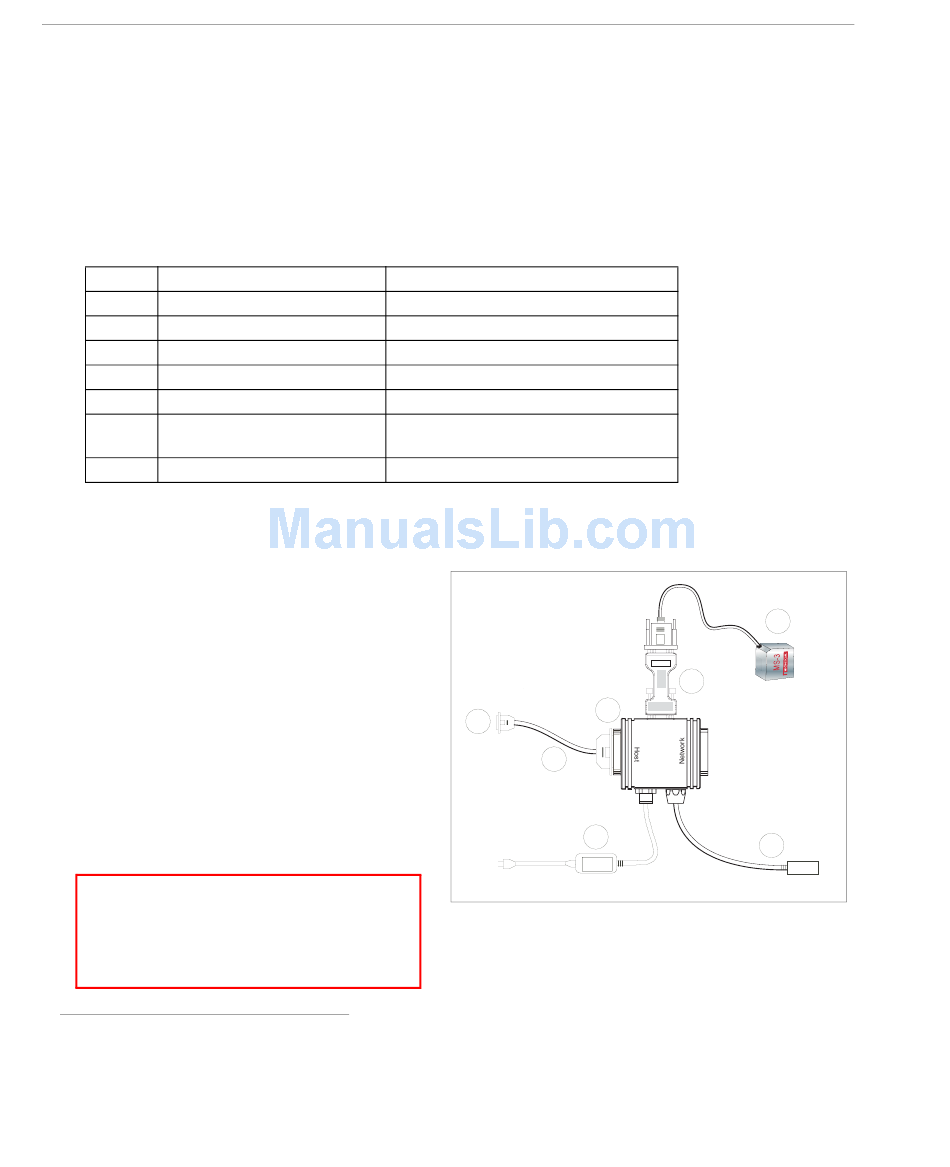

Figure 1-1 Hardware Connections

1
2
7
