Serial Communication Programs
You can send serial commands from your
terminal window in ESP. You can also use a
terminal program such as Hyperterminal to
send serial commands from your PC to the
reader.
From your PC host computer, you can ini-
tiate communications with the reader by
with a terminal communications program
such as Hyperterminal™ provided in the
Windows™ operating system.
In order to communicate with the reader,
you will need to use the following commu-
nications settings:
Baud = 9600
Parity = Even
Stop Bits = One
Data Bits = Seven
Flow Control = None
<K484, >
status
<K483, >
status
<K482, >
status
<K450, 0,symbology identifier status>
Format

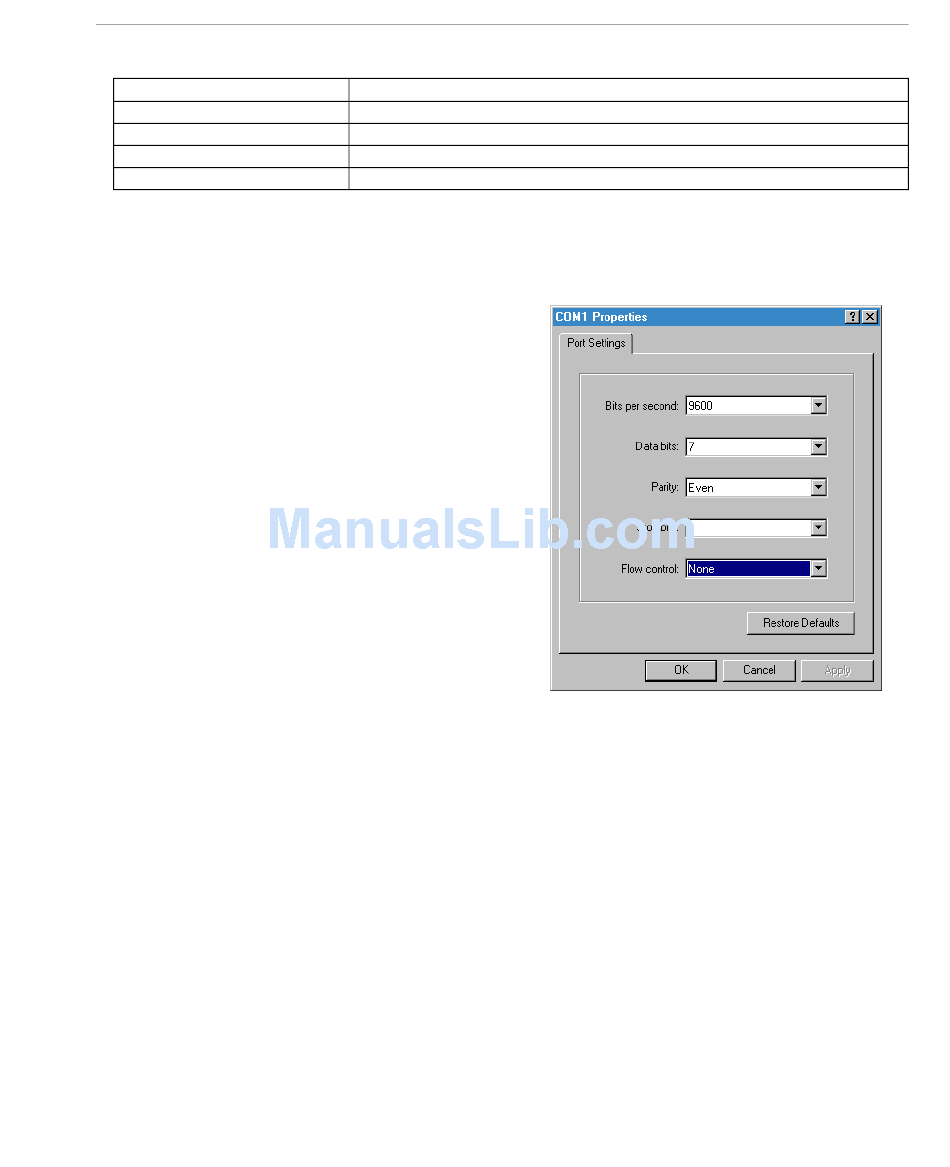

Figure A-8 Hyperterminal Dialog
