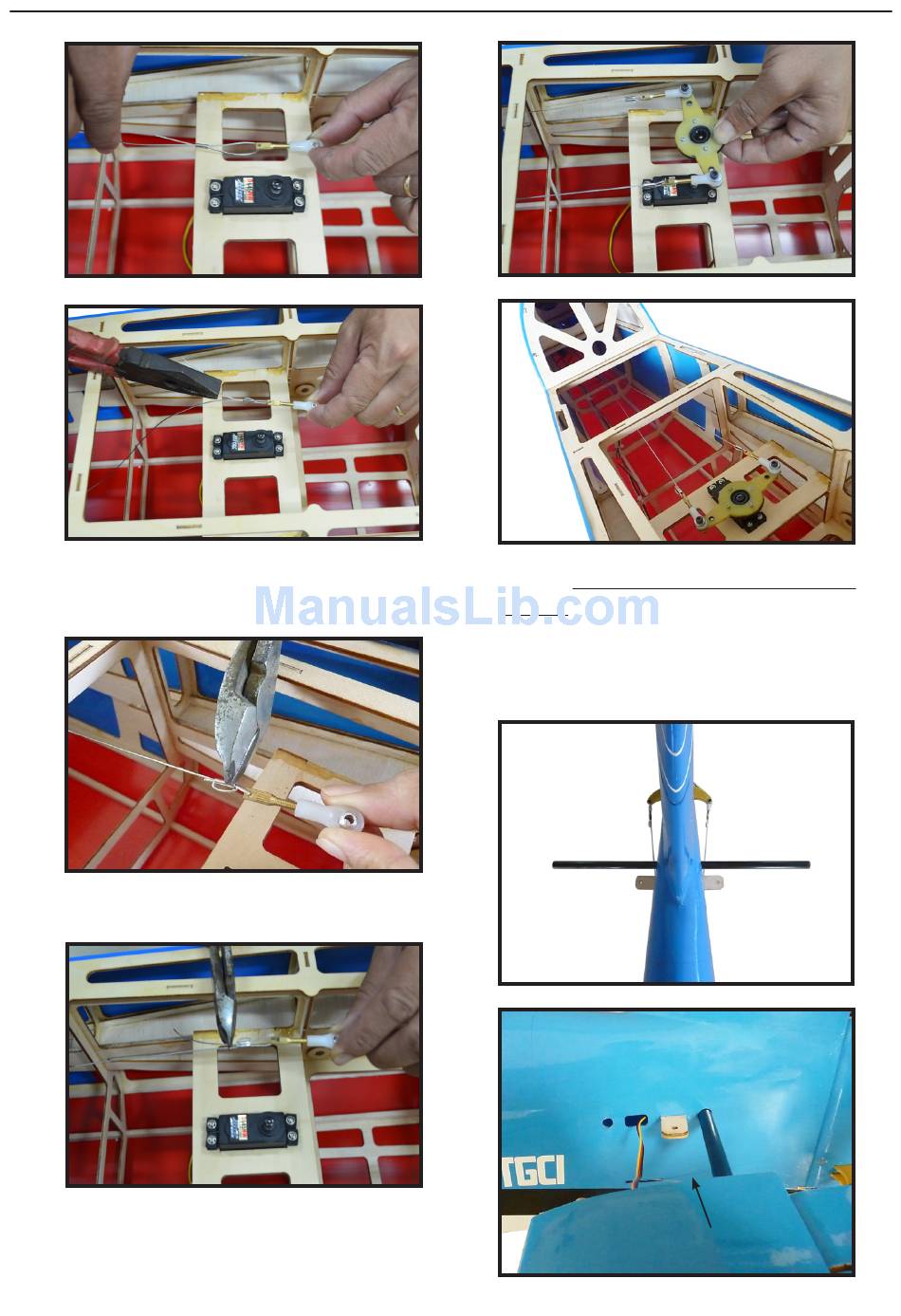

12) Crimp the brass swage tube with a
crimping tool or pliers.
13) Cut off excess cable as shown.
14) Attach ball links to the rudder servo
arm and then attach the servo arm to the
rudder servo as shown.
NOTE : Cable is installed crossed " X", not
parallel.
15) Attach the aluminum tube to com-
bine two elevator as below pictures.
11
