BASIC OPERATION

Before first applying power
Before first applying power, make sure all connec-
tions required for your system are complete by refer-
ring to Chapter 2.
[BAL]
: 12 o'clock
TIMER
POWER
TRANSMIT
PHONES
ELEC-KEY
[RF/SQL]
: 12 o'clock
MIC
[AF]
: Max. CCW
[MIC GAIN]
: 12 o'clock
Applying power (CPU resetting)
First applying power:
Reset the transceiver using the following procedure.
Resetting CLEARS all programmed contents in
memory channels and returns programmed values
in set mode to default values.
q Make sure the transceiver power is OFF.
w While pushing and holding [F-INP ENT] and [MW],
push [POWER] to turn power ON.
• The CPU is reset.
• The CPU start-up takes approx. 5 sec.
• The transceiver displays its initial VFO frequencies
when resetting is complete.
e Change the set mode settings after resetting, if
desired.
Normal applying power:
Push [POWER] to turn power ON, then check the dis-
play. When any of indicators appear, turn them OFF if
necessary. (See the appropriate page for details.)
25
[NR]
: Max. CCW
T X RX
HF/50MHz TRANSCEIVER
TUNER MONITOR
BAL NR
NB NR
AF RF/SQL
F- 1 F- 2 F- 3
SSB CW RTTY/PSK
MIC GAIN RF POWER BK-IN DELAY KEY SPEED
[RF POWER] [BK-IN DELAY]
: Max. CW : 12 o'clock

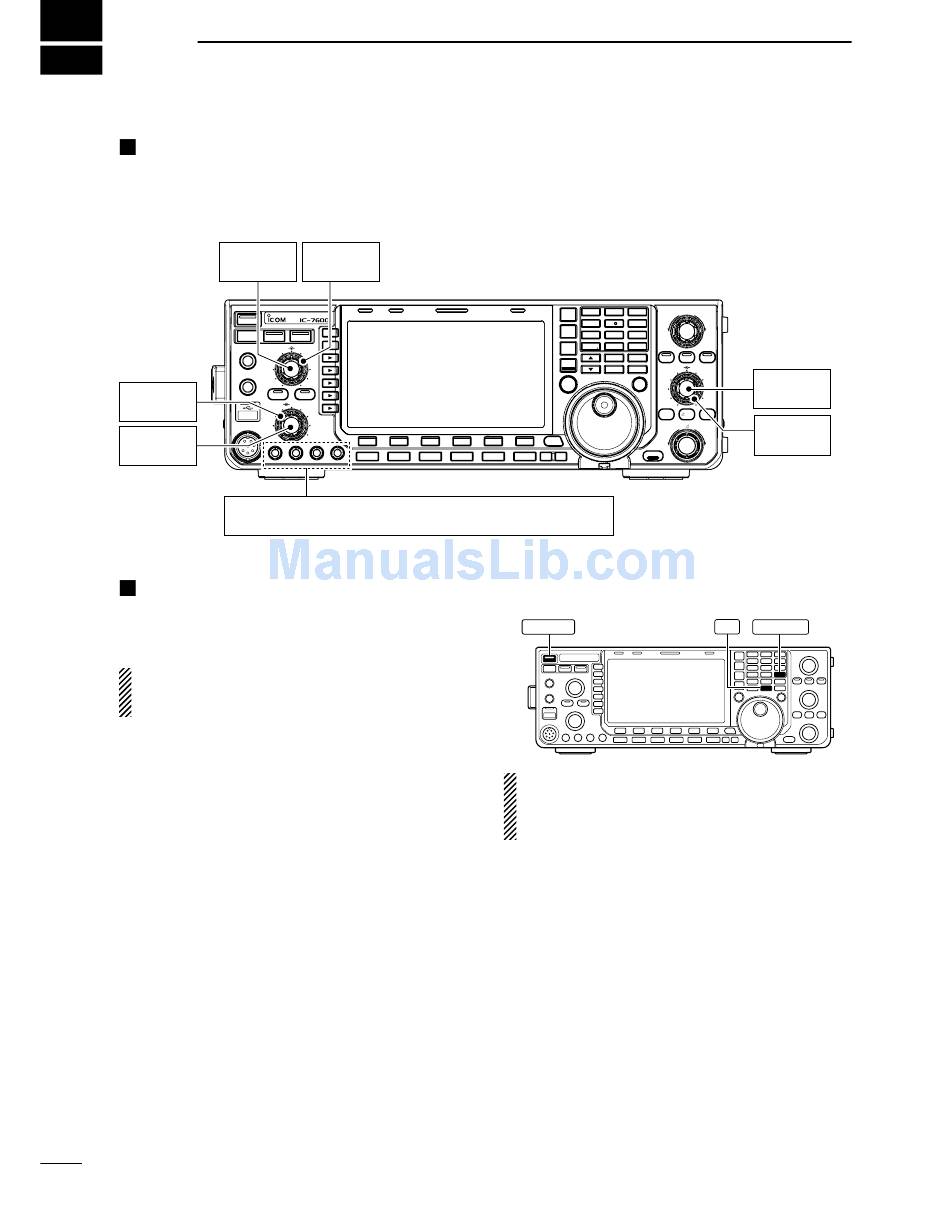

After all connections have been done, set controls
