Icom IC-7600 Instruction Manual page 10

1

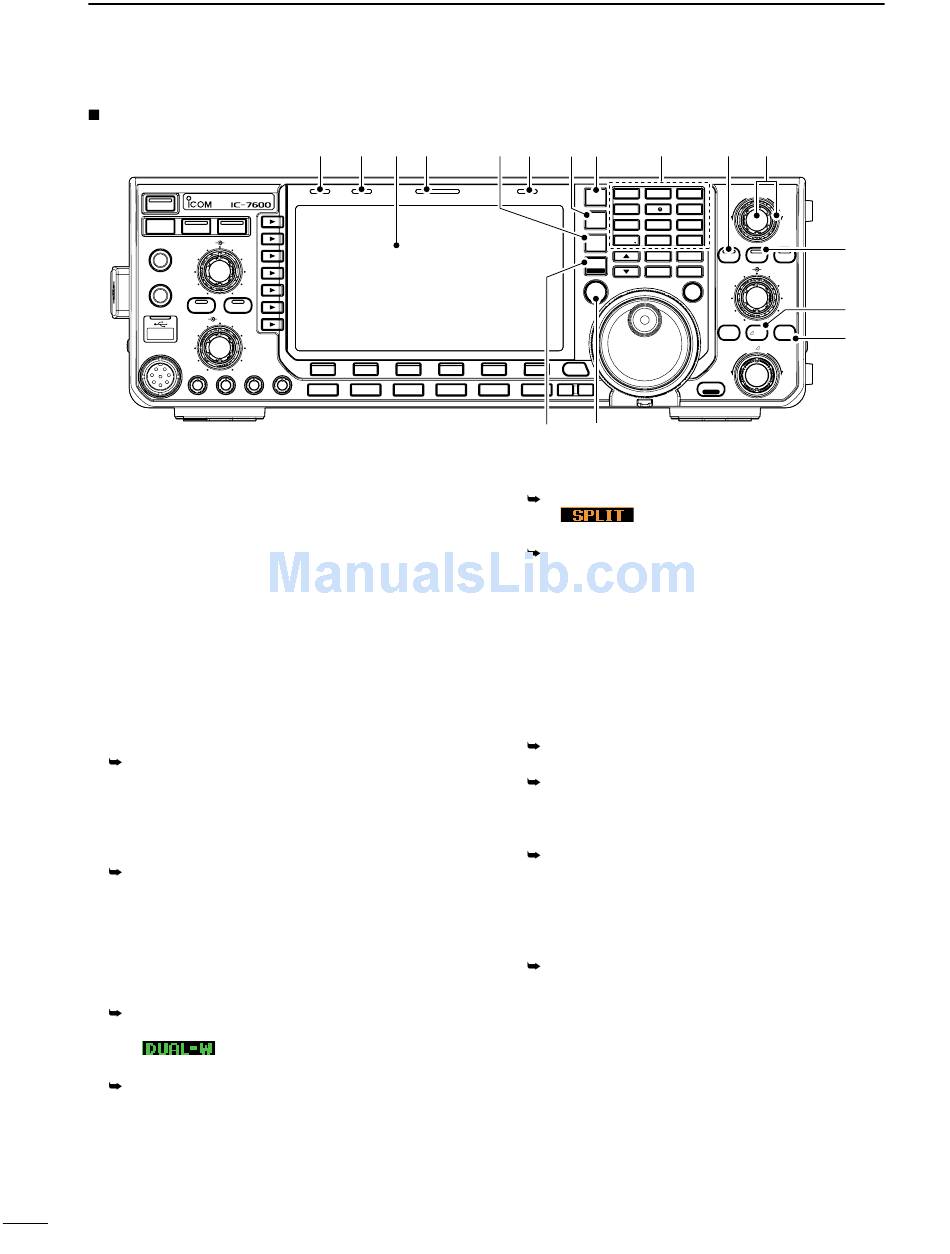

PANEL DESCRIPTION
Front panel (continued)
TIMER
POWER
TRANSMIT
TUNER
BAL
PHONES
ELEC-KEY
NB
AF RF/SQL
MIC
MIC GAIN RF POWER BK-IN DELAY KEY SPEED
#0 TRANSMIT INDICATOR [TX]
Lights red while transmitting.
#1 RECEIVE INDICATOR [RX]
Lights green while receiving a signal and when the
squelch is open.
#2 LCD FUNCTION DISPLAY
Shows the operating frequency, function switch
menus, spectrum scope screen, memory list
screen, set mode settings, etc.
#3 SPLIT OPERATION INDICATOR [SPLIT]
Lights during split frequency operation.
#4 MAIN/SUB CHANGE SWITCH [CHANGE]
Switches the frequency and selected memory
channel between main and sub readouts when
pushed.
• Switches between transmit frequency and receive
frequency when the split frequency function is ON.
(p. ??)
Equalizes the sub readout frequency to the main
readout frequency when pushed and held for 1
sec.
#5 LOCK INDICATOR [LOCK]
Lights when the dial lock function is activated.
#6 DUALWATCH SWITCH [DUALWATCH]
Push to turn the dualwatch function ON and
OFF.
• " " appears when the dualwatch function
is in use.
Push and hold for 1 sec. to turn the dualwatch
function ON and equalizes the sub readout fre-
quency to the main readout. (Quick dualwatch
function)
• The quick dualwatch function can be turned OFF in
others set mode.
7
#0 #1 #2
T X RX
HF/50MHz TRANSCEIVER
MONITOR
NR
NR
F- 1 F- 2
SSB CW RTTY / PSK
(p. ??)
(p. ??)
(p. ??)
(p. ??)
#3 #4 #5 #6 #7
SPLIT LOCK
AUTO
F- 3 F- 4 F- 5 F- 6
TUNE
AM/FM FILTER EXIT / SET REC PLAY
VOICE MEMORY
$5
#7 SPLIT SWITCH [SPLIT]
Push to turn the split function ON and OFF.
• "
use.
Push and hold for 1 sec. to activate the quick
split function.
• The split function ON and equalize the sub readout
frequency to the main readout and sets the sub read-
out for frequency input in non-FM modes.
• The offset frequency is shifted from the selected VFO
frequency in FM mode.
• The quick split function can be turned OFF in others
set mode.
#8 KEYPAD
Pushing a key selects the operating band.
• [GEN •] selects the general coverage band.
Pushing the same key 2 or 3 times calls up other
stacked frequencies in the band.
• Icom's triple band stacking register memorizes 3 fre-
quencies in each band.
After pushing [F-INP ENT], push a key on the
keypad to enter a numeric frequency. After en-
tering, push [F-INP ENT] to select the desired
frequency directly
• e.g. to enter 14.195 MHz;
Push [F-INP ENT] [1] [4] [•] [1] [9] [5] [F-INP ENT].
After pushing [F-INP ENT], push a key on the
keypad to enter a memory channel. after enter-
ing, push [∫]/[√] to select the desired memory
channel directly.
#9 PBT CLEAR SWITCH [PBT-CLR]
Push and hold for 1 sec. to clear the PBT settings.
• The indicator on this switch lights green when PBT is in
use.
#8 #9 $0
1.8 3.5 7 TWIN-PBT
1 2 3
SPLIT
10 14 18
4 5 6
DUAL
WATCH 21 24 28
7 8 9
GENE 50 F-INP
0 ENT
CHANGE
MP-W MP-R
PBT - CLR NOTCH
MAIN
/SUB
NOTCH CW PITCH
M.SCOPE MW VFO/MEMO
XFC TS
RIT TX
RIT/ TX
SPEECH
LOCK
$4
(p. ??)
" appears when the split function is in
(p. ??)
(p. ??)
(p. ??)
(p. ??)
$1
APF/TPF
$2
$3
CLEAR
(p. ??)
(p. ??)
(p. ??)
(p. ??)
