PANEL DESCRIPTION

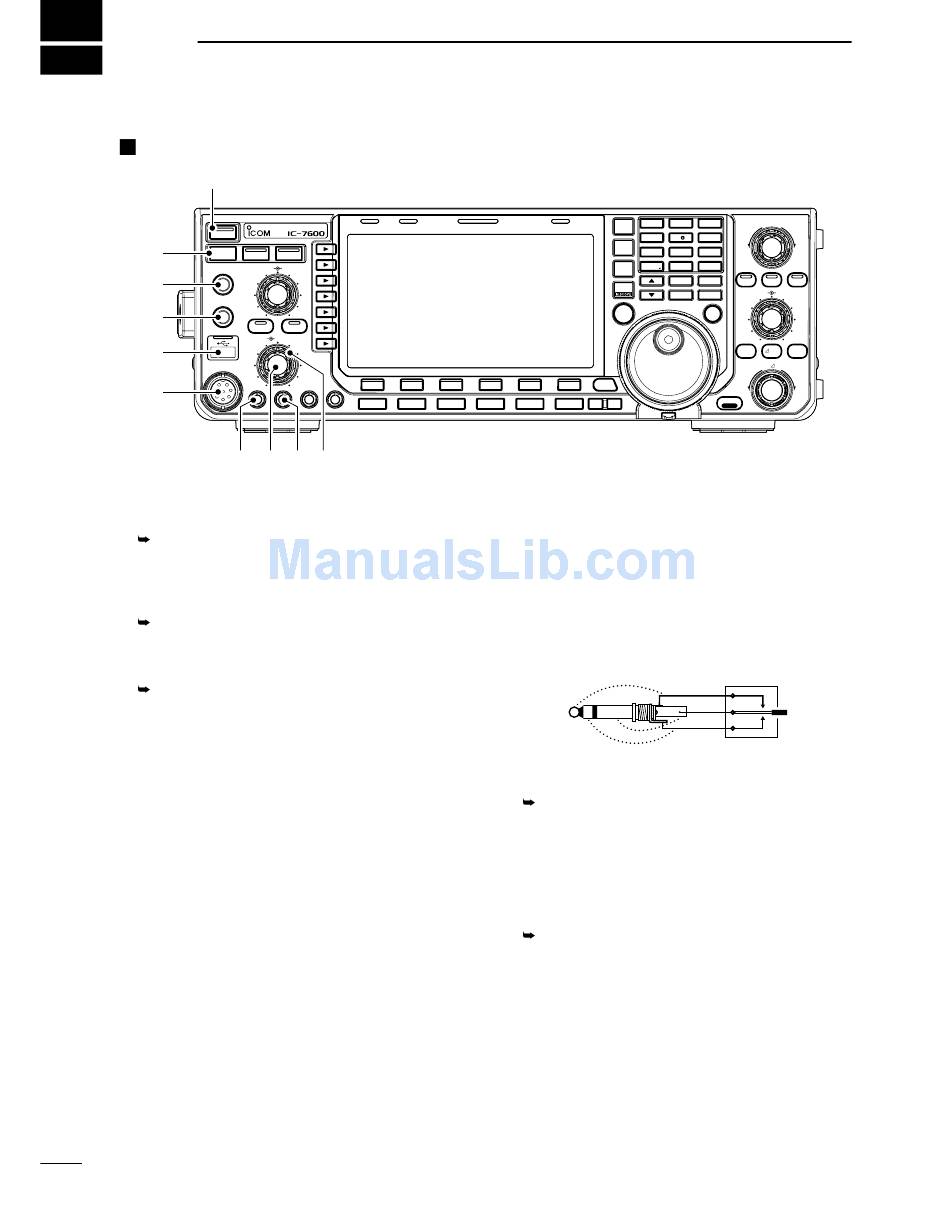

Front panel

q
TIMER
POWER
w
TRANSMIT
TUNER
PHONES
e
ELEC-KEY
r
t
MIC
y
MIC GAIN
u i o !0
q POWER SWITCH [POWER•TIMER]
While transceiver's power is OFF:
Push to turn the transceiver power ON.
• Turn the optional DC power supply ON in advance.
• The indicator on this switch lights green when pow-
ered ON.
While transceiver's power is ON:
Push momentarily to toggle the timer function
ON and OFF. (p. ??)
• The indicator on this switch lights red when the timer
function is ON.
Push and hold for 1 sec. to turn the transceiver
power OFF.
w TRANSMIT SWITCH [TRANSMIT]
Selects transmit or receive.
• The [TX] indicator lights red while transmitting and the
[RX] indicator lights green when the squelch is open.
e HEADPHONE JACK [PHONES]
Accepts standard stereo headphones.
• Output power: 5 mW with an 8 ø load.
• When headphones are connected, the internal speaker
or connected external speaker does not function.
1
T X RX
HF/50MHz TRANSCEIVER
MONITOR
BAL NR
NB NR
AF RF/SQL
F- 1 F- 2
SSB CW
RF POWER BK-IN DELAY KEY SPEED
(p. ??)
SPLIT LOCK
SPLIT
DUAL
WATCH
CHANGE
MAIN
/SUB
XFC
AUTO
F- 3 F- 4 F- 5 F- 6
TUNE
RTTY / PSK AM/FM FILTER EXIT / SET REC PLAY
VOICE MEMORY
r ELECTRONIC KEYER JACK [ELEC-KEY]
Accepts a paddle to activate the internal electronic
keyer for CW operation.
• You can select internal electronic keyer, bug-key or
straight key operation in keyer CW-key screen.
• A straight key jack is located on the rear panel. See
[KEY] on p. ??.
• Keyer polarity (dot and dash) can be reversed in keyer
CW-key screen.
• A 4-channel memory keyer is available for your conve-
nience. (p. ??)
t USB (Universal Serial Bus) CONNECTOR
(A type) [USB] (A)
Insert USB-Memory* for both reading/storing a
wide variety of the transceiver's information and
data.
• The indicator above the connectors lights or blinks
when the transceiver reads or writes to the memory
data.
• Unmount operation should be performed before re-
moving the USB-Memory*
Connects a PC keyboard for RTTY and PSK op-
erations.
• USB keyboards* are supported.
*: USB-Memory or USB keyboard is not supplied by
Icom.
1.8 3.5 7 TWIN-PBT
1 2 3
10 14 18
4 5 6
21 24 28
7 8 9
GENE 50 F-INP
0 ENT
MP-W MP-R PBT - CLR
NOTCH APF/TPF
NOTCH CW PITCH
MW VFO/MEMO
TS
RIT TX CLEAR
RIT/ TX
SPEECH
LOCK
(p. ??)
(p. ??)
(p. ??)
(dot)
(com)
(dash)
(p. ??)
(p.??).
