Transverter jack information

Transverter connector

FSK and AFSK (SSTV) connections

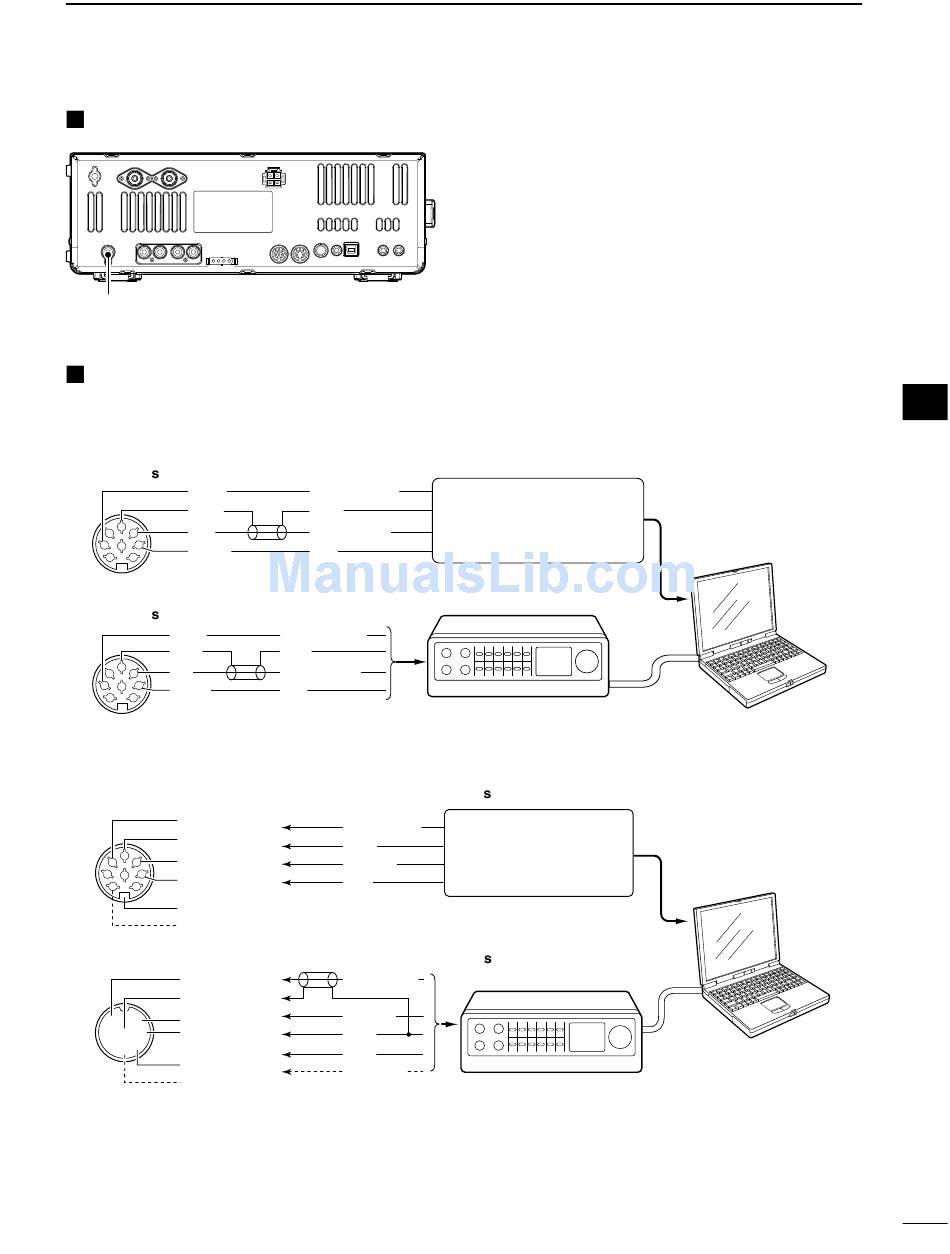

To connect a TNC or scan converter, etc., refer to the diagram below.
D FSK operation— when connecting to [ACC 1]
• When u ing a PC application
RTTY
GND
2
AF
4 5
1 3
8
SEND
6 7
Rear panel view
• When u ing a TNC
RTTY
GND
2
AF
4
5
1 3
8
SEND
6
7
Rear panel view

D AFSK operation

• When connecting to [ACC 1]
z
x
2
c
4 5
1 3
8
v
6 7
b
n
†
Rear panel view
• When connecting to [MIC]
z
c
x
q u
b
w i y
e t
r
v*
n
†
Rear panel view
D When connecting to the [USB] connector
Connect an USB cable (third party's) between the transceiver's USB connector [USB] (B) on the rear panel and
PC. (p. ??)
• Icom HP (http://www.icom.co.jp/world/support/index.html) gives the USB driver and the installation guide download service.
Connect to serial port, parallel
RTTY OUTPUT
port, speaker jack, microphone
GND
jack and line IN/OUT jack, etc.
AUDIO INPUT
See the instruction manual of the
application for details.
PTT
RTTY OUTPUT
GND
AUDIO INPUT
PTT
• When u ing a PC application
z
Audio output
x
GND
c
AF input
v
PTT
• When u ing a TNC
z
AFSK output
x
c
AF input
v
PTT*
b
GND
n
†
SQL input †
*When using the VOX function, no need to connect. Refer to the instruction
manual of the external equipment (TNC, etc.).
†
When connecting the squelch line, consult the necessary manual (TNC, etc.).
INSTALLATION AND CONNECTIONS
When 2 to 13.8 V is applied to pin 6 of [ACC 2], the
[X-VERTER] connector is activated for transverter op-
eration and the antenna connectors do not receive or
transmit any signals.
While receiving, the [X-VERTER] connector can be acti-
vated as an input terminal from an external transverter.
While transmitting, the [X-VERTER] connector outputs
signals of the displayed frequency at –20 dBm (22 mV)
as signals for the external transverter.
