INSTALLATION AND CONNECTIONS

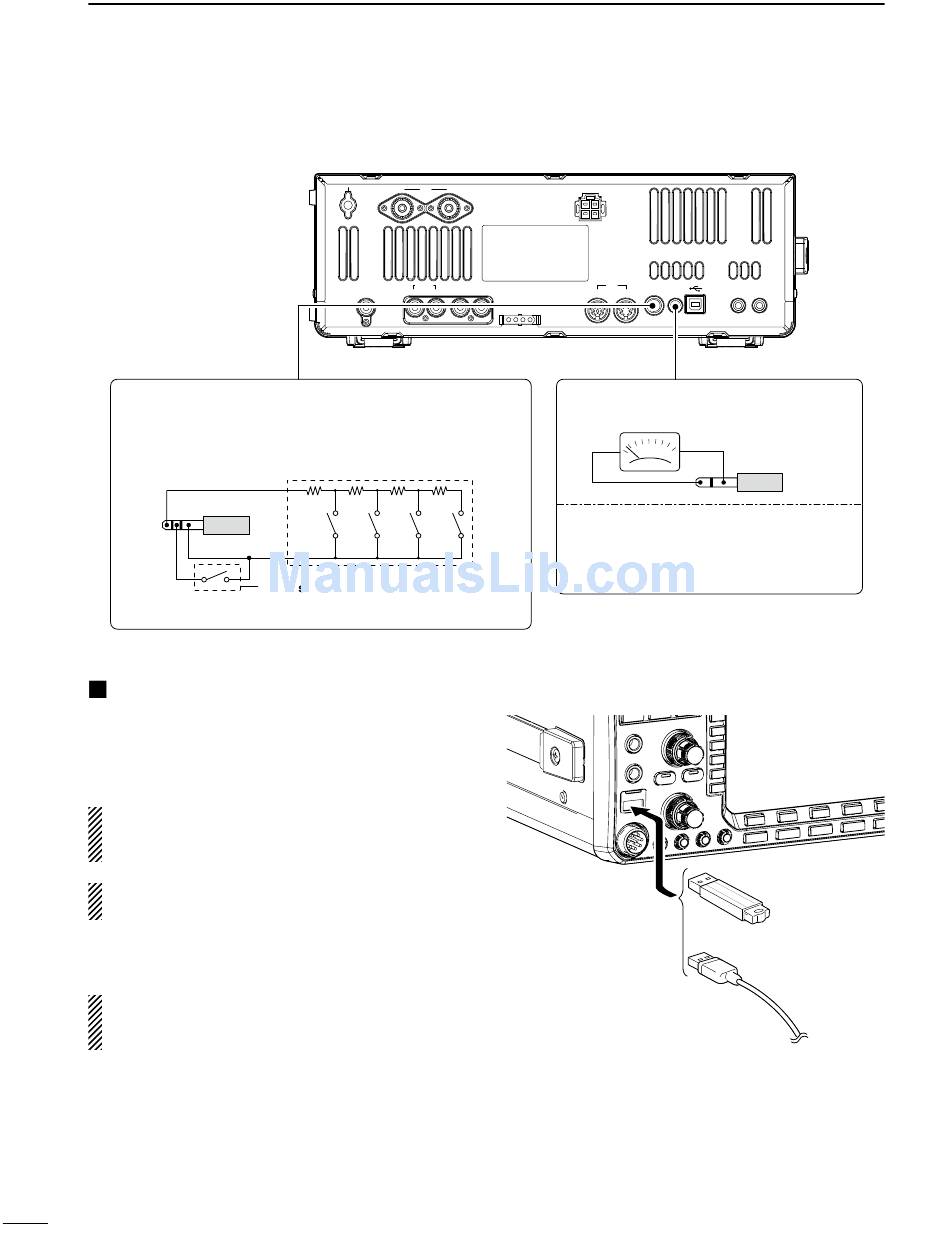

D Rear panel— 2
EXTERNAL KEYPAD
Connects an external keypad for direct voice memory,
keyer memory, RTTY TX memory and PSK TX memory
controls.
6.35 (d) mm; 1⁄4" plug

USB connection

Connect the USB-Memory* to the USB connector (A
type) on the front panel.
• Unmount operation is recommended before removing the
USB-Memory* (p.??).
Make sure to connect the USB-Memory correctly.
NEVER connect or remove the USB-Memory when
the read/write indicator lights or blinks.
An USB keyboard* or an USB hub* can also be con-
nected to the USB connector.
* USB-Memory, USB keyboard or USB hub is not supplied
by Icom.
When the transceiver is connected to PC, an USB
cable (third party) should be connected to the USB
connector (B type) on the rear panel.
19
1 ANT
RX-ANT
X-VERTER IN OUT
EXTERNAL KEYPAD
1.5 kø 1.5 kø 2.2 kø 4.7 kø
±5% ±5% ±5% ±5%
S1 S2 S3 S4
(T1/M1) (T2/M2) (T3/M3) (T4/M4)
Mute witch: Mutes both transmis-
sion and reception when switched
ON during transceive operation, etc.
(p. ??)
2 DC 13.8V
ACC
ALC SEND 1 2
TUNER
[METER]
Connects an external meter, etc.
Output impedance
Output voltage (open circuit) : 2.5 V (default)
Output voltage can be adjusted 0 to 5 V
in ACC set mode.
KEY
METER REMOTE EXT-SP
3.5 (d) mm; 1⁄8" plug
: 4.7 kø
(p. ??)
or
