1

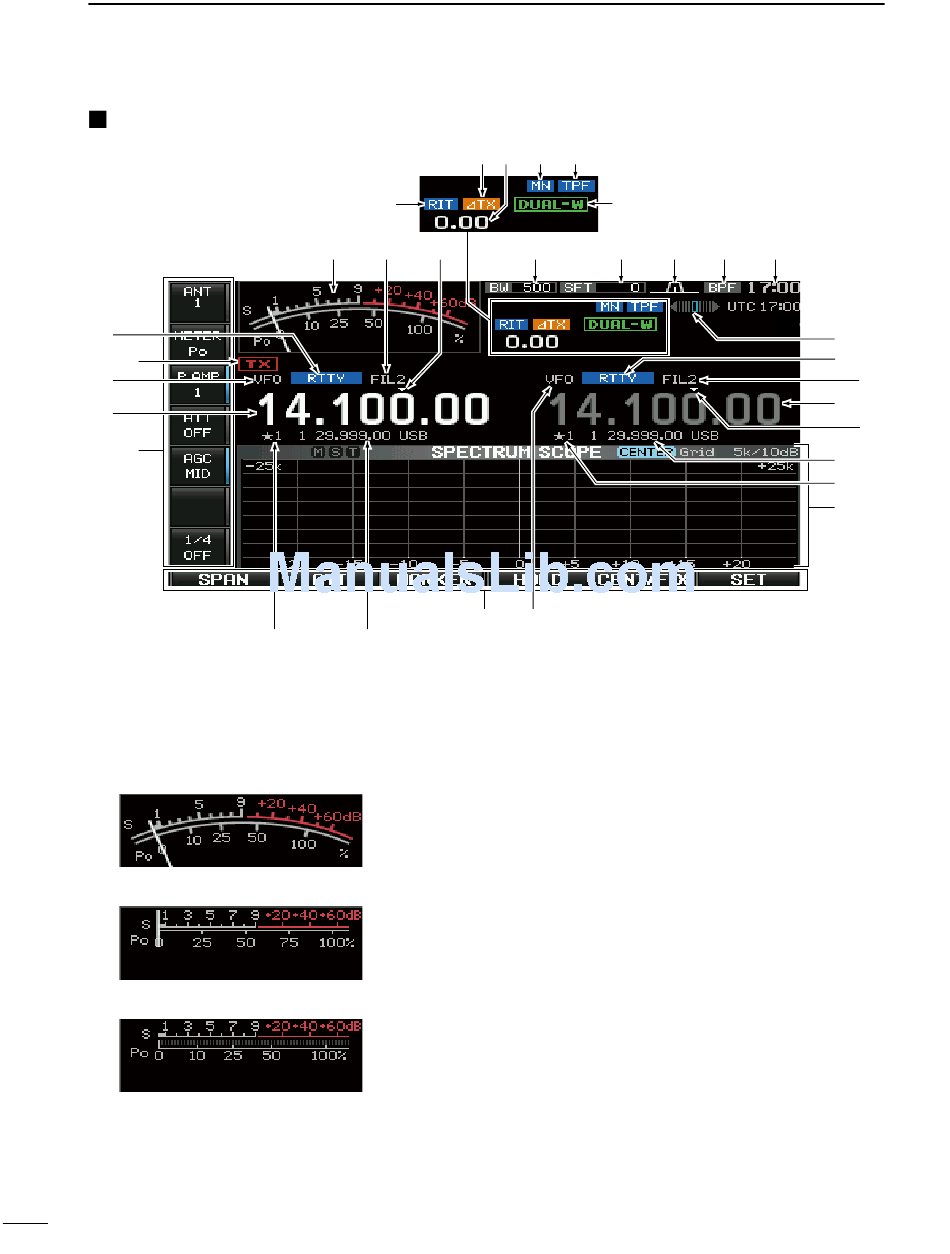

PANEL DESCRIPTION

LCD display

!0
!8
!5
!1
!7
q S/RF METER
(pgs. ??, ??)
Shows the signal strength while receiving. Shows
the relative output power, SWR, ALC, VD, ID or
compression levels while transmitting.
• A total of 3 meter types are available.
• Standard meter
• Edgewise meter
• Bar meter
13
!9
q w e
!3 !2
@0 @1 @2 @3
@4
r t
!6 !5
w IF FILTER INDICATOR
Shows the selected IF filter number.
e QUICK TUNING INDICATOR
Appears when the quick tuning step function is in
use.
r BAND WIDTH INDICATOR
Shows the passband width of the IF filter.
t SHIFT FREQUENCY INDICATOR
Shows the shift frequency of the IF filter.
y PASSBAND WIDTH INDICATOR
Graphically displays the passband width for twin
PBT operation and center frequency for IF shift op-
eration.
u BANDPASS FILTER INDICATOR
Appears when the narrow filter (500 Hz or less) is
selected during CW, RTTY or PSK operation.
i CLOCK READOUT
Shows the current time.
Local and UTC time can be indicated at the same
time.
y u i
o
!0
!1
!2
!3
!4
(p. ??)
(p. ??)
(p. ??)
(p. ??)
(p. ??)
w
e
