HUAWEI NetEngine5000E Core Router
Configuration Guide - System Management
l
l
Configuration Procedures
To collect statistics about IPv6 aggregated flows, perform the procedures as described in the
following flowchart.

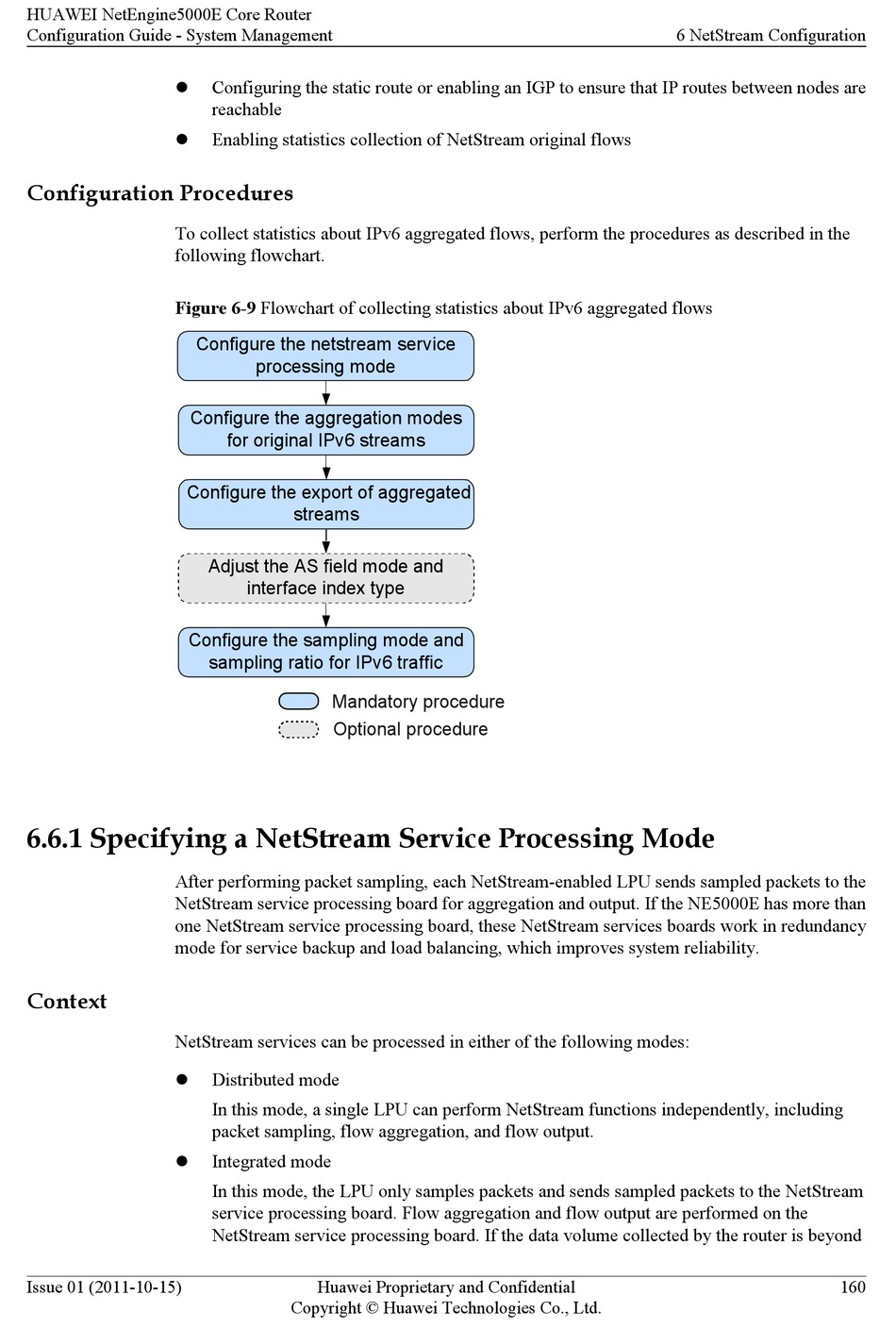

Figure 6-9 Flowchart of collecting statistics about IPv6 aggregated flows
Configure the aggregation modes
Configure the export of aggregated
Configure the sampling mode and

6.6.1 Specifying a NetStream Service Processing Mode

After performing packet sampling, each NetStream-enabled LPU sends sampled packets to the
NetStream service processing board for aggregation and output. If the NE5000E has more than
one NetStream service processing board, these NetStream services boards work in redundancy
mode for service backup and load balancing, which improves system reliability.
Context
NetStream services can be processed in either of the following modes:
l
l
Issue 01 (2011-10-15)
Configuring the static route or enabling an IGP to ensure that IP routes between nodes are
reachable
Enabling statistics collection of NetStream original flows
Configure the netstream service
processing mode
for original IPv6 streams
streams
Adjust the AS field mode and
interface index type
sampling ratio for IPv6 traffic
Mandatory procedure
Optional procedure
Distributed mode
In this mode, a single LPU can perform NetStream functions independently, including
packet sampling, flow aggregation, and flow output.
Integrated mode
In this mode, the LPU only samples packets and sends sampled packets to the NetStream
service processing board. Flow aggregation and flow output are performed on the
NetStream service processing board. If the data volume collected by the router is beyond
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
6 NetStream Configuration
160
