HUAWEI NetEngine5000E Core Router
Configuration Guide - System Management
On the IPv4 BGP/MPLS IP VPN network shown in
l
l
l

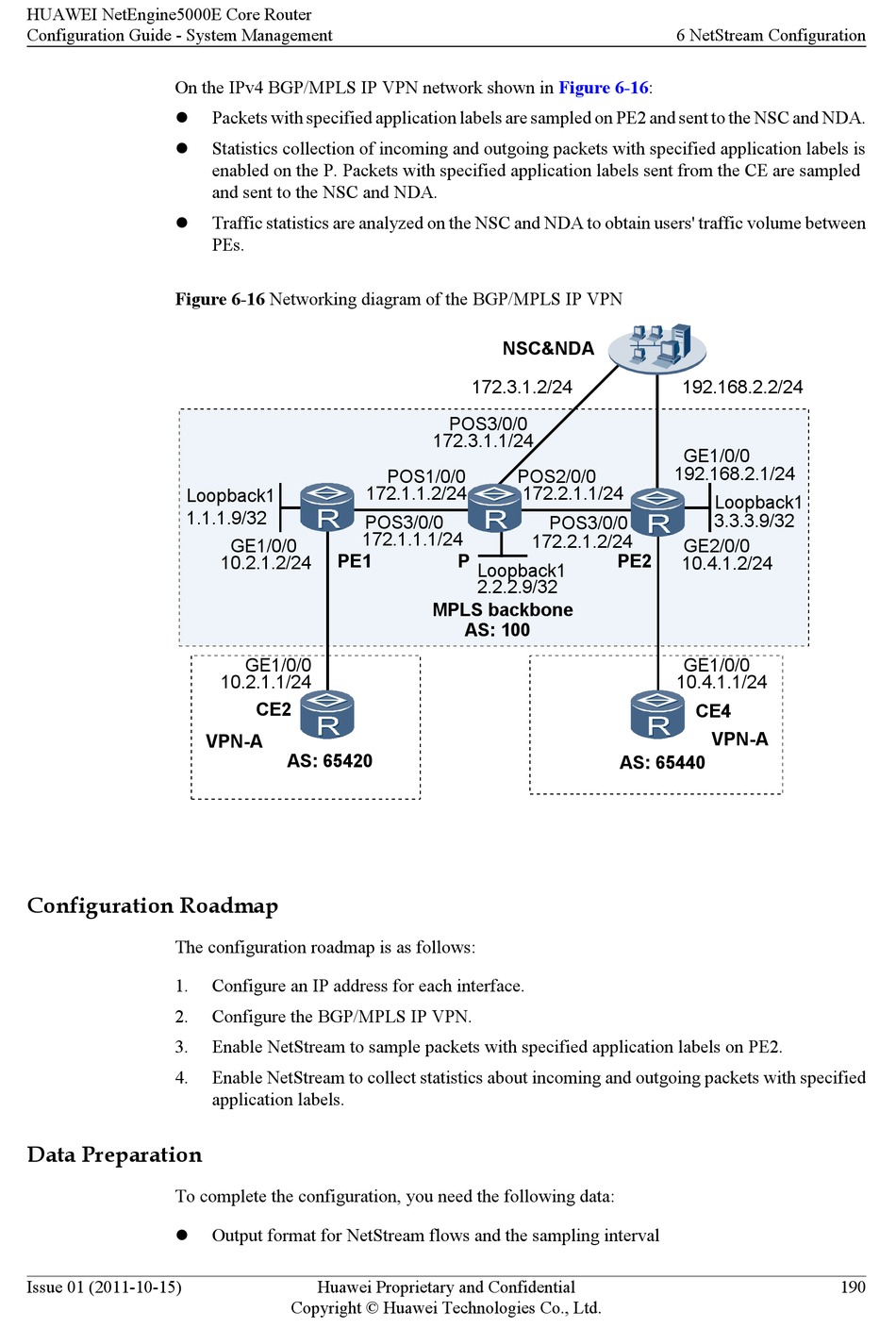

Figure 6-16 Networking diagram of the BGP/MPLS IP VPN
Loopback1
1.1.1.9/32
Configuration Roadmap
The configuration roadmap is as follows:
1.
2.
3.
4.
Data Preparation
To complete the configuration, you need the following data:
l
Issue 01 (2011-10-15)
Packets with specified application labels are sampled on PE2 and sent to the NSC and NDA.
Statistics collection of incoming and outgoing packets with specified application labels is
enabled on the P. Packets with specified application labels sent from the CE are sampled
and sent to the NSC and NDA.
Traffic statistics are analyzed on the NSC and NDA to obtain users' traffic volume between
PEs.
172.1.1.2/24
POS3/0/0
172.1.1.1/24
GE1/0/0
PE1
10.2.1.2/24
GE1/0/0
10.2.1.1/24
CE2
VPN-A
AS: 65420
Configure an IP address for each interface.
Configure the BGP/MPLS IP VPN.
Enable NetStream to sample packets with specified application labels on PE2.
Enable NetStream to collect statistics about incoming and outgoing packets with specified
application labels.
Output format for NetStream flows and the sampling interval
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
NSC&NDA
172.3.1.2/24
POS3/0/0
172.3.1.1/24
POS1/0/0 POS2/0/0
172.2.1.1/24
POS3/0/0
172.2.1.2/24
P
Loopback1
2.2.2.9/32
MPLS backbone
AS: 100
6 NetStream Configuration
Figure 6-16:
192.168.2.2/24
GE1/0/0
192.168.2.1/24
Loopback1
3.3.3.9/32
GE2/0/0
PE2
10.4.1.2/24
GE1/0/0
10.4.1.1/24
CE4
VPN-A
AS: 65440
190
