MODULAR SAFETY INTEGRATED CONTROLLER MOSAIC

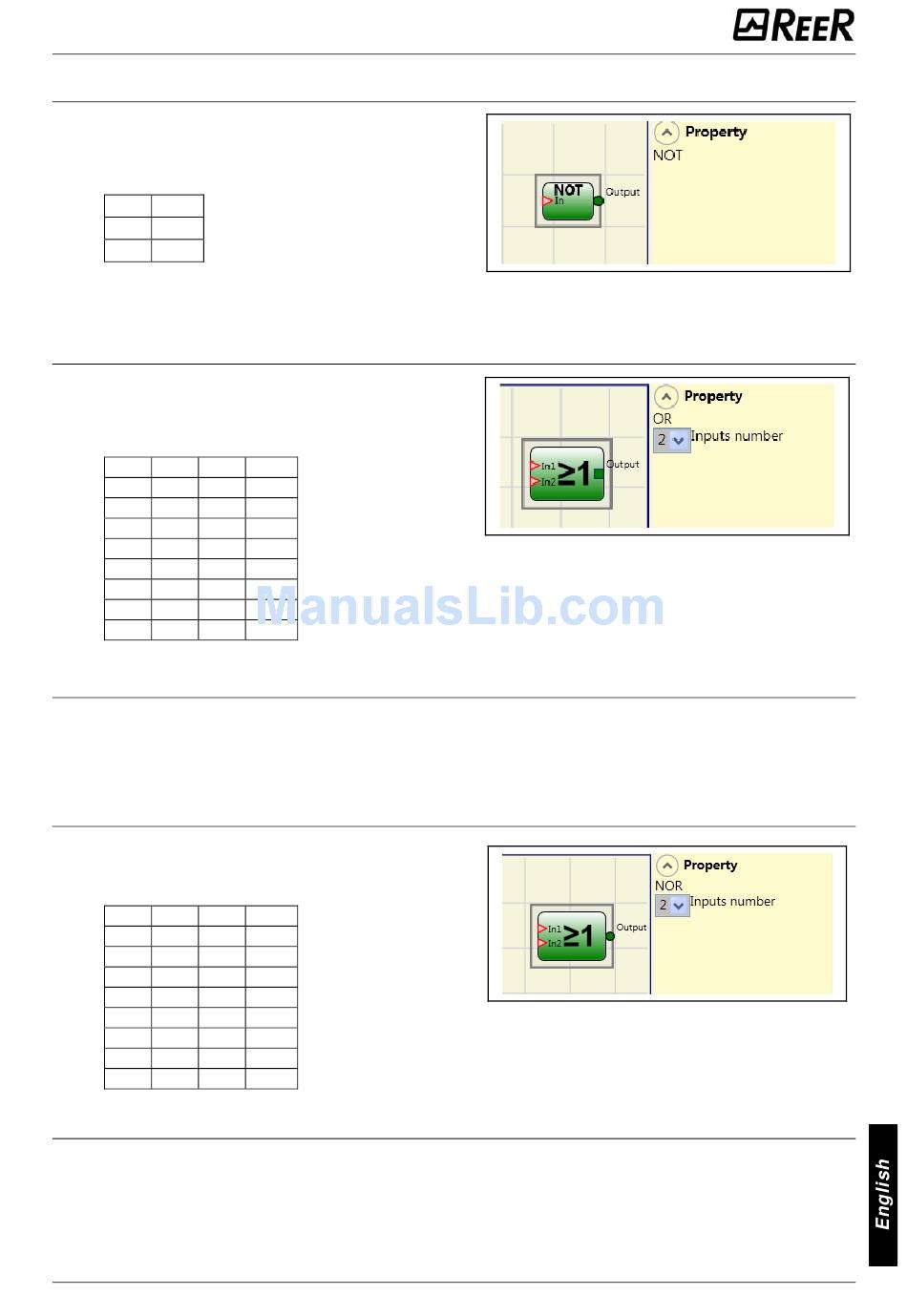

NOT

Logical NOT inverts the logical status of the
input.
In Out
0 1
1 0
OR
Logical OR returns an output of 1 (TRUE) if at
least one of the inputs is 1 (TRUE).
In In In
1 2
0 0 0
1 0 0
0 1 0
1 1 0
0 0 1
1 0 1
0 1 1
1 1 1
Parameters
Number of inputs: this is used to set between 2 and 8 inputs.

NOR

Logical NOR returns an output of 0 (FALSE) if
at least one of the inputs is 1 (TRUE).
In In In
1 2
0 0 0
1 0 0
0 1 0
1 1 0
0 0 1
1 0 1
0 1 1
1 1 1
Parameters
Number of inputs: this is used to set between 2 and 8 inputs.
8540780 • 25th June 2012 • Rev.15
Out
x
0
1
1
1
1
1
1
1
Out
x
1
0
0
0
0
0
0
0
