RESTART_FBK

The RESTART_FBK signal input allows the MOSAIC to verify an EDM (External Device
Monitoring) feedback signal (series of contacts) from the external contactors, and to
monitor Manual/Automatic operation (See the list of possible connections in Table 11).
If the application requires it, the response time of the external contactors must be
verified by an additional device.
The RESTART command must be installed outside the danger area in a position where
the danger area and the entire work area concerned are clearly visible.
It must not be possible to reach the control from inside the danger area.

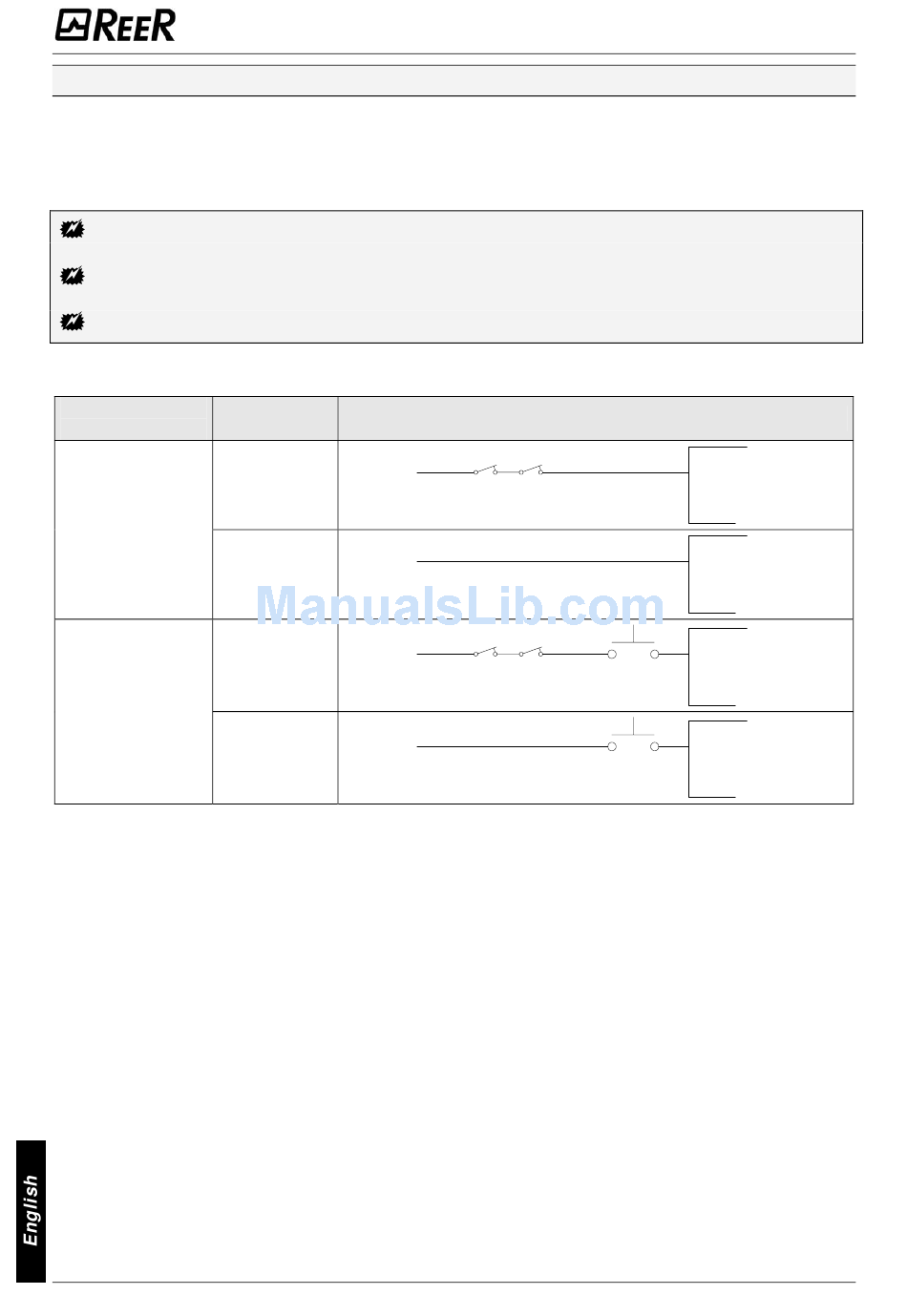

MODE OF
OPERATION
AUTOMATIC
MANUAL
22
EDM
24V
With K1_K2
control
24V
Without
K1_K2
control
24V
With K1_K2
control
24V
Without
K1_K2
control
MODULAR SAFETY INTEGRATED CONTROLLER MOSAIC
RESTART_FBK
K1
K2
K1
K2
Table 11
ext_Restart_fbk
ext_Restart_fbk
ext_Restart_fbk
ext_Restart_fbk
