SPECIAL APPLICATIONS

Output delay with manual

If you need to have two OSSD output with one of them delayed (in MANUAL mode) use the
following scheme:
C

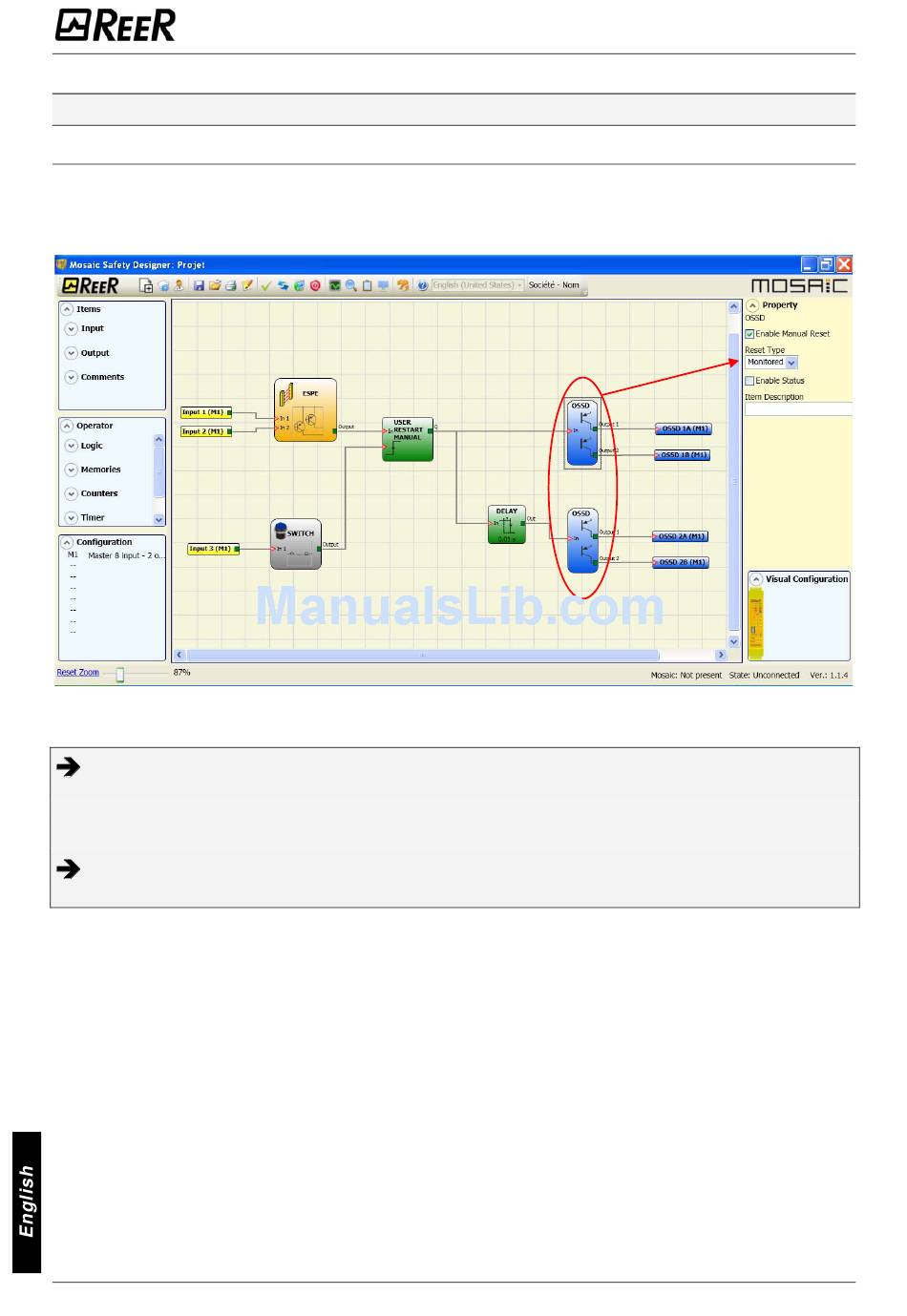

Figure 42 - Two outputs with one delayed (in MANUAL mode)
Whereas the operating mode of the logical DELAY (see DELAY paragraph) the
application must be the following:
- The two outputs have to be programmed with RESET TYPE manual (monitored)
using the function USER MANUAL RESTART.
You must physically connect the button RESTART to the inputs RESTART_FBK1/2 of
the OSSD A and B used (see section connections (p. 12)) and to the INPUT3 (C).
90
MODULAR SAFETY INTEGRATED CONTROLLER MOSAIC
A
B
8540780 • 25th June 2012 • Rev.15
