MODULAR SAFETY INTEGRATED CONTROLLER MOSAIC

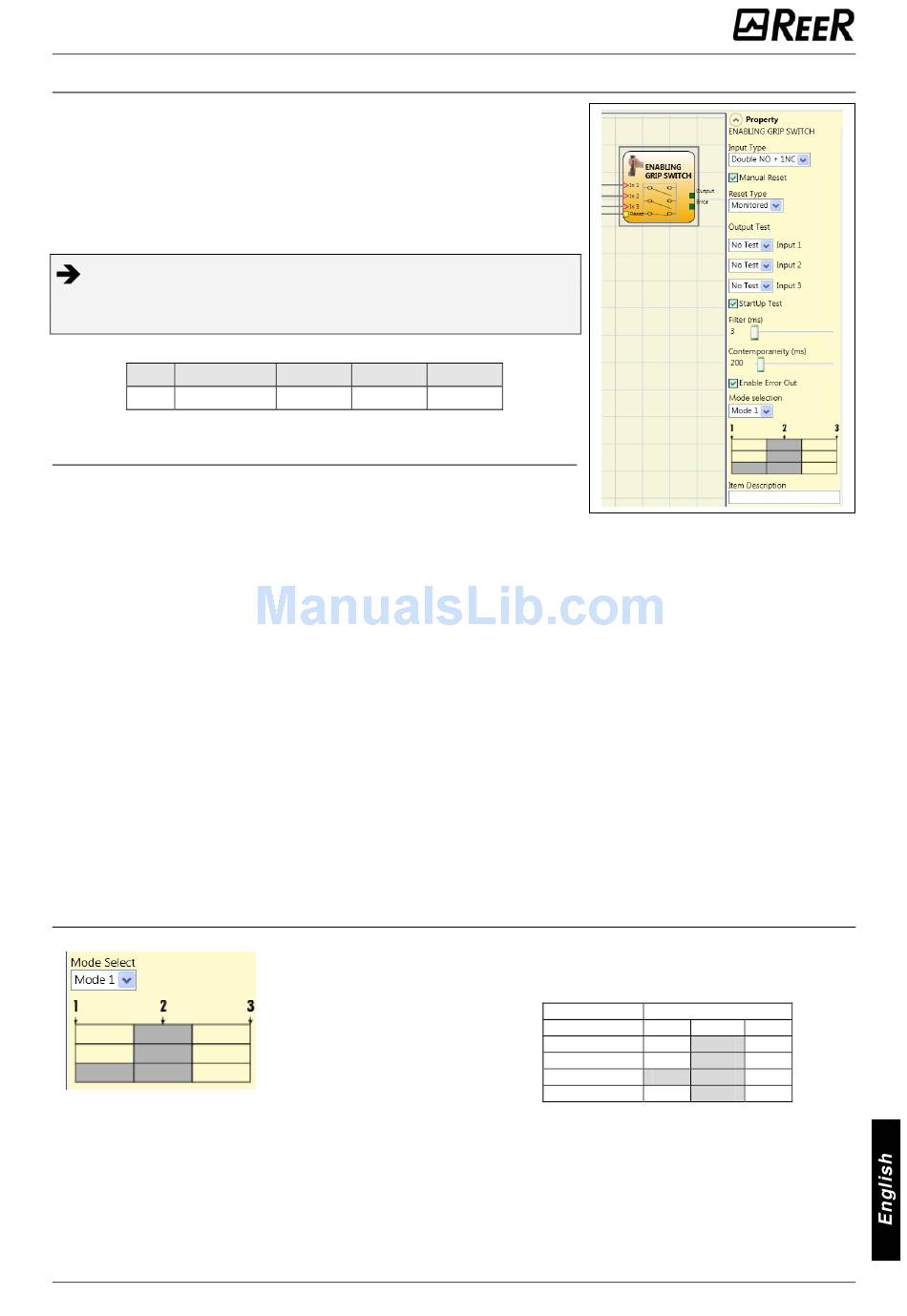

ENABLING GRIP SWITCH

The ENABLING GRIP functional block checks the status of
the In inputs of an enabling grip. If this is not gripped
x
(position 1) or is gripped completely (position 3), the
OUTPUT will be 0 (FALSE). If it is gripped to middle
position (position 2), the OUTPUT will be 1 (TRUE).
Refer to truth tables at the bottom of the page.
The ENABLING
that the assigned module has a minimum Firmware
version as Table below:
M1 MI8O2
1.0 0.4
Parameters
Type of inputs:
Double NO – Permits connection of an enabling grip
-
with 2 NO contacts.
Double NO+1NC – Permits connection of an enabling grip switch with 2 NO
-
contacts + 1 NC contact.
Test outputs: Permits selection of the test output signals to be sent to the enabling grip.
This additional control permits detection and management of any short-circuits between
the lines. To enable this control, the test output signals must be configured (amongst
those available).
Power-on test: If selected, enables the power-on test of the external component
(Enabling Grip). To run the test, the device must be gripped and released to carry out a
complete functional check and enable the Output terminal. This control is required only
at machine start-up (power-on of the module).
Simultaneity (ms): always active. Determines that maximum permissible time (msec)
between switching of the various signals from the external contacts of the device.
Filter (ms): Permits filtering of signals from the device control. This filter can be set to
between 3 and 250 ms and eliminates any rebounds on the contacts. The duration of the
filter affects calculation of module total response time.
Table mode 1 (device 2NO + 1NC)
8540780 • 25th June 2012 • Rev.15
GRIP functional block
MI8 MI16
0.4 0.4
POSITION 1: enabling grip fully released
POSITION 2: enabling grip pressed to middle position
POSITION 3: enabling grip fully pressed
(only with 2NO+1NC)
requires
MI12
0.0
Input
IN1
IN2
IN3
OUT
Position
1 2 3
0 1 0
0 1 0
1 1 0
0 1 0
