MODULAR SAFETY INTEGRATED CONTROLLER MOSAIC

USB input

The MOSAIC master M1 includes a
USB 2.0 connector for connection to
a Personal Computer
the MSD (MOSAIC Safety Designer)
configuration SW resides.
A USB cable of the correct size is
available as an accessory (CSU).
TECHNICAL DATA LABEL
MCM LABEL

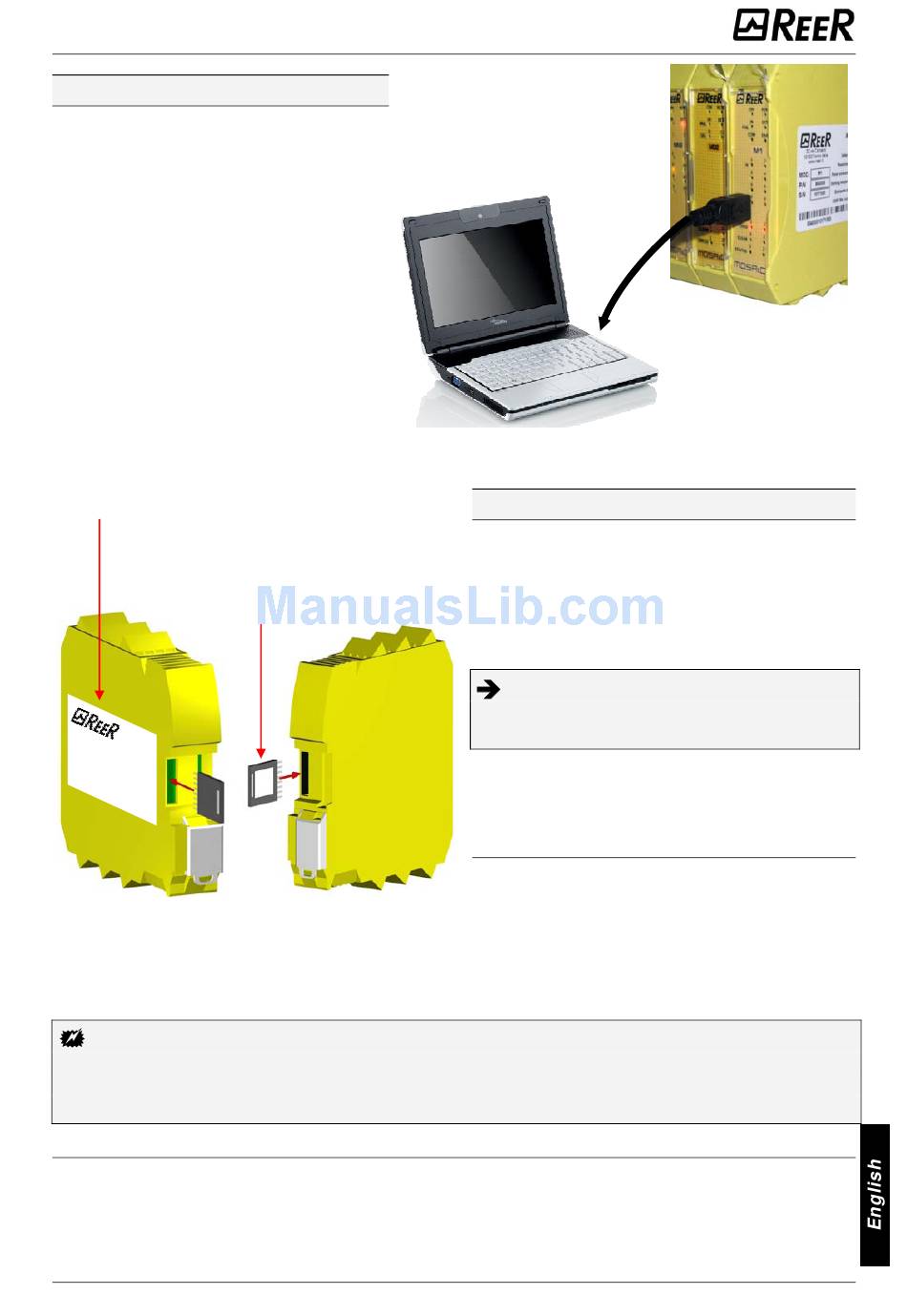

Figure 3 - MCM
If the file contained in the MCM is not identical to the one contained in M1, an overwrite
operation that will permanently delete the configuration data contained in M1 will be
performed.
WARNING: ALL DATA PREVIOUSLY CONTAINED IN M1 WILL BE LOST.

RESTORE function

If the M1 unit is damaged, you can replace it with a new one; having already saved all the
configurations on the MCM, all you need to do is insert the MCM in the new M1 and
switch on the MOSAIC system, that will immediately load the backup configuration. In this
way, the work interruptions will be minimized.
8540780 • 25th June 2012 • Rev.15
where
Figure 2 - USB 2.0 front panel connector

MOSAIC Configuration Memory (MCM)

A backup memory, called MCM (optional)
can be installed in the MOSAIC master M1
and used to save the SW configuration
parameters.
The MCM is written each time a new
project is sent from the PC to the M1.
Insert the card in the slot in the rear
panel of the M1 (in the direction shown in
Figure 3 - MCM).

MULTIPLE LOAD function

To perform the configuration of several
M1 modules without using a PC and the
USB connector, you can save the desired
configuration on a single MCM and then
use it to download data on the modules
M1 to be configured.
Always switch the M1 off before
logging on to/logging off from the
MCM.
13
