Blind Time: Only with Muting Close=Curtain, blind time is enabled if you know that after
the complete transition of the pallet (muting cycle close) some protruding objects could
still occupy the light curtain and send the input to 0 (FALSE). During blind time the input
remains 1 (TRUE). Blind Time can range from 250 msecs to 1 second.
Sensor time: A difference of between 2 and 5 seconds can be set for activating the
sensors.

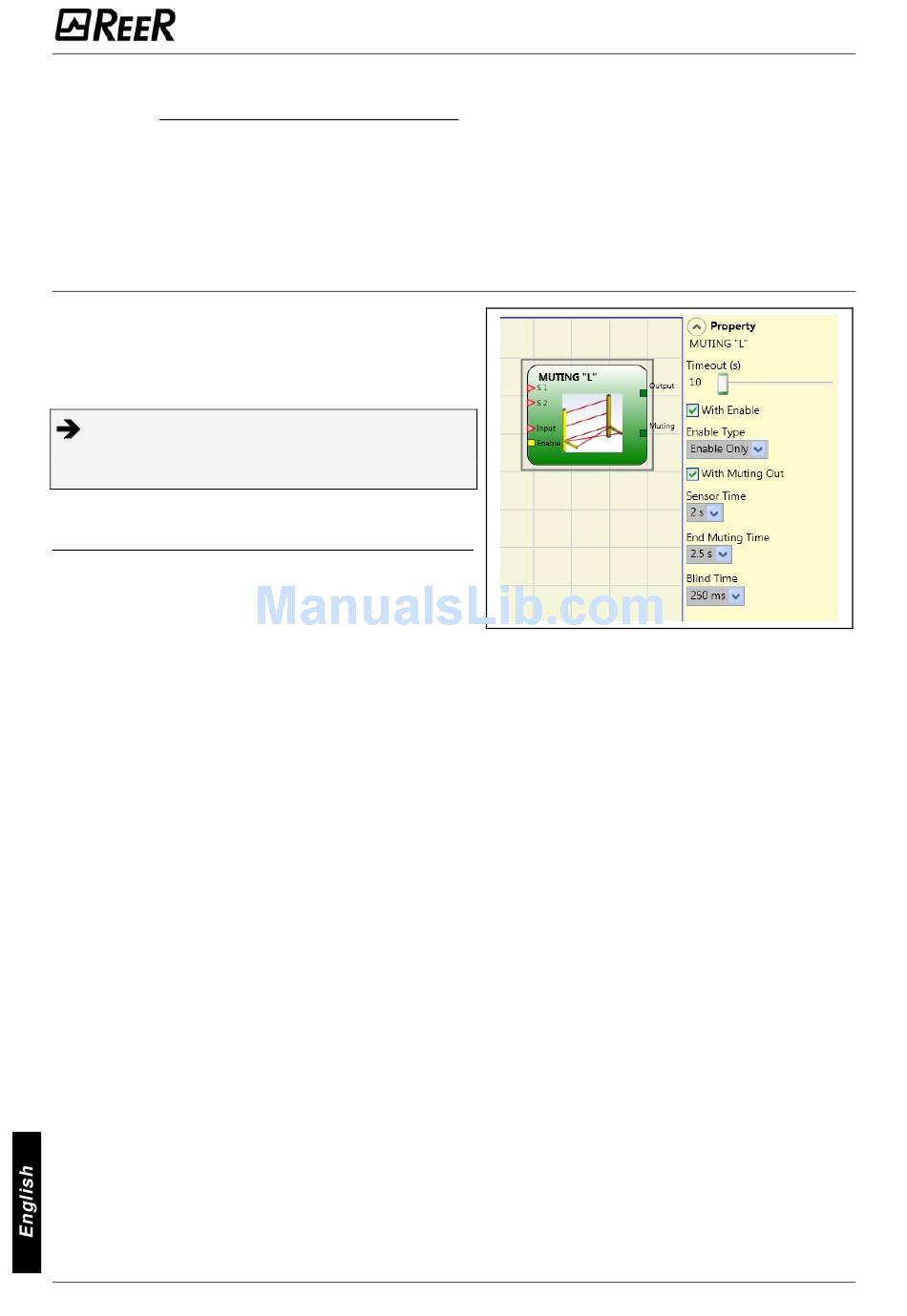

MUTING "L"

The MUTING operator with "L" logic performs
muting of the input signal through sensor
inputs S1 and S2.
Preliminary condition: The Muting cycle
can only start if S1 and S2 are 0 (FALSE)
and the inputs are 1 (TRUE) (barrier free).
Parameters
Timeout (sec): Sets the time, between 10 secs
and unlimited, within which the Muting cycle
must end. If the cycle is not complete at the
end of this time, Muting is immediately
discontinued.
Enable: If selected it enables the possibility of enabling or not enabling the Muting
function. Otherwise the Muting function is always enabled.
There are two Enable modes: Enable/Disable and Enable Only. If Enable/Disable is
selected the Muting cycle cannot start if Enable is fixed at 1 (TRUE) or 0 (FALSE) but is
only activated with a rising edge. To disable muting, set Enable to 0 (FALSE). In this mode
the falling edge disables Muting regardless of the condition. If Enable Only is selected
Muting cannot be disabled but Enable must be set to 0 (FALSE) in order to enable a new
rising edge for the next Muting cycle.
Sensor time: A difference of between 2 and 5 seconds can be set for activating the
sensors.
End of Muting time: Sets the muting falling time, from 2.5 to 6 seconds, after the first
sensor has been cleared.
Blind Time: enabled if you know that after the complete transition of the pallet (muting
cycle close) some protruding objects could still occupy the light curtain and send the
input to 0 (FALSE). During blind time the input remains 1 (TRUE). Blind Time can range
from 250 msecs to 1 second.
