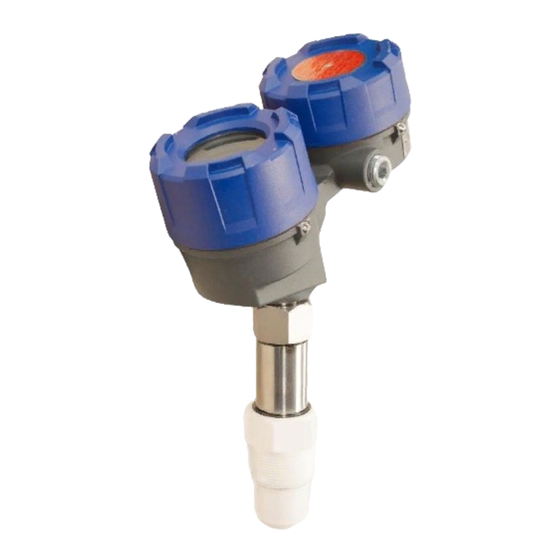

Pulsar
®
Model R86
PROFIBUS PA
Operating Manual
Software Version 1.x
High Performance
26 GHz Pulse Burst Radar
Level Transmitter
2014/68/EU

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pulsar R86 and is the answer not in the manual?

Questions and answers

Related Manuals for Magnetrol Pulsar R86

Summary of Contents for Magnetrol Pulsar R86

  • Page 1 Pulsar ® Model R86 PROFIBUS PA Operating Manual Software Version 1.x High Performance 26 GHz Pulse Burst Radar Level Transmitter 2014/68/EU...
  • Page 2 Safety Messages MAGNETROL will repair or replace the control at no The PULSAR system is designed for use in Category II, cost to the purchaser (or owner) other than transportation.

  • Page 3: Table Of Contents

    Pulsar Model R86 Radar transmitter ® with PROFIBUS PA Output Table of Contents 1.0 PROFIBUS PA Overview 4.1 Diagnostic Parameters ..........27 1.1 Description ...............4 4.1.1 Diagnostics (Namur NE 107) ......28 1.2 Benefits ..............5 4.1.2 Diagnostic Indication Simulation....29 1.3 Device Configuration..........5 4.1.3 Diagnostic Indicator Table ......30 1.3.1 PROFIBUS DD Revision Table......6 4.1.4 Diagnostic Help ...........32...

  • Page 4: Profibus Pa Overview

    PROFIBUS P ™ Overview Description PROFIBUS PA is a digital communications system that ™ serially interconnects devices in the field. A fieldbus system is similar to a Distributed Control System (DCS) with two exceptions: • PROFIBUS PA is a system that allows the user to ™...

  • Page 5: Benefits

    All PROFIBUS PA ™ devices must be tested for interoperability by a PI accredited, independent testing agency. Magnetrol Model R86PA device certification infor- mation can be found at www.profibus.com. 2. Operation: A PROFIBUS PA ™ system allows for multiple variables to be brought back from each device to the control room for additional trending and reporting.

  • Page 6: Profibus Dd Revision Table

    General PROFIBUS Information: • The Model R86 supports PA Profile Version 3.02 • The Ident Number issued by the PNO for Magnetrol Model R86 is 0x1035. The Ident Number is included in the name of the GSD file. • The General Station Description (GSD) file provides...

  • Page 7: Intrinsic Safety

    Intrinsic Safety The IEC 61158 physical layer supports Intrinsic Safety (IS) applications with bus-powered devices. To accomplish this, an IS barrier or galvanic isolator is placed between the power supply in the safe area and the device in the hazardous area. IEC 61158 also supports the Fieldbus Intrinsically Safe Concept (FISCO) model which allows more field devices in a network.

  • Page 8: Standard Profibus Block Parameters

    2.1.1 Standard PROFIBUS Block Parameters The following are general descriptions of the parameters common to all blocks. Additional information for a given parameter is described later in that specific block section. BLOCK_OBJECT: Contains the characteristics of the block. This object applies to every block and is placed before the first parameter.
  • Page 9 DEVICE_ID: Manufacturer specific identification of the device. DEVICE_SER_NUM: Serial number of the device. DIAGNOSIS: Detailed information about the device, bitwise coded. DIAGNOSIS_EXTENSION: Additional detailed information about the device. DIAGNOSIS_MASK: Definition of supported DIAGNOSIS information-bits. 0 = not supported 1 = supported DIAGNOSIS_MASK_EXTENSION: Definition of sup- ported DIAGNOSIS_EXTENSION information-bits.

  • Page 10: Analog Input Block

    nalog Input Block The ANALOG INPUT (AI) block takes the Transducer Block input data, selected by channel number, and makes it available to other function blocks at its output: 1. Level 6. Volume 2. Distance 7. Flow 3. Echo Strength 8.

  • Page 11: Local Display Of Analog Input Block

    LO_LIM: Value of the lower limit of warnings. LO_LO_LIM: Value of the lower limit of alarms. HI_HI_ALM: State of the upper limit of alarms. HI_ALM: State of the upper limit of warnings. LO_ALM: State of the lower limit of warnings. LO_LO_ALM: State of the lower limit of alarms.

  • Page 12: Ai Out Display Screens

    2.3.2.1 AI Out Display Screens The Analog Input Block Out values can be conditionally displayed as part of the “rotating” home menu screens. A representative example is shown at left. The screens will be formatted as shown with: • Physical Device Tag (Selectable) •...

  • Page 13: Ai Block Configuration

    2.3.3 AI Block Configuration Below are examples of various typical AI Block configurations. Example 1: standard Configuration configuration Tank Height Transducer for transmitter AI Block Output Block + with tank height Bottom Blocking Distance [To PA segment] TH inches or LCD Level PV Scale Lower Value 60 [in / cm]...

  • Page 14: Radar Transducer Block

    Radar Transducer Block The TRANSDUCER block is a custom block containing parameters that support the Model R86PA level transmitter. It contains the radar antenna configuration, diagnostics, and calibration data, and outputs level with status information. The TRANSDUCER block parameters are grouped in a useful configuration, and contain both read-only and read- write parameters.

  • Page 15: Menu Transversal And Data Entry

    Display Question Answer Level What units of measurement will be Units used? _____________ Tank What is the tank height? _____________ Height Antenna What type of antenna is being used? Model Select first 7 digits of Model number. (See nameplate on side of antenna) _____________ Antenna What is maximum nozzle length for...

  • Page 16: Data Selection

    3.2.2 Data Selection This method is used for selecting configuration data from a specific list. UP and DOWN to navigate the menu and highlight the item of interest ➪ ENTER allows modification of that selection UP and DOWN to choose new data selection ➪...

  • Page 17: Entering Numeric Data Using Increment/Decrement

    3.2.4 Entering Numeric Data Using Increment/Decrement Use this method to input the following data into parameters such as Failure Alarm Delay. Push button Keystroke Action Increments the displayed value. If held down the digits scroll until the push button is released. Depending on which screen is being revised, the increment amount may increase by a factor of 10 after the value has been incremented 10 times.

  • Page 18: Password Protection

    3.3 Password Protection The PULSAR Model R86 transmitter has three levels of password protection to restrict access to certain portions of the menu structure that affect the operation of the system. The user password can be changed to any numerical value up to 59999.

  • Page 19: Model R86 Menu: Step-By-Step Procedure

    3.4 Model R86 Menu: Step-By-Step Procedure The following tables provide a complete explanation of the software menus displayed by the PULSAR transmitter. The menu layout is similar between the local Keypad/LCD interface, the DD, and the DTM. Use these tables as a step-by-step guide to configure the transmitter based on the desired measurement type from the following selections: •...
  • Page 20 M IN MENU Pressing any key on the Home Screen will present the Main Menu, consisting of three basic menu labels shown in all capital letters. DEVICE SETUP DI GNOSTICS ME SURED V LUES As shown, the reverse video represents a cursor identifying the selected item, which will appear in reverse video on the LCD.

  • Page 21: Model R86 Configuration Menu: Device Setup

    3.5 Model R86 Configuration Menu — Device Setup Home Screen Main Menu Device Setup Identity Model (read only) Magnetrol S/N (read only) Hardware Rev. (read only) Firmware Rev. (read only) Physical Dev Tag Device Address Date Code (read only) Basic Config...
  • Page 22 Model R86 Configuration Menu — Device Setup Home Screen Main Menu Device Setup Identity Basic Config Volume Config Measurement Type: Level Only Display Config Volume and Level Advanced Config SYSTEM UNITS Factory Config Flow Level Units: Antenna Model: RB1-x 1.5" Horn Inches Dielectric Range: ECHO REJECTION:...
  • Page 23 3.5 Model R86 Configuration Menu — Device Setup Home Screen Main Menu Device Setup Identity Basic Config Flow Config Measurement Type: Display Config Level Only Volume and Level Advanced Config Factory Config SYSTEM UNITS Flow Level Units: Antenna Model: Inches RB1-x 1.5"...
  • Page 24 3.5 Model R86 Configuration Menu — Device Setup Home Screen Main Menu Flow Units: V notch Weir NON-RESET Device Setup Identity V-notch Weir Angle: TOTALIZER: Cubic Ft/Second Basic Config Units: Flow Config Cubic Ft/Minute 22.5° Cubic Ft/Hour 30° Cubic Feet Display Config Gallons/Minute 45°...
  • Page 25 3.5 Model R86 Configuration Menu — Device Setup Home Screen Main Menu Device Setup Identity Basic Config Display Config Language: AI1: Advanced Config English Hide Factory Config French View German Spanish AI2: Russian Hide Portuguese View Physical Dev Tag: AI3: Hide Hide View...
  • Page 26 3.5 Model R86 Configuration Menu — Device Setup Home Screen Main Menu Device Setup Identity Sensitivity: Target Thresh Mode: Basic Config 1 to 255 Automatic Display Config Fixed Value Advanced Config Top Blocking Distance: Factory Config 12 to 120 inches Target Thresh Value: (30 cm to 3 meters) 0-99% (Auto Mode)

  • Page 27: Troubleshooting And Diagnostics

    4.0 Troubleshooting and Diagnostics The PULSAR Model R86 transmitter is designed and engineered for trouble-free operation over a wide range of operating conditions. The transmitter continuously runs a series of internal self-tests and displays helpful messages on the large graphic liquid crystal display (LCD) when atten- tion is required.

  • Page 28: Diagnostics (Namur Ne 107)

    If the Model R86 fails to find a measurable level, the TRANSDUCER BLOCK maintains the last good value as the output and flags the failure. The QUALITY is “Bad,” the SUB_STATUS is “Sensor failure” for no level, and the LIMIT attribute is “Constant.” Refer to Section 4.2 for additional information.

  • Page 29: Diagnostic Indication Simulation

    Refer to the table below for a complete listing of the Model R86 diagnostic indicators, along with their explanations, default categories, and recommended remedies. NOTES: 1) The remedies shown in this table can also be seen on the transmitter LCD by viewing the present status screen when the device is in a diagnostic condition.

  • Page 30: Diagnostic Indicator Table

    Unrecoverable error occurred in stored Failure program. RAM Error Failure RAM (read/write) memory failing. ADC Error Failure Analog-to-digital converter failure. Contact MAGNETROL Technical Support. EEPROM Error Failure Non-volatile parameter storage failing. Analog Board Error Failure Unrecoverable hardware failure. Spare Indicator 1 Reserved for future use.
  • Page 31 4.1.3 Diagnostic Indicator Table Default Priority Indicator Name Explanation Remedy Category High Elec Temp Electronics too hot. May compromise Shield transmitter from heat source or Out of Spec level measurement or damage increase air circulation. Locate instrument. transmitter remotely in a cooler area. Low Elec Temp Electronics too cold.

  • Page 32: Diagnostic Help

    ITEMS from the top level of the DIAGNOSTICS tree. When Present Status is highlighted, the highest MAGNETROL priority active diagnostic indicator (numer- ically lowest in Table 4.1.3) is displayed on the bottom LCD line as shown above. Pressing the ENTER key moves...

  • Page 33: Diagnostic Parameters

    ECHO HISTORY SETUP – The Model R86 contains the unique and powerful feature that allows waveforms to be automatically captured based on Diagnostic Events, Time or both. This menu contains those parameters that configure that feature. Eleven (11) waveforms can be saved directly into the trans- mitter.
  • Page 34 Diagnostic/Condition Process Variables Quality Sub-status Limit ADC Failure All PVs Device Failure Constant limited EEPROM Error All PVs Device Failure Constant limited All PVs except No Fiducial Device Failure Constant limited Elec Temperature All PVs except Too Many Echoes Device Failure Constant limited Elec Temperature All PVs except...

  • Page 35: Profibus Pa Segment Checklist

    4.3 PROFIBUS P Segment Checklist There can be several reasons for a PROFIBUS PA installa- tion to be in a faulty condition. In order to ensure that communication can be established, the following require- ments must be met. • Device supply voltage must be higher than 9 VDC with a maximum of 32 VDC.

  • Page 36: Reference Information

    5.0 Reference Information gency pprovals These devices are in compliance with the RED-directive 2014/53/EU, the EMC directive 2014/30/EU, the PED-directive 2014/68/EU, the ATEX directive 2014/34/EU and RoHS directive 2011/65/EU. Explosion Proof Non- Incendive US/Canada: US/Canada: FM17US0108X / FM17CA0055X FM17US0108X / FM17CA0055X Class I, Div 1, Group B, C, D, T4…T1 Class I, II, III, Div 2, Group A, B, C, D, E, F, G, T4…T1 Class I, Zone 0/1 AEx/Ex ia/db IIB i + H2 T4…T1 Ga/Gb...

  • Page 37: Agency Installation Drawing

    5. The risk of electrostatic discharge shall be minimized at installation, following the direction given in this instruction manual. 6. The Pulsar R86 includes flamepath joints. Consult Magnetrol if repair of flamepath joints is necessary. 7. Temperature class for the process temperature ranges is defined by the following table when “g” (seal option) is “N”:...
  • Page 38 5.1.1 Agency Drawing and Entity Parameters 53XX 58-645 Pulsar® Model R86 Non-Contact Radar Transmitter – PROFIBUS PA Output...

  • Page 39: Model Number

    Model Number 5.2.1 PULSAR Model R86 Radar Transmitter 1–3 | MEASUREMENT SySTEM R 8 6 Through-Air Radar Level Transmitter - 26 GHz Pulse Burst Radar 4 | POwER 24 VDC, Two Wire 4-20 mA with HART fieldbus ™ OUNDATION PROFIBUS PA 6 | SAFETy OPTIONS None (F fieldbus and PROFIBUS only, 5th digit = 2)

  • Page 40: Radar Antenna

    5.2.2 PULSAR Model R86 Radar Antenna 1–2 | TECHNOLOGy PULSAR Radar Antennas - 26 GHz 3 | CONFIGURATION/STyLE ⁄ " Horn (only for installations directly into tanks) 2" Horn (only for installations directly into tanks) 3" Horn (for installation inside tanks or outside of tanks for FCC and Canada) 4"...
  • Page 41 5.2.2 PULSAR Model R86 Radar Antenna 8 | MATERIAL OF CONSTRUCTION - MFG/NUT/ROD/INSULATION 316SS/316L SS Hastelloy C 316SS/316L SS with Carbon Steel Flange Hastelloy C with Carbon Steel Flange 9 | FUTURE None 10 | O-RING MATERIALS/SEAL OPTIONS 11 | ANTENNA EXTENSIONS None For nozzle height 4"...

  • Page 42: Replacement Parts

    Replacement arts CURRENT LOOP Electronics: Digit: Part Number: Serial Number: 7 7 7 7 0 6 7 7 7 See nameplate, always provide complete part number and X = product with a non-standard customer requirement serial number when ordering spares. (1) Electronic Module (6) Housing Cover Digit 5...
  • Page 43 ppendix Level Transducer Block Table Item Parameter Name Parameter Label BLOCK_STRUCTURE BLOCK STRUCT ST_REV Static Revision TAG_DESC Tag Description STRATEGY Strategy ALERT_KEY Alert Key MODE_BLK Block Mode BLOCK_ERR Block Error UPDATE_EVT Update Event BLOCK_ALM Block Alarm TRANSDUCER_DIRECTORY Transducer Directory TRANSDUCER_TYPE Transducer Type XD_ERROR Transducer Error...
  • Page 44 BOTTOM_BLOCKING_DISTANCE Bottom Blocking Distance SAFETY_ZONE_ALARM Safety Zone Alarm SAFETY_ZONE_HEIGHT Safety Zone Height RESET_SAFETY_ZONE_LATCH Reset SZ Latch ECHO_LOSS_DELAY Echo Loss Delay ALARM_DELAY Failure Alarm Delay LEVEL_TRIM Level Trim TARGET_ALGORITHM Target Algorithm TARGET_THRESH_MODE Target Threshold Mode TARG_AUTO_THRESH_VALUE Target Auto Threshold Value TARG_FIXED_THRESH_VALUE Target Fixed Threshold Value BASE_THRESHOLD Base Threshold...
  • Page 45 TVG Divisor FACTORY_PARAMETER_1 Factory Parameter 1 FACTORY_PARAMETER_2 Factory Parameter 2 FACTORY_PARAMETER_3 Factory Parameter 3 FACTORY_PARAMETER_4 Factory Parameter 4 MAGNETROL_SERIAL_NUMBER Magnetrol S/N DATE_CODE Date Code CONFIG_CHANGED_MODE TB Config Chgd Mode RESET_CONFIG_CHANGED Reset Config Changed USER_PASSWORD New User Password LOCAL_DISP_MEAS_VALUES Local Disp Meas Values...
  • Page 46 HIST_ENTRY10 Event History 10 RESET_HISTORY Reset History ECHO_HIST_TRIGGER_MODE Echo Hist Trigger Mode ECHO_HIST_TIME_TRIGGERS Echo Hist Time Triggers ECHO_HIST_EVENT_TRIGGERS Echo Hist Event Triggers ECHO_REJECTION_LOG Echo Rejection ECHO_REFERENCE_LOG Echo Reference ECHO_HISTORY_LOG1 Echo History 1 ECHO_HISTORY_LOG2 Echo History 2 ECHO_HISTORY_LOG3 Echo History 3 ECHO_HISTORY_LOG4 Echo History 4 ECHO_HISTORY_LOG5...
  • Page 47 ECHO_LIST_ENTRY8 Echo List 8 ECHO_LIST_ENTRY9 Echo List 9 ECHO_LIST_ENTRY10 Echo List 10 ECHO_LIST_ENTRY11 Echo List 11 ECHO_LIST_ENTRY12 Echo List 12 ECHO_LIST_ENTRY13 Echo List 13 ECHO_LIST_ENTRY14 Echo List 14 ECHO_LIST_ENTRY15 Echo List 15 Volume Transducer Block Table Item Parameter Name Parameter Label BLOCK_STRUCTURE BLOCK STRUCT ST_REV...
  • Page 48 LEVEL_INPUT_SOURCE Level Input Source VOLUME_TABLE_LENGTH Volume Table Length VOLUME_TABLE_PT_01 Volume Table Pt 01 VOLUME_TABLE_PT_02 Volume Table Pt 02 VOLUME_TABLE_PT_03 Volume Table Pt 03 VOLUME_TABLE_PT_04 Volume Table Pt 04 VOLUME_TABLE_PT_05 Volume Table Pt 05 VOLUME_TABLE_PT_06 Volume Table Pt 06 VOLUME_TABLE_PT_07 Volume Table Pt 07 VOLUME_TABLE_PT_08 Volume Table Pt 08 VOLUME_TABLE_PT_09...
  • Page 49 STATUS_INDICATORS _2 Indicators Group 2 STATUS_INDICATORS _3 Indicators Group 3 STATUS_INDICATORS _4 Indicators Group 4 STATUS_INDICATORS _5 Indicators Group 5 TREND_VOLUME_VALUE Volume 58-645 Pulsar® Model R86 Non-Contact Radar Transmitter – PROFIBUS PA Output...
  • Page 50 NOTES 58-645 Pulsar® Model R86 Non-Contact Radar Transmitter – PROFIBUS PA Output...
  • Page 51 NOTES 58-645 Pulsar® Model R86 Non-Contact Radar Transmitter – PROFIBUS PA Output...
  • Page 52 Service Policy Return aterial Procedure Owners of MAGNETROL may request the return of a So that we may efficiently process any materials that are control or any part of a control for complete rebuilding or returned, it is essential that a “Return Material replacement.
