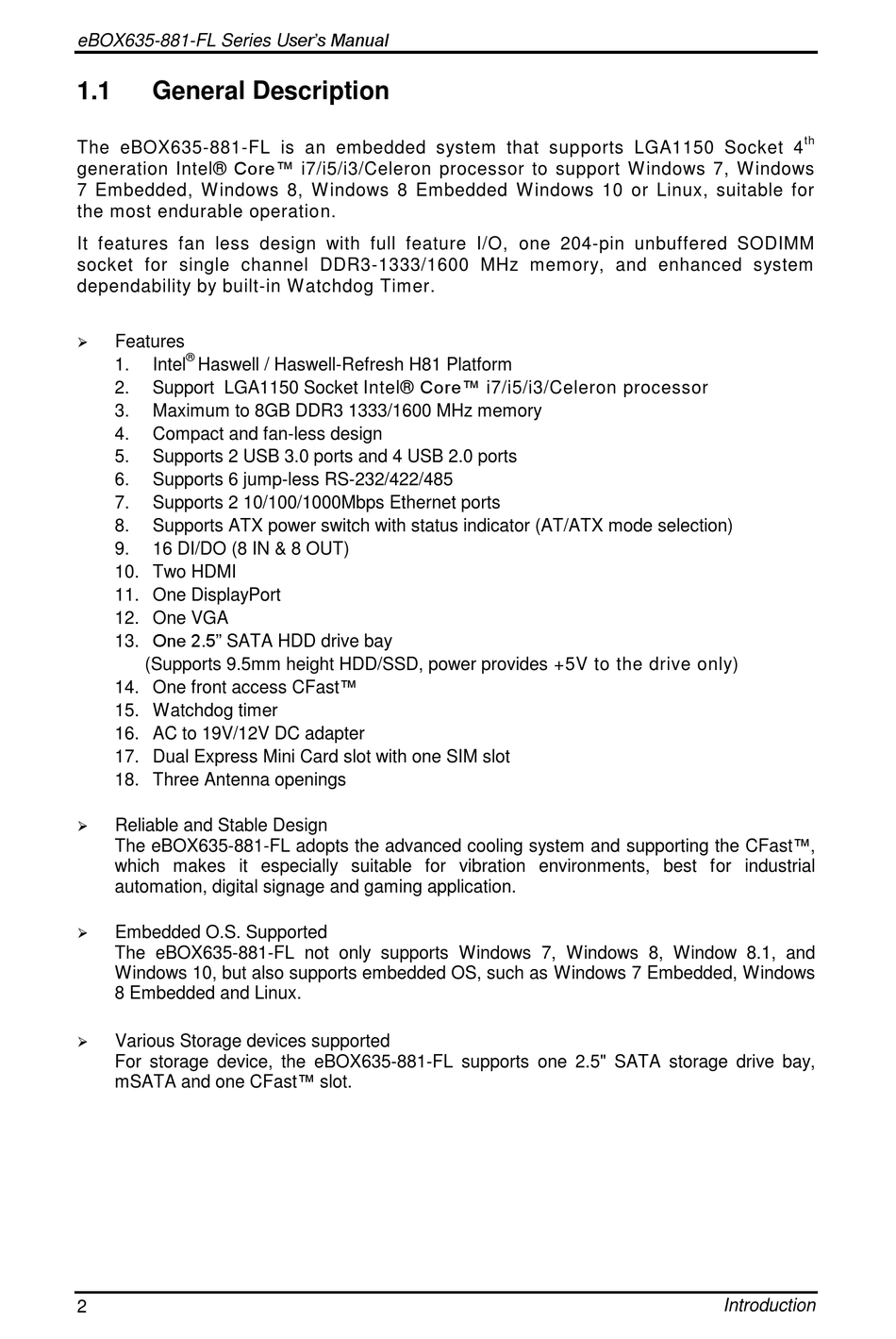

General Description
The eBOX635-881-FL is an embedded system that supports LGA1150 Socket 4
generation Intel® Core™ i7/i5/i3/Celeron processor to support W indows 7, W indows
7 Embedded, W indows 8, W indows 8 Embedded W indows 10 or Linux, suitable for
the most endurable operation.
It features fan less design with full feature I/O, one 204-pin unbuffered SODIMM
socket for single channel DDR3-1333/1600 MHz memory, and enhanced system
dependability by built-in W atchdog Timer.
Features
®
1.
Intel
Haswell / Haswell-Refresh H81 Platform
Support LGA1150 Socket Intel® Core™ i7/i5/i3/Celeron processor
2.
3.
Maximum to 8GB DDR3 1333/1600 MHz memory
4.
Compact and fan-less design
5.
Supports 2 USB 3.0 ports and 4 USB 2.0 ports
6.
Supports 6 jump-less RS-232/422/485
7.
Supports 2 10/100/1000Mbps Ethernet ports
8.
Supports ATX power switch with status indicator (AT/ATX mode selection)
9.
16 DI/DO (8 IN & 8 OUT)
10. Two HDMI
11. One DisplayPort
12. One VGA
13. One 2.5" SATA HDD drive bay
(Supports 9.5mm height HDD/SSD, power provides +5V to the drive only)
14. One front access CFast™
15. Watchdog timer
16. AC to 19V/12V DC adapter
17. Dual Express Mini Card slot with one SIM slot
18. Three Antenna openings
Reliable and Stable Design
The eBOX635-881-FL adopts the advanced cooling system and supporting the CFast™,
which makes it especially suitable for vibration environments, best for industrial
automation, digital signage and gaming application.
Embedded O.S. Supported
The eBOX635-881-FL not only supports Windows 7, Windows 8, Window 8.1, and
Windows 10, but also supports embedded OS, such as Windows 7 Embedded, Windows
8 Embedded and Linux.
Various Storage devices supported
For storage device, the eBOX635-881-FL supports one 2.5" SATA storage drive bay,
mSATA and one CFast™ slot.
