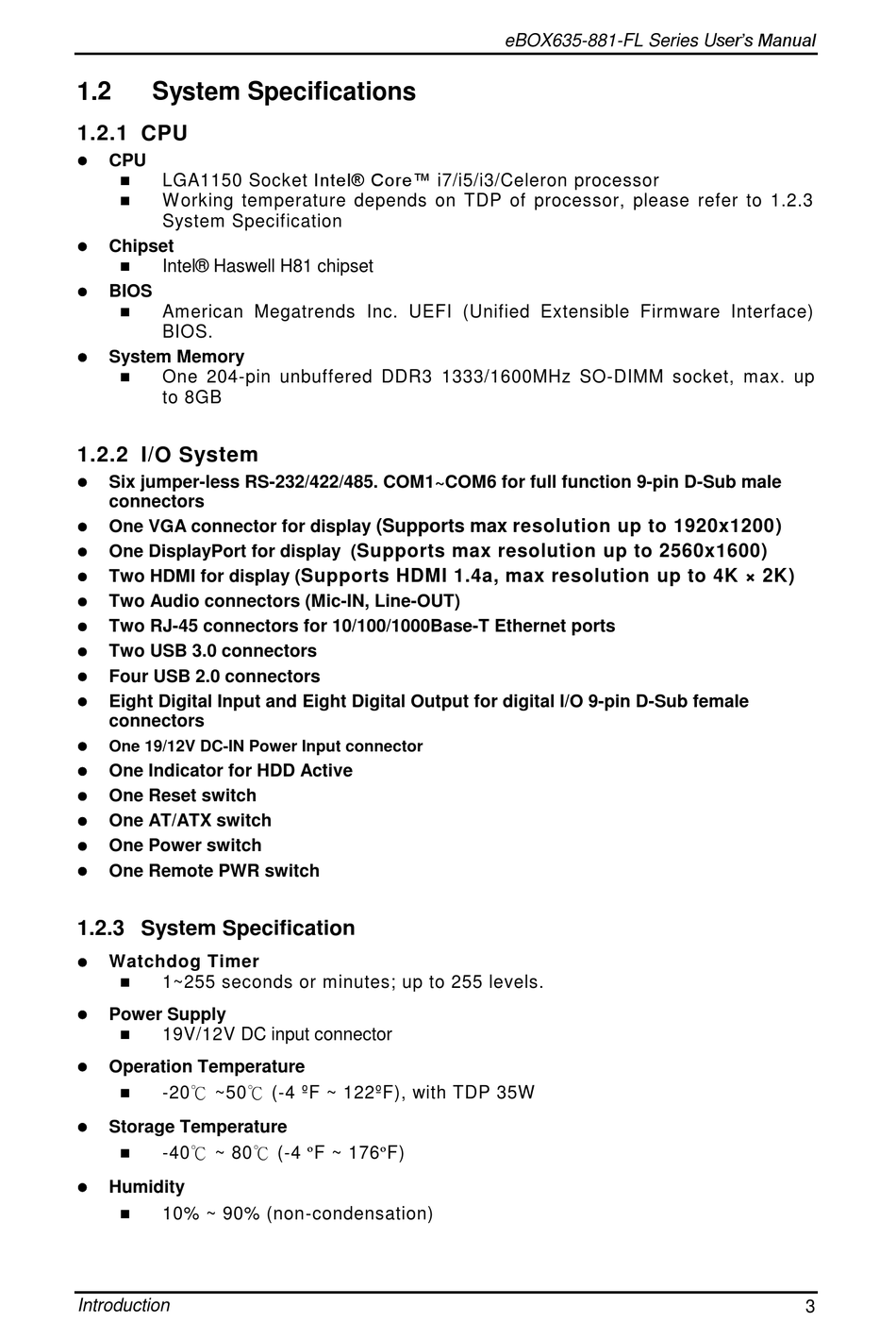

1.2

System Specifications

1.2.1 CPU

 CPU
LGA1150 Socket Intel® Core™ i7/i5/i3/Celeron processor

 W orking temperature depends on TDP of processor, please refer to 1.2.3

System Specification

 Chipset
 Intel® Haswell H81 chipset
 BIOS
 American Megatrends Inc. UEFI (Unified Extensible Firmware Interface)
BIOS.
 System Memory
 One 204-pin unbuffered DDR3 1333/1600MHz SO-DIMM socket, max. up
to 8GB

1.2.2 I/O System


Six jumper-less RS-232/422/485. COM1~COM6 for full function 9-pin D-Sub male
connectors
 One VGA connector for display
 One DisplayPort for display (

Two HDMI for display (
 Two Audio connectors (Mic-IN, Line-OUT)
 Two RJ-45 connectors for 10/100/1000Base-T Ethernet ports

Two USB 3.0 connectors
 Four USB 2.0 connectors
 Eight Digital Input and Eight Digital Output for digital I/O 9-pin D-Sub female
connectors

One 19/12V DC-IN Power Input connector
 One Indicator for HDD Active
 One Reset switch

One AT/ATX switch
 One Power switch
 One Remote PWR switch
1.2.3 System Specification
 Watchdog Timer
 1~255 seconds or minutes; up to 255 levels.
 Power Supply
 19V/12V DC input connector
 Operation Temperature
 -20℃ ~50℃ (-4 ºF ~ 122ºF), with TDP 35W
 Storage Temperature
 -40℃ ~ 80℃ (-4 ºF ~ 176ºF)

Humidity
 10% ~ 90% (non-condensation)
Introduction
(Supports max resolution up to 1920x1200)
Supports max resolution up to 2560x1600)
Supports HDMI 1.4a, max resolution up to 4K × 2K)
