eBOX635-881-FL Series User's Manual

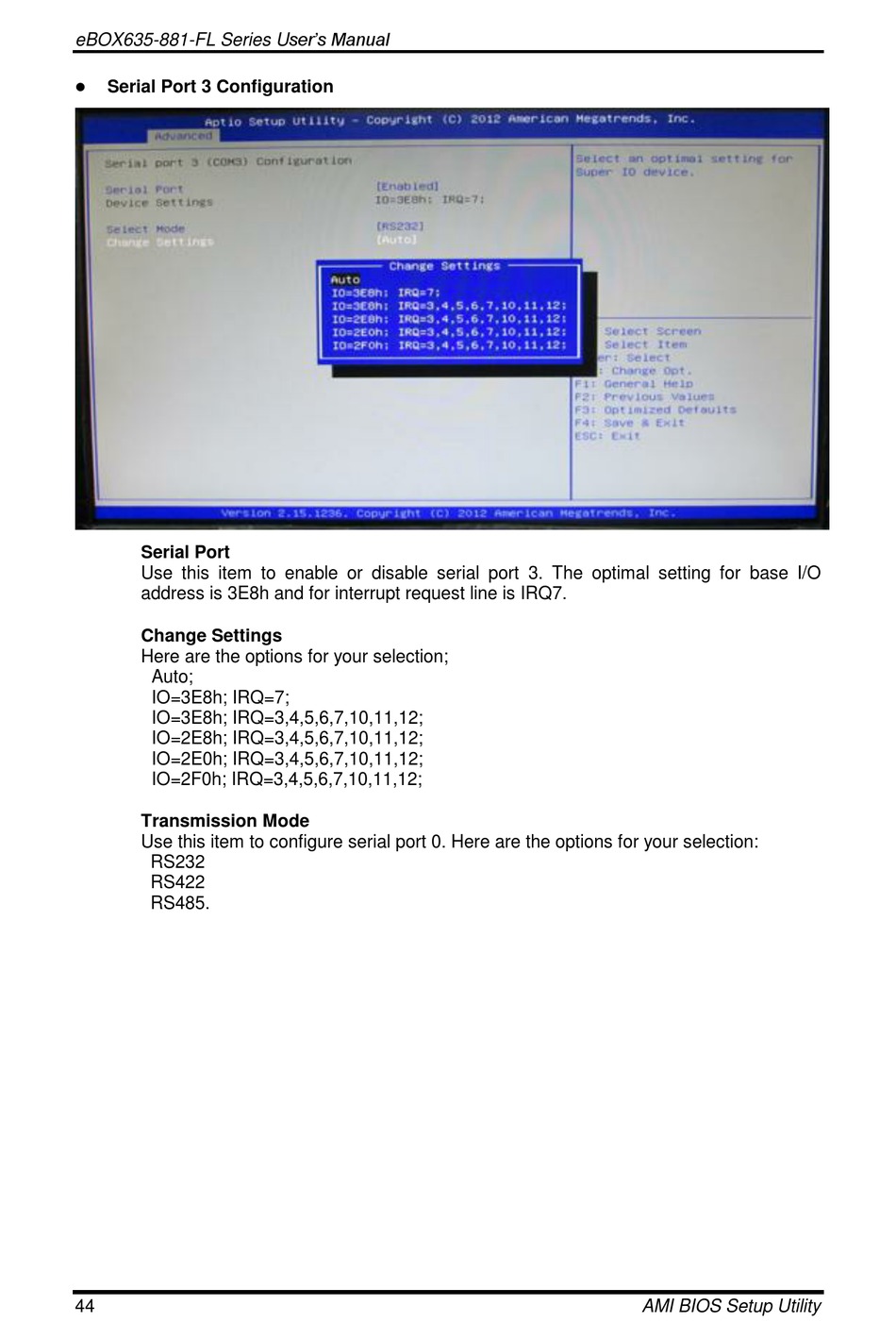

 Serial Port 3 Configuration
Serial Port
Use this item to enable or disable serial port 3. The optimal setting for base I/O
address is 3E8h and for interrupt request line is IRQ7.
Change Settings
Here are the options for your selection;
Auto;
IO=3E8h; IRQ=7;
IO=3E8h; IRQ=3,4,5,6,7,10,11,12;
IO=2E8h; IRQ=3,4,5,6,7,10,11,12;
IO=2E0h; IRQ=3,4,5,6,7,10,11,12;
IO=2F0h; IRQ=3,4,5,6,7,10,11,12;
Transmission Mode
Use this item to configure serial port 0. Here are the options for your selection:
RS232
RS422
RS485.
44 AMI BIOS Setup Utility
