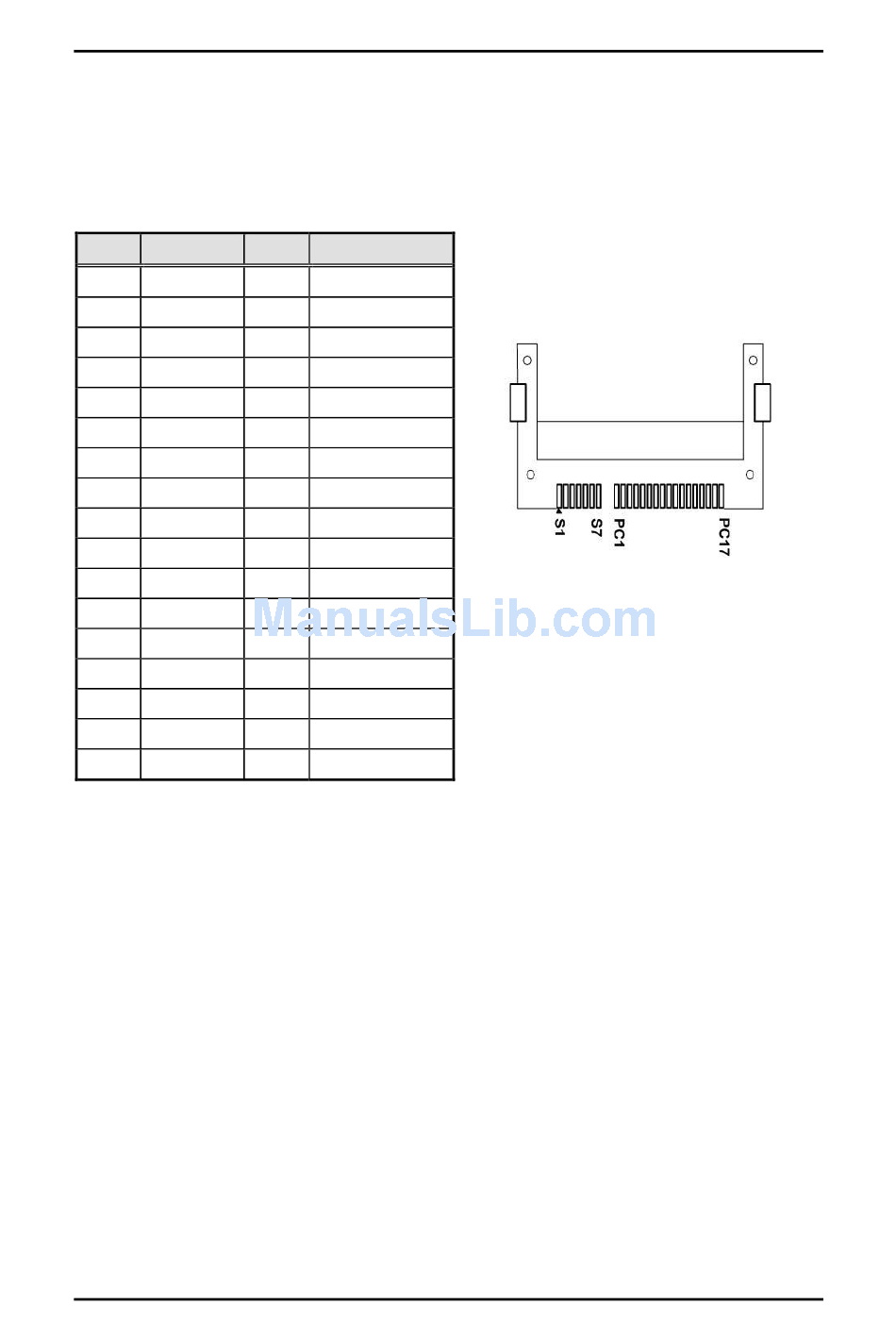

3.2.19 CFast™ Socket
The system is equipped with a CFast™ socket on the bottom side to support a CFast™ card
which is based on the Serial ATA bus. The socket is specially designed to avoid incorrect
installation of the CFast™ card. When installing or removing the CFast™ card, please make
sure the system power is off. The CFast™ card by default identifies itself as C: or D: drive in
your PC system.
Pin Signal
S1 GND
S2 TX+
S3 TX-
S4 GND
S5 RX-
S6 RX+
S7 GND
Jumper Setting & Connectors
Pin Signal
PC1 NC
PC2 GND
PC3 NC
PC4 NC
PC5 NC
PC6 NC
PC7 GND
PC8 NC
PC9 NC
PC10 NC
PC11 NC
PC12 NC
PC13 3.3V
PC14 3.3V
PC15 GND
PC16 GND
PC17 NC
