eBOX635-881-FL Series User's Manual

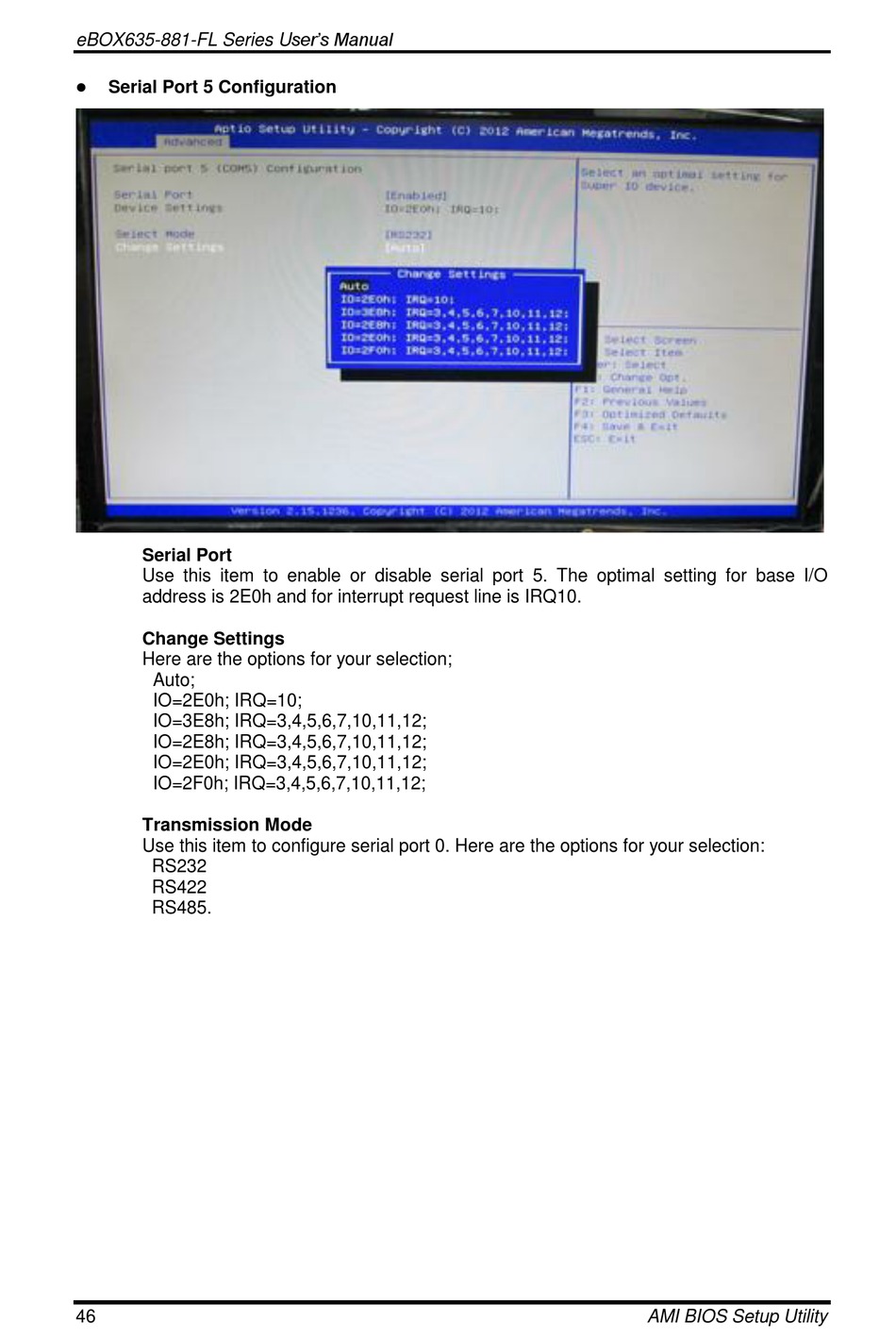

 Serial Port 5 Configuration
Serial Port
Use this item to enable or disable serial port 5. The optimal setting for base I/O
address is 2E0h and for interrupt request line is IRQ10.
Change Settings
Here are the options for your selection;
Auto;
IO=2E0h; IRQ=10;
IO=3E8h; IRQ=3,4,5,6,7,10,11,12;
IO=2E8h; IRQ=3,4,5,6,7,10,11,12;
IO=2E0h; IRQ=3,4,5,6,7,10,11,12;
IO=2F0h; IRQ=3,4,5,6,7,10,11,12;
Transmission Mode
Use this item to configure serial port 0. Here are the options for your selection:
RS232
RS422
RS485.
46 AMI BIOS Setup Utility
