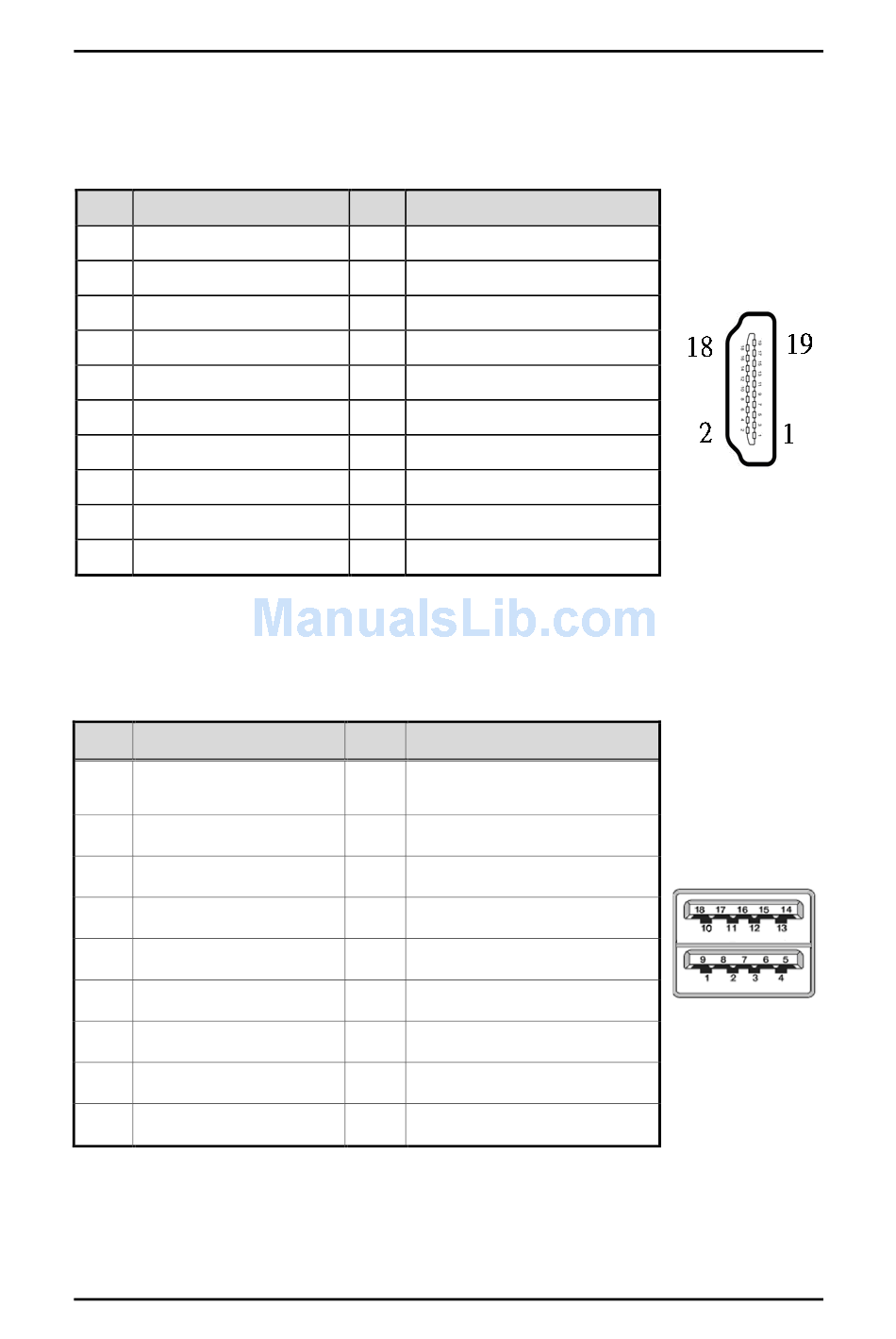

3.2.7 HDMI Connector (SCN6-SCN7)
The HDMI (High-Definition Multimedia Interface) is a compact digital interface which is
capable of transmitting high-definition video and high-resolution audio over a single cable. Its
interface is available through connector SCN6 or SCN7.
Pin
Signal
1
HDMI OUT_DATA2+
GND
2
3
HDMI OUT_DATA2-
4
HDMI OUT_DATA1+
5
GND
6
HDMI OUT_DATA1-
7
HDMI OUT_DATA0+
8
GND
9
HDMI OUT_DATA0-
10
HDMI OUT Clock+
3.2.8 USB 3.0 Connector (SCN10)
The Universal Serial Bus connectors are compliant with USB 3.0 (5Gb/s), and ideally
for installing USB peripherals such as keyboard, mouse, scanner, etc.
Pin
Signal USB Port 0
USB_VCC (+5V level
1
standby power)
2
USB_Data2-
3
USB_Data2+
4
GND
5
SSRX2-
6
SSRX2+
7
GND
8
SSTX2-
9
SSTX2+
Jumper Setting & Connectors
eBOX635-881-FL Series User's Manual
Pin
Signal
11
GND
12
HDMI OUT Clock-
13
N.C.
14
N.C.
15
HDMI OUT_SCL
16
HDMI OUT_SDA
17
GND
18
+5V
19
HDMI_HTPLG
Pin
Signal USB Port 1
USB_VCC (+5V level standby
10
power)
11
USB_Data3-
12
USB_Data3+
13
GND
14
SSRX3-
15
SSRX3+
16
GND
17
SSTX3-
18
SSTX3+
27
