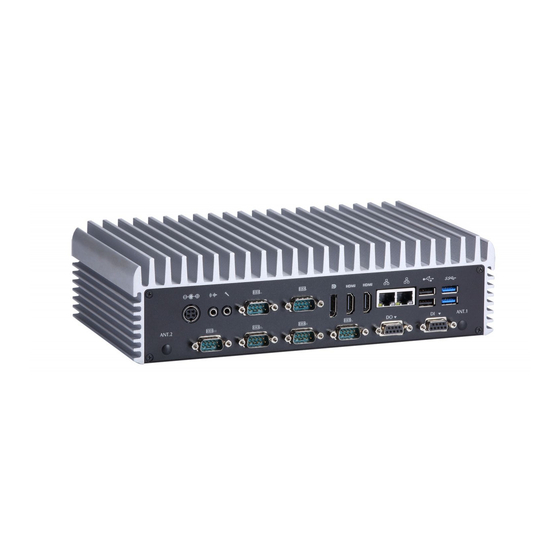

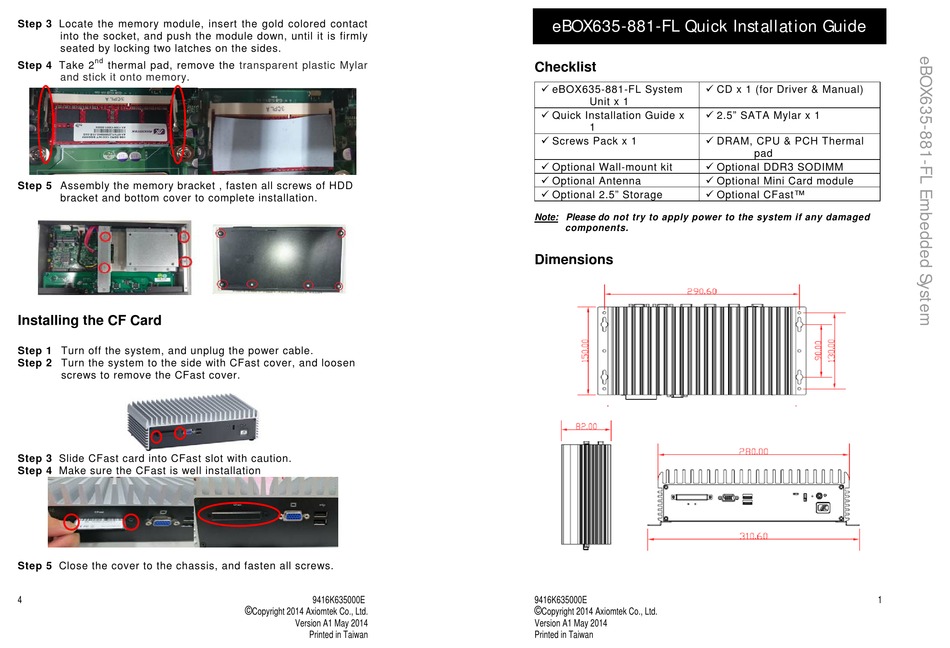

AXIOMTEK eBOX635-881-FL Quick Installation Manual

Step 3 Locate the memory module, insert the gold colored contact
into the socket, and push the module down, until it is firmly
seated by locking two latches on the sides.
nd
Step 4 Take 2 thermal pad, remove the
and stick it onto memory.
Step 5 Assembly the memory bracket , fasten all screws of HDD
bracket and bottom cover to complete installation.
Installing the CF Card
Step 1 Turn off the system, and unplug the power cable.
Step 2 Turn the system to the side with CFast cover, and loosen
screws to remove the CFast cover.
Step 3 Slide CFast card into CFast slot with caution.
Step 4 Make sure the CFast is well installation
Step 5 Close the cover to the chassis, and fasten all screws.
4
transparent plastic Mylar
9416K635000E
©
Copyright 2014 Axiomtek Co., Ltd.
Version A1 May 2014
Printed in Taiwan
eBOX635-881-FL Quick Installation Guide
Checklist
 eBOX635-881-FL System  CD x 1 (for Driver & Manual)
Unit x 1
 Quick Installation Guide x  2.5" SATA Mylar x 1
1
 Screws Pack x 1  DRAM, CPU & PCH Thermal
 Optional Wall-mount kit  Optional DDR3 SODIMM
 Optional Antenna  Optional Mini Card module
 Optional 2.5" Storage  Optional CFast™
Note: Please do not try to apply power to the system if any damaged
components.
Dimensions
9416K635000E
©
Copyright 2014 Axiomtek Co., Ltd.
Version A1 May 2014
Printed in Taiwan
pad
1
