1.4

I/O Outlets

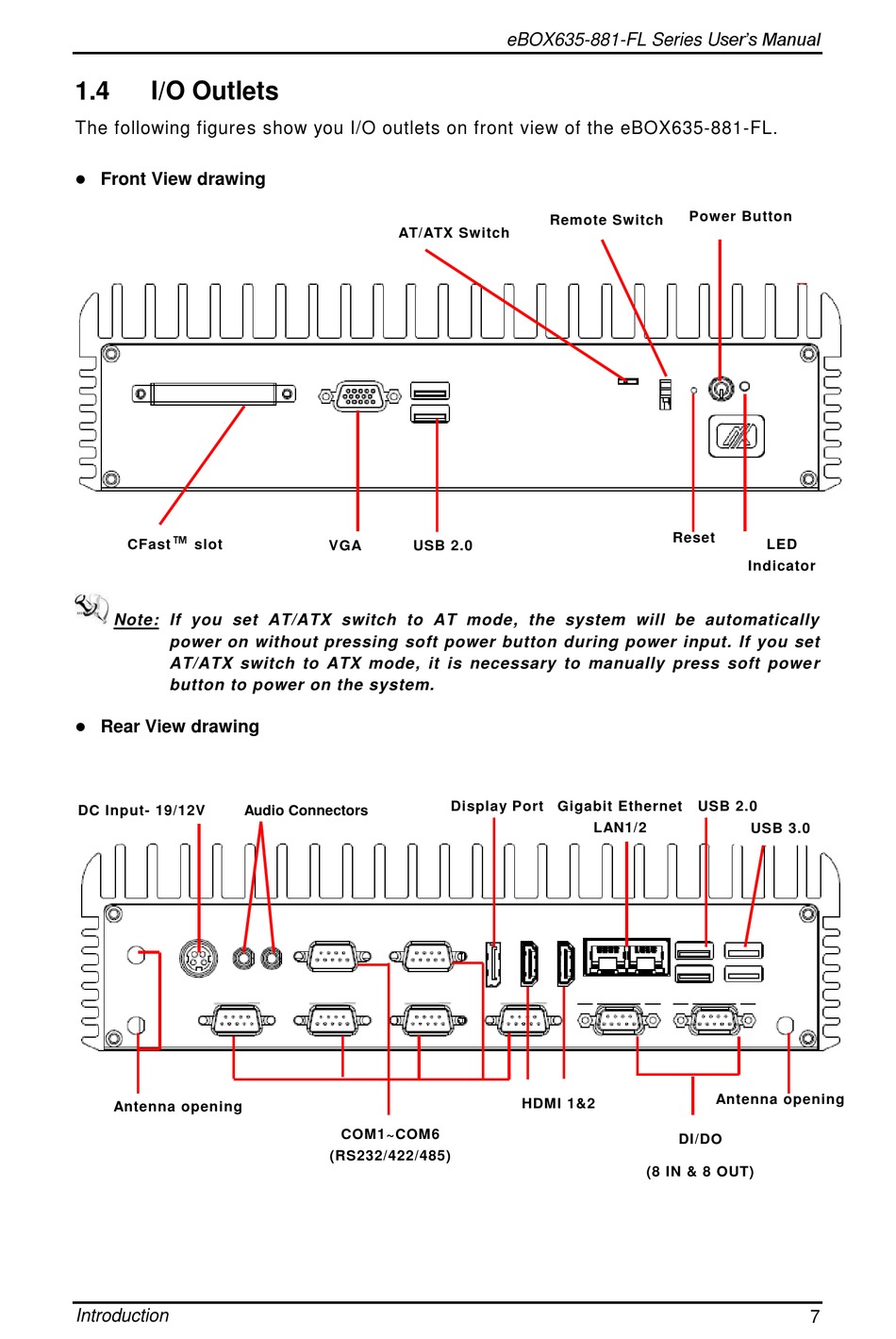

The following figures show you I/O outlets on front view of the eBOX635-881-FL.
 Front View drawing
™
CFast slot
Note: If you set AT/ATX switch to AT mode, the system will be automatically
power on without pressing soft power button during power input. If you set
AT/ATX switch to ATX mode, it is necessary to manually press soft powe r
button to power on the system.

Rear View drawing
DC Input- 19/12V Audio Connectors
Antenna opening
Introduction
AT/ATX Switch
VGA USB 2.0
(Mic-IN, Line-
OUT)
COM1~COM6
(RS232/422/485)
eBOX635-881-FL Series User's Manual
Remote Switch
Display Port Gigabit Ethernet
LAN1/2
HDMI 1&2
Power Button
Reset
LED
Indicator
HDD State
USB 2.0
USB 3.0
Antenna opening
DI/DO
(8 IN & 8 OUT)
7
