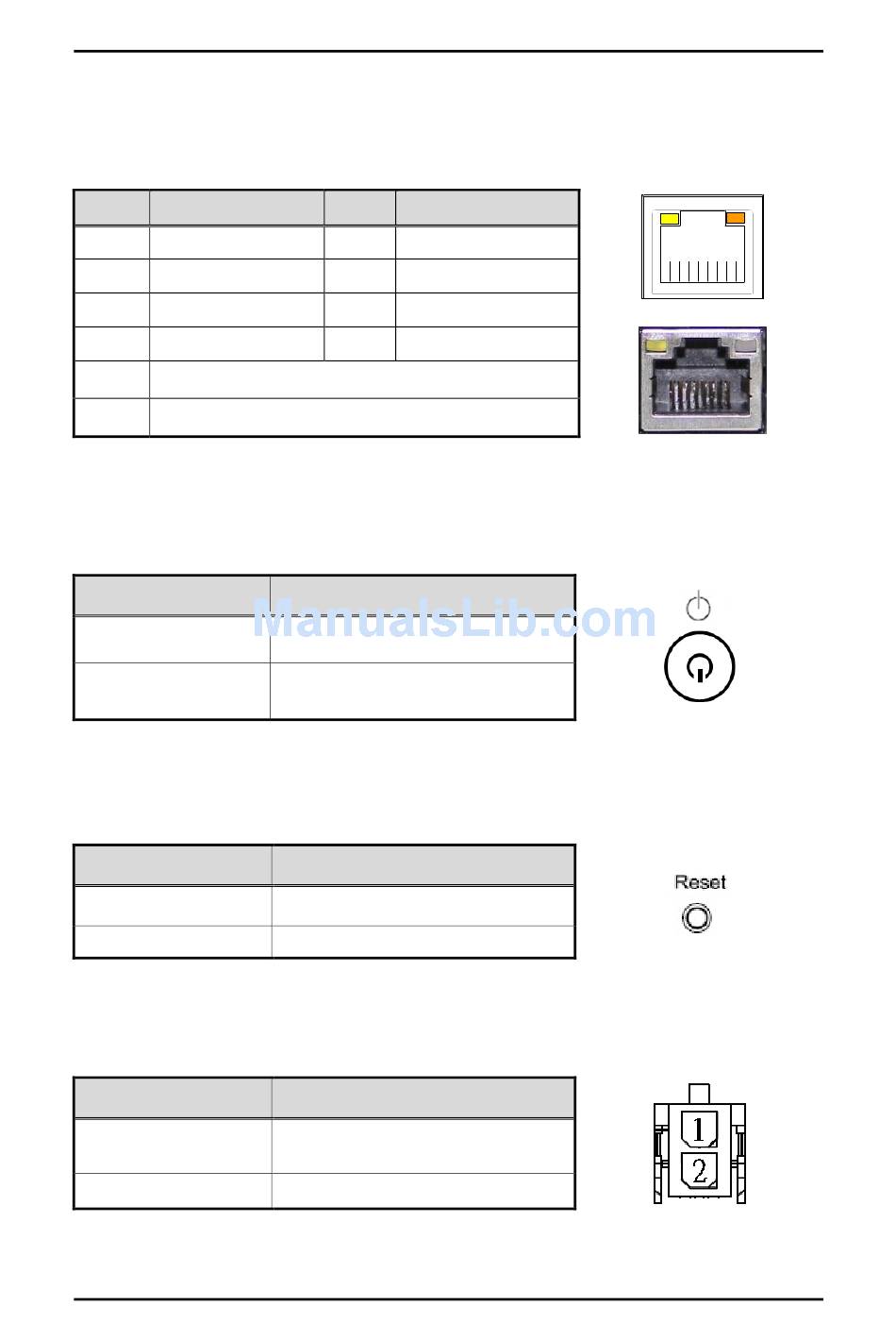

3.2.12 Ethernet Connector (LAN1~LAN2)

The RJ-45 connector is for Ethernet. To connect the board to a 1000/100/10 Base-T hub, just
plug one end of the cable into connector and connect the other end (phone jack) to a
1000/100/10-Base-T hub.
Pin Signal
L1 MDI0+
L2 MDI0-
L3 MDI1+
L4 MDI2+
A Active LED (Yellow)
B 100 LAN LED (Green)/ 1000 LAN LED (Orange)

3.2.13 ATX Power On/OFF Button

The ATX power button is on the I/O side. It can allow users to control eBOX635-881-
FL power on/off.
Function
On
Off

3.2.14 Reset Button

The Reset button can allow users to reset eBOX635-881-FL.
Function
On
Off

3.2.15 Remote Power Switch Connector (SPWRBT1)

One 2-pin connector output for remote power on/off switch.
Function
Short(1-2)
Open
Jumper Setting & Connectors
eBOX635-881-FL Series User's Manual
Pin Signal
L5 MDI2-
L6
MDI1-
L7 MDI3+
L8 MDI3-
Description
Turn on/off system
Keep system status
Description
Reset system
Keep system status
Description
Turn on/off system
Keep system status
A B
L8 L7 L6 L5 L4 L3 L2 L1
A B
