Eclipse Instructions for Use - US

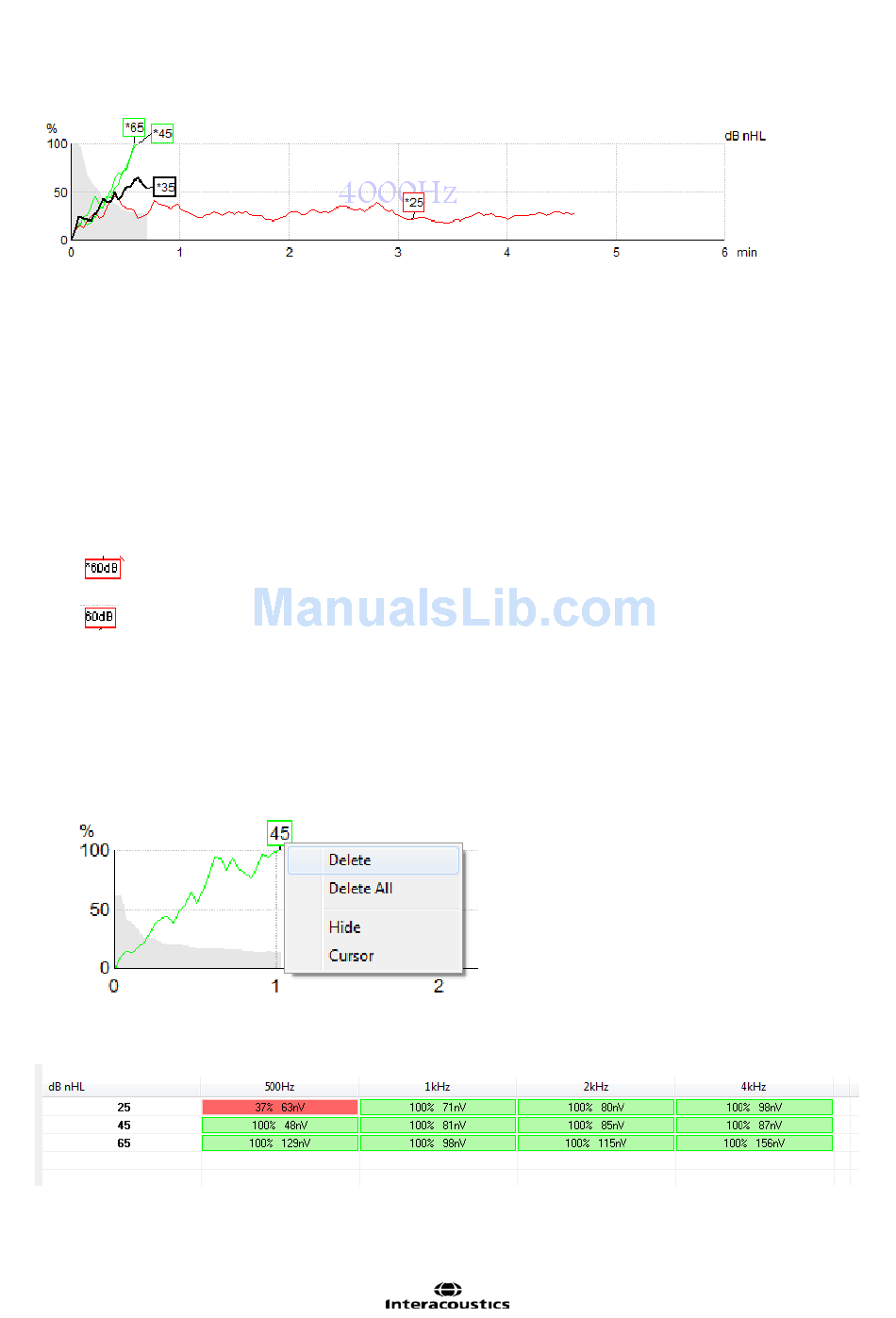

6.7.4 Test Frequency Graph

The graph shows an indication of the ongoing or completed results for the specified stimuli.
1. The grey area behind the detection curves indicates the residual noise level for the selected curve.
Exact values are displayed in the ASSR table below the graphs.
2. A black detection curve indicates an ongoing recording.
3. A green detection curve indicates that detection at the specified level has been detected.
4. A red detection curve is displayed when a test has timed out and has not reached 100% detection
or has been stopped prior to reaching detection or test time limits.
5. The curve handle indicates the testing intensity and stimulus rate. An asterisk (*) in front of the
stimulus level indicates a 40Hz stimulus rate was used.
Select a detection curve by clicking on the handle. The selected curve handle will be presented in bold.
The detection curve handle indicates the stimulus intensity and the stimulation rate (40 or 90Hz). When the
40Hz stimulus rate is used, an asterisk (*) is displayed before the intensity value.
40Hz:
90Hz:
Right click on a curve handle for the following oGBions:
1. Delete the selected curve.
2. Delete all detection curves for the selected frequency.
3. Hide the selected curve. The curve handle will remain on screen to indicate it has been tested and
is available to be un-hidden.
4. Cursor brings forward a cursor that will track with the curve and provide numerical information for
the probability percentage and time at any point of the curve.

6.7.5 ASSR Table
