Eclipse Instructions for Use - US

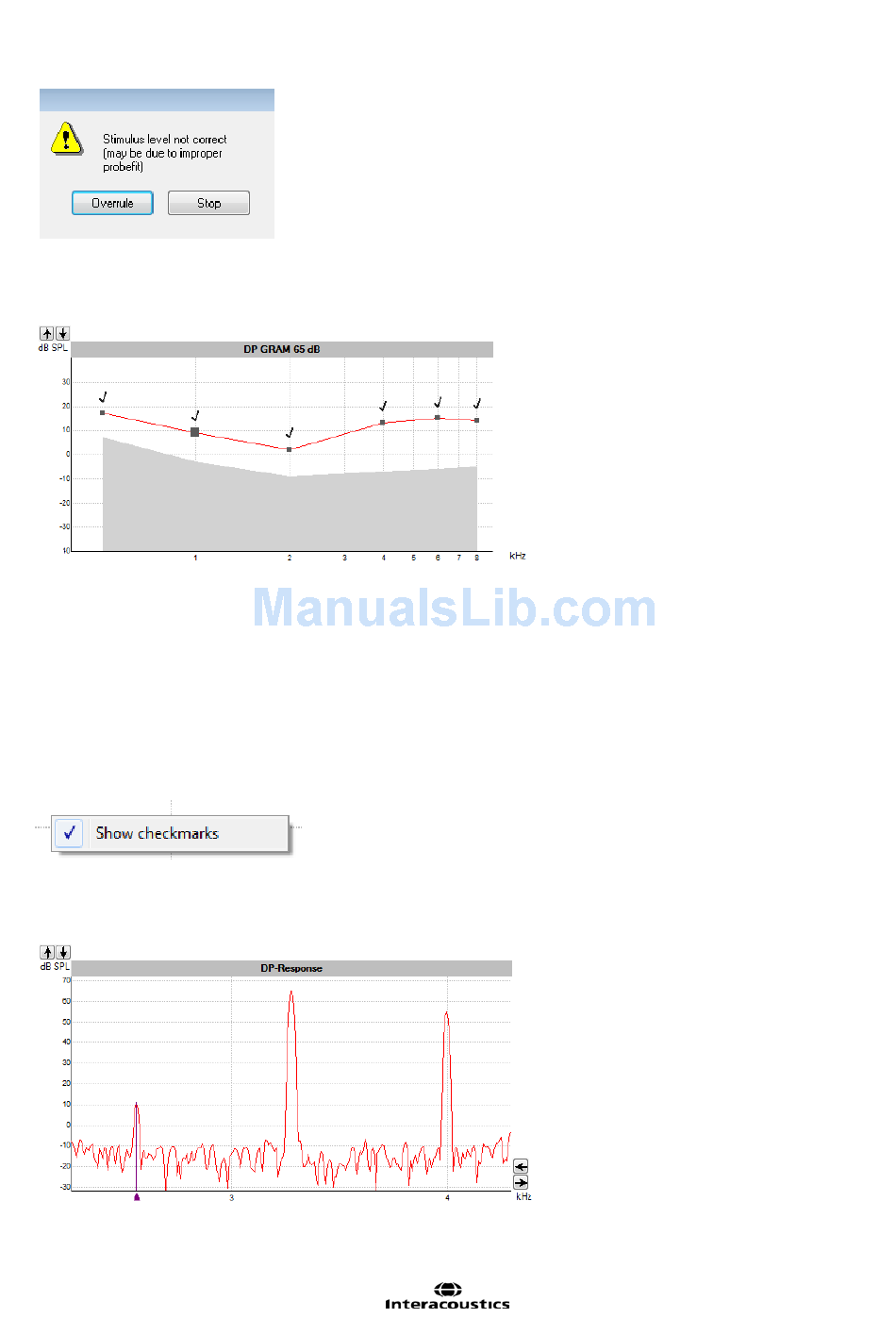

5.6.5 DPOAE Graph
The DPOAE Graph displays either a DP-Gram or DP I/O graph, depending on the test protocol.
A checkmark a test point indicates that the individual measurement has met its specified criteria.
The statistical significance of the detected result is dependent upon a combination of the following user
defined settings in the protocol setup: Test time, Stimulus levels, SNR, Min DP level, DP stability and the
Reliability.
Select an individual point on the DPOAE Graph using the mouse to display the corresponding DP-
Response in the DP-Response graph.
Right click on the DPOAE Graph for the option to remove the checkmarks from the test points in the current
session.
Change the display gain using the up and down arrows above the graph.
5.6.6 DP- Response Graph
Page 75
