Eclipse Instructions for Use - US

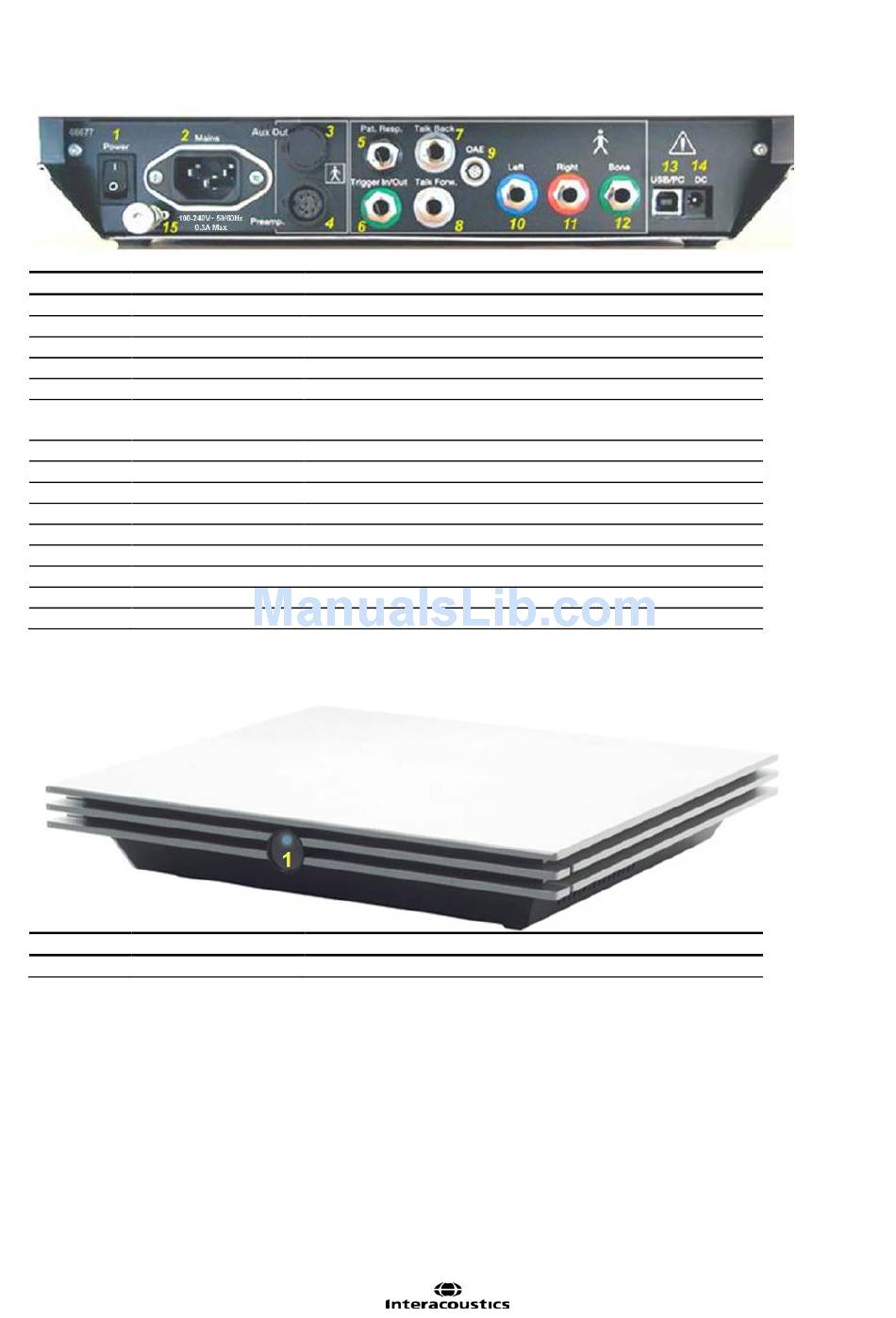

2.4.2 Eclipse Back Panel

Position: Symbol:
1 Power
2 Mains 50-60 Hz
3 Aux Out
4 Preamp.
5 Pat. Resp.
6 Trigger In/Out
7 Talk Back
8 Talk Forward
9 OAE
10 Left
11 Right
12 Bone
13 USB/PC
14 DC
15

2.4.3 Eclipse Front Panel

Position: Symbol:
1 Power indication
Function:
Turns power on/off
Plug for mains cable
For future use
Plug for Preamplifier
Plug for patient response button
Connector for trigger input/output
E.g. eABR (cochlear implant) testing etc.
Connector for talk back microphone
Connector for talk forward microphone
Plug for the eight pin OAE probe
Plug for left headphone/insert
Plug for right headphone/insert
Plug for bone conductor
Plug for USB cable to connect to PC
Plug for power supply for an optical USB
Connection for equipotentiality
Function:
Power on – blue light. Power off - no light.
Page 11
