3.2.1 Monitoring Rejection

Continue to monitor the rejection situation by observing the small oval light at the bottom of the screen.
Green indicates no rejection, while red indicates rejection.

3.2.2 Placing Waveform Markers

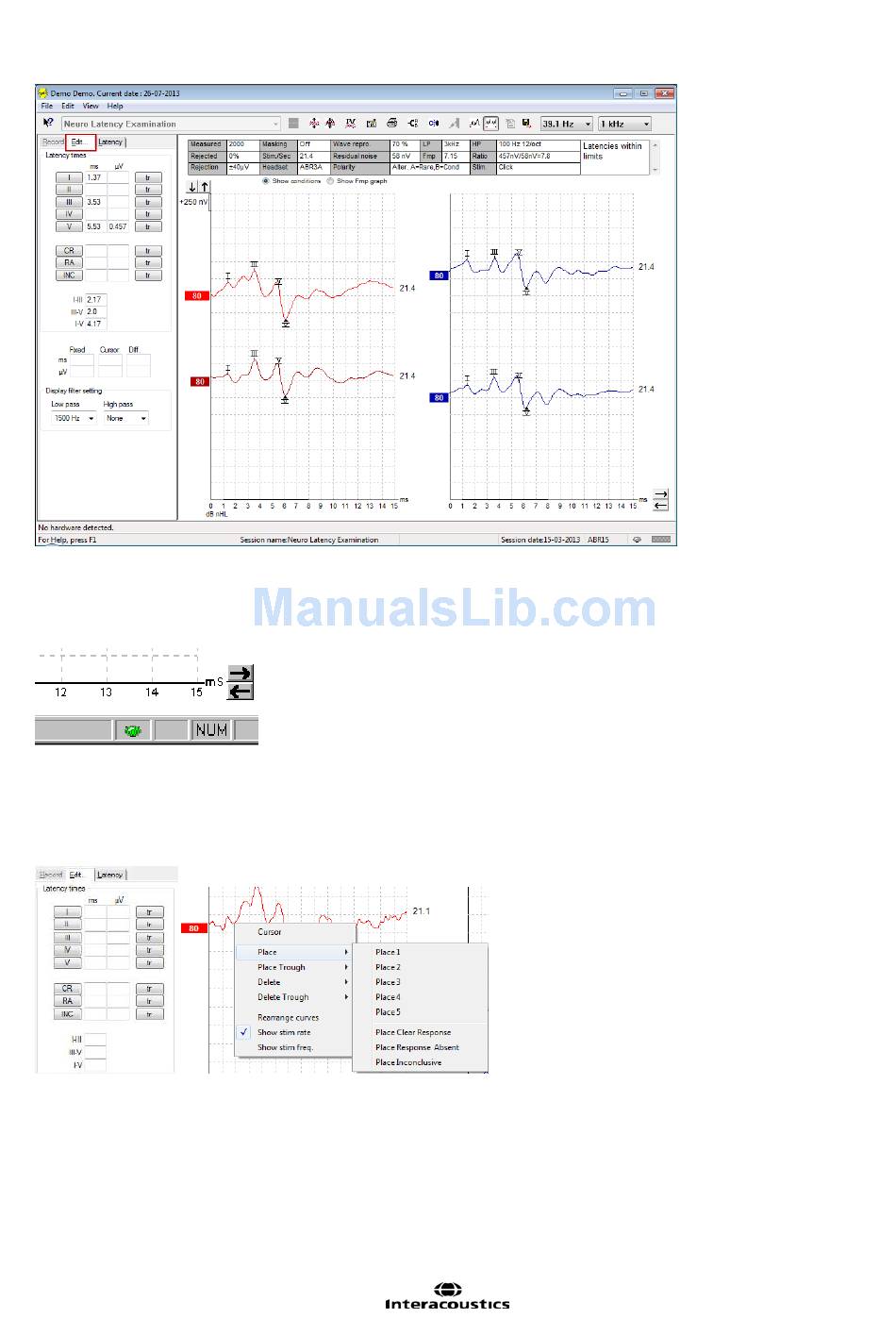

The marker buttons will display the relevant markers for the test type selected. Only completed waveforms
can be marked. The waveform must be selected (double click on the waveform handle) prior to placing
waveform markers.
Waveforms can be marked in three different ways:
1. Click on the marker button (e.g., I, II, III, IV, V) and then click on the curve where you want to place the
marker.
2. Press the marker number (e.g., 1, 2, 3, 4, 5) on the keyboard, then use the arrow keys, Ctrl + arrow
keys, or the mouse to move the cursor to the desired position. Press the enter button or left click with the
mouse to place the marker. Using the Ctrl + arrow keys will move the cursor from peak to peak.
3. Right click on the waveform to select and place markers.
