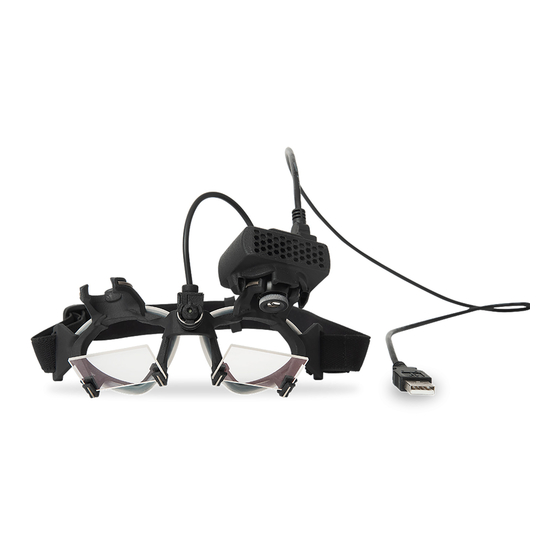

Summary of Contents for Interacoustics EyeSeeCam vHIT

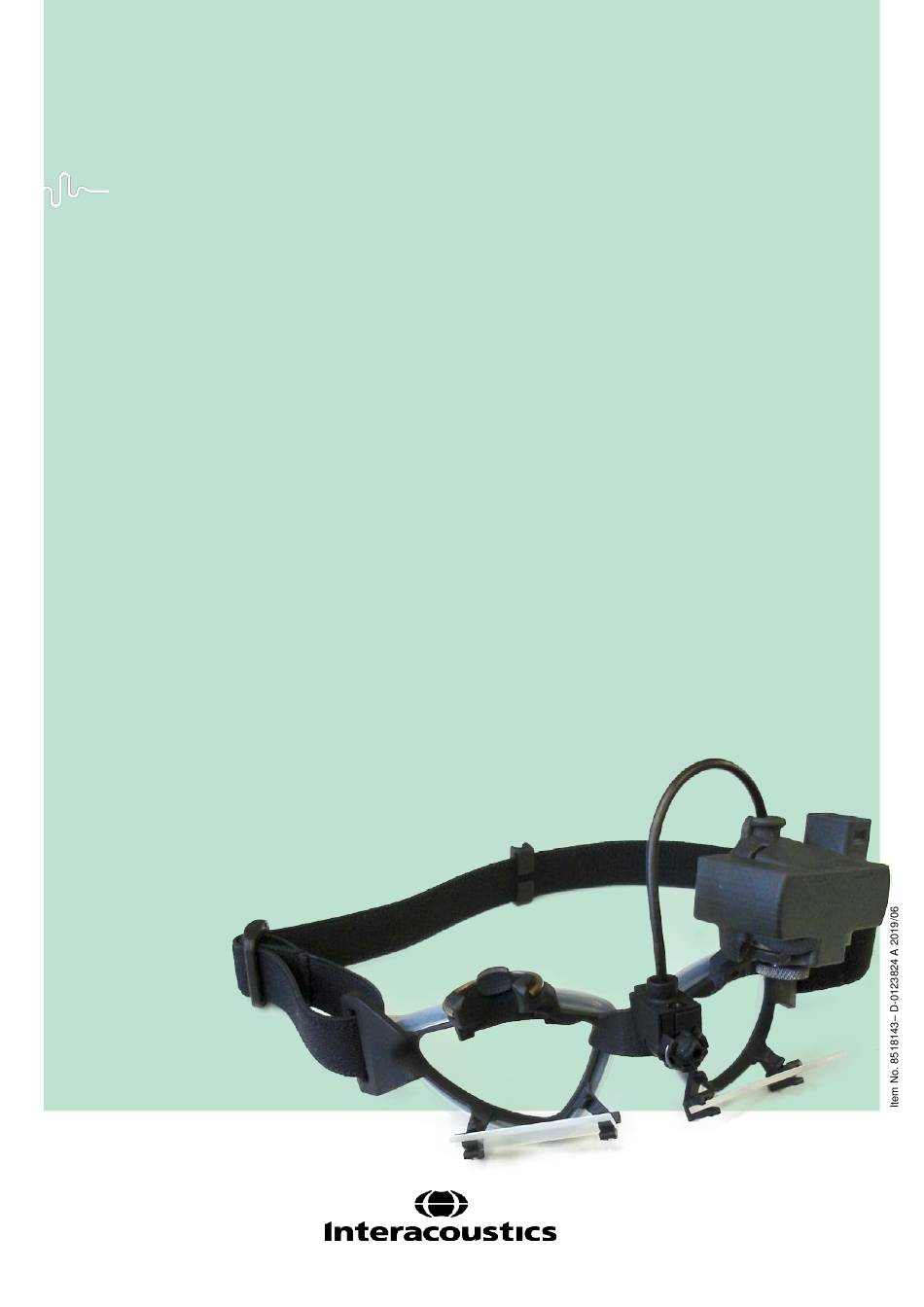

- Page 1 Service manual EyeSeeCam vHIT Science made smarter Service manual EyeSeeCam vHIT...
-
Page 2: Table Of Contents
Hardware setup ..........................11 OtoAccess™ setup ........................12 3.4.1 OtoAccess™ Help .......................... 14 Uninstalling the EyeSeeCam vHIT ....................14 Appendix A - Technical specifications ........................ i Appendix B - Parts & accessories ........................ii Appendix C - Exploded view ..........................iii... -
Page 3: Introduction
Copyright © by Interacoustics. All rights reserved. Information in this document is subject to change without notice. Companies, names, and data used in example herein are fictitious unless otherwise noted. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without express written... -
Page 4: Maintenance And Replacing Parts
Service manual EyeSeeCam vHIT Maintenance and replacing parts Make sure the device is disconnected from the power supply before starting this procedure. Maintenance If the surface of the goggle is contaminated, it is cleaned with a soft cloth moistened with a mild solution of water and dish washing liquid or similar. -
Page 5: Replacing Parts
With the purpose of enabling replacement of certain parts of the EyeSeeCam google, this chapter contains a disassembly guide for EyeSeeCam vHIT. Disassembly should always be conducted by a technician authorized by Interacoustics. NOTICE Due to the fragility of the camera parts, disassembly TOOLS must be performed with utmost caution. -
Page 6: The Mirrors
Service manual EyeSeeCam vHIT 2.2.2 The mirrors In case one of the hot mirrors is broken, exchange the mirror immediately, as there otherwise is danger that a user will be hurt. New mirrors are available as spare parts (see Appendix B - Parts &... -
Page 7: The Goggle Frame
Service manual EyeSeeCam vHIT 2.2.3 The goggle frame In case the goggle frame is broken, the frame is exchanged. The plastic frame is available as a spare part (see Appendix B - Parts & Accessories). Purchasing new springs, hot mirrors, or silicone tubes is not necessary, as these parts can be taken from the broken frame and used on the new one. -
Page 8: The Laser Clip
Service manual EyeSeeCam vHIT 2.2.5 The laser clip demonstration purposes, In case the small lug on the laser casing is broken or damaged, there are two we have removed ways to fix it. the cable from the clip. The easiest is to return the camera to Service and have the laser casing replaced... -
Page 9: The Fan Filter
Service manual EyeSeeCam vHIT 2.2.6 The fan filter This paragraph applies to EyeSeeCam models with integrated fan, only. During time, the fan filter may clog. It is possible to clean the fan filter or exchange the filter cover. The latter is available as spare part (see Appendix B - Parts &... -
Page 10: Troubleshooting
Service manual EyeSeeCam vHIT Troubleshooting 2.3.1 Connection problems Connection problems, such as an undetected camera, could be caused by a broken USB cable. If a loose contact is encountered, the cable must be exchanged. Test out a different cable and check whether the error(s) persist. -
Page 11: Installation Of Software
(32 & 64 bit) The EyeSeeCam vHIT camera is only to be connected to a USB 2.0 port. In case the computer has USB 3.0 ports only, the USB 3.0 controller must be disabled for the ports to work in USB 2.0 mode. -
Page 12: Otoaccess™ Setup
EyeSeeCam vHIT OtoAccess™ setup For some of our instruments, the OtoAccess Legacy program must be installed before it’s possible to open the OtoAccess™ database. This is the case for EyeSeeCam vHIT. Simply, click EyeSeeCam, and then hit Install. It is possible to check more or all the options and install them in one go. - Page 13 Service manual EyeSeeCam vHIT With OtoAccess™ running, click Setup in the upper left corner, and then Module settings. Figure 29 From Settings, it is possible to pick the relevant software modules for the gallery bar in the OtoAccess main screen.
-
Page 14: Otoaccess™ Help
Service manual EyeSeeCam vHIT This is what the gallery bar in Modules looks like with its added modules. Figure 31 3.4.1 OtoAccess™ Help ™ OtoAccess enables you to easily backup, restore your data and much more. The User guide in the Help function includes information on many of these actions.. - Page 15 Service manual EyeSeeCam vHIT Uninstalling the EyeSeeCam vHIT To remove EyeSeeCam from the computer, follow the general procedure via the Windows system settings. Figure 33 To remove EyeSeeCam from the OtoAccess gallery bar, go to the Settings window via Setup.
-
Page 16: Appendix A - Technical Specifications
Appendix A - Technical specifications Medical CE marking: The CE mark indicates that Interacoustics A/S meets the requirements of Annex II of the Medical Device Directive 93/42/EEC. Approval of the quality system is conducted by TÜV - identification no. 0123. -
Page 17: Appendix B - Parts & Accessories
Service manual EyeSeeCam vHIT Appendix B - Parts & accessories SPARE PARTS PART NUMBER DESCRIPTION 8508166 Camera EyeSeeCam vHIT 8106164 vHIT goggle frame 8107990 Headband with stopper 8107991 Springs (6 pcs) 8106292 vHIT silicone rubber tubes (2 pcs) 8106293 vHIT IR mirror set (2 pcs) -
Page 18: Appendix C - Exploded View
Service manual EyeSeeCam vHIT Appendix C - Exploded view... -
Page 19: Appendix D - Revision History
Service manual EyeSeeCam vHIT Appendix D - Revision history The following modifications have been made to the instrument and/or the manual: DATE ACTION REMARKS 2019/06 Release of service manual...
