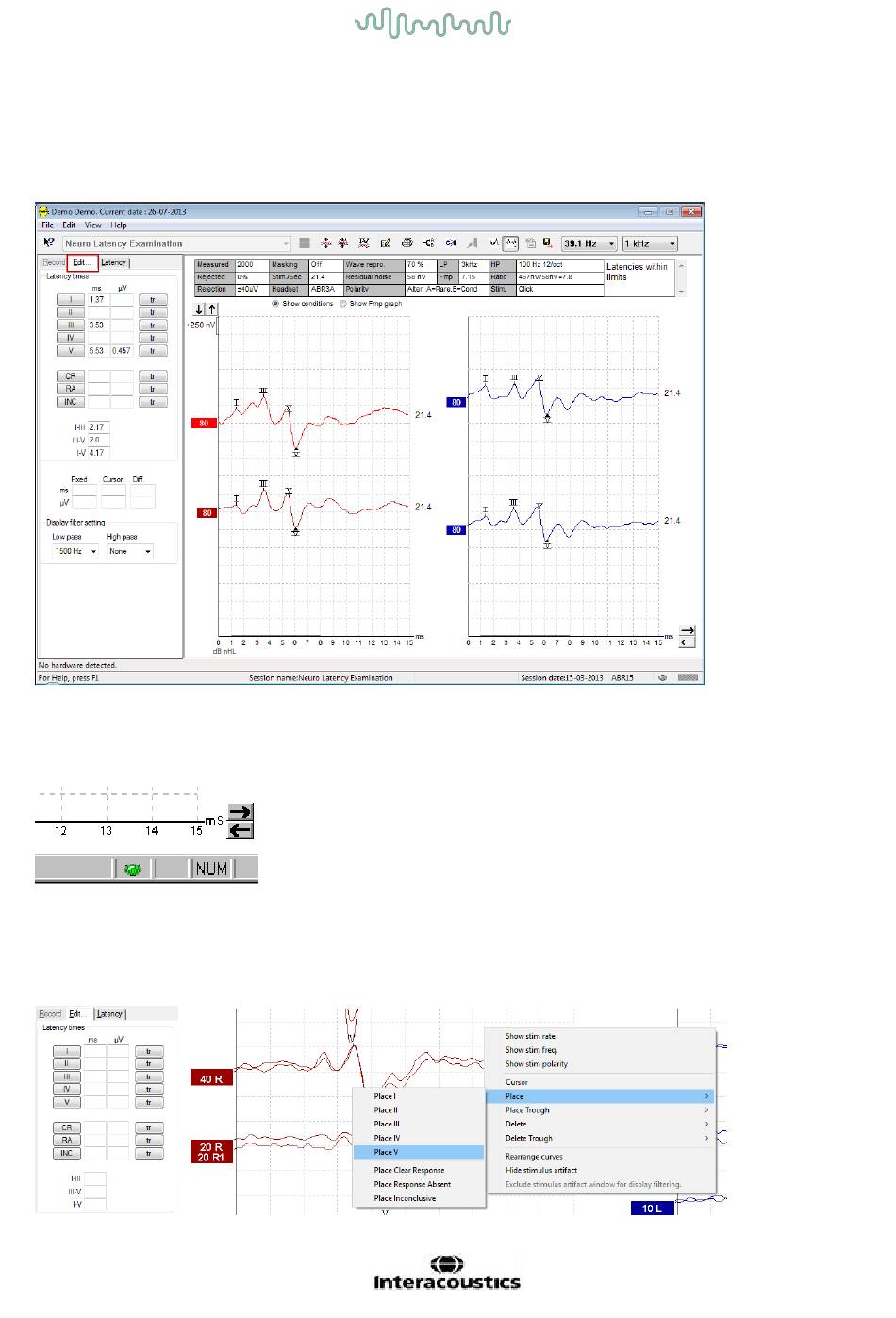

The edit tab

The following section describes the elements of the Edit Tab.
Completed waveforms can be edited while another measurement is in progress or after the entire test has
finished. Functions available on both the Record Tab and the Edit Tab, have been described in the previous
section.

3.1.37 Monitoring rejection

Continue to monitor the rejection situation by observing the small oval light at the bottom of the screen.
Green indicates no rejection, while red indicates rejection.

3.1.38 Placing waveform markers

The marker buttons will display the relevant markers for the test type selected. Only completed waveforms
can be marked. The waveform must be selected (double click on the waveform handle) prior to placing
waveform markers.
